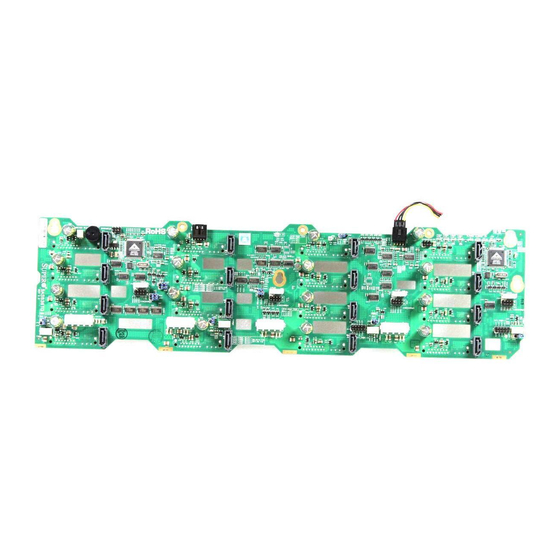

SAS-836TQ Backplane
USER'S GUIDE
+
1
1
JP84
JP25
1
D70
C285
+
+
R170
U34
R169
C139
C245
C121
D69
C122
D66
I2C#3
JP52
C84
+
C85
+
JP47
C79
C80
D64
F9
ON:WITH FAN
OFF:NO FAN
Rev. 1.0c
+
FAN#1
FAN#2
FAN#3
FAIL
FAIL
FAIL
C
UPGRADE#1
A
C
A
1
C45
J16
C5
I2C#2
JP95
J14
1
C44
+
D61
C29
F3
JP63
J12
C3
ACT12
JP58
+
ACT8
1
4
D60
C23
D55
J10
®
R194
R324
R325
R105
R246
R459
C89
C86
ALARM#1
ALARM#2
+5V
+12V
FAN#4
FAIL
D3
D36
D53
D54
C
A
C
A
C
A
C
A
C
A
49
J8
17
32
C88
Y1
U67
I2C#1
R443
J7
1
1
4
J6
F4
JP64
J5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Supero SAS-836TQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supero Supero SAS-836TQ

Summary of Contents for Supero Supero SAS-836TQ

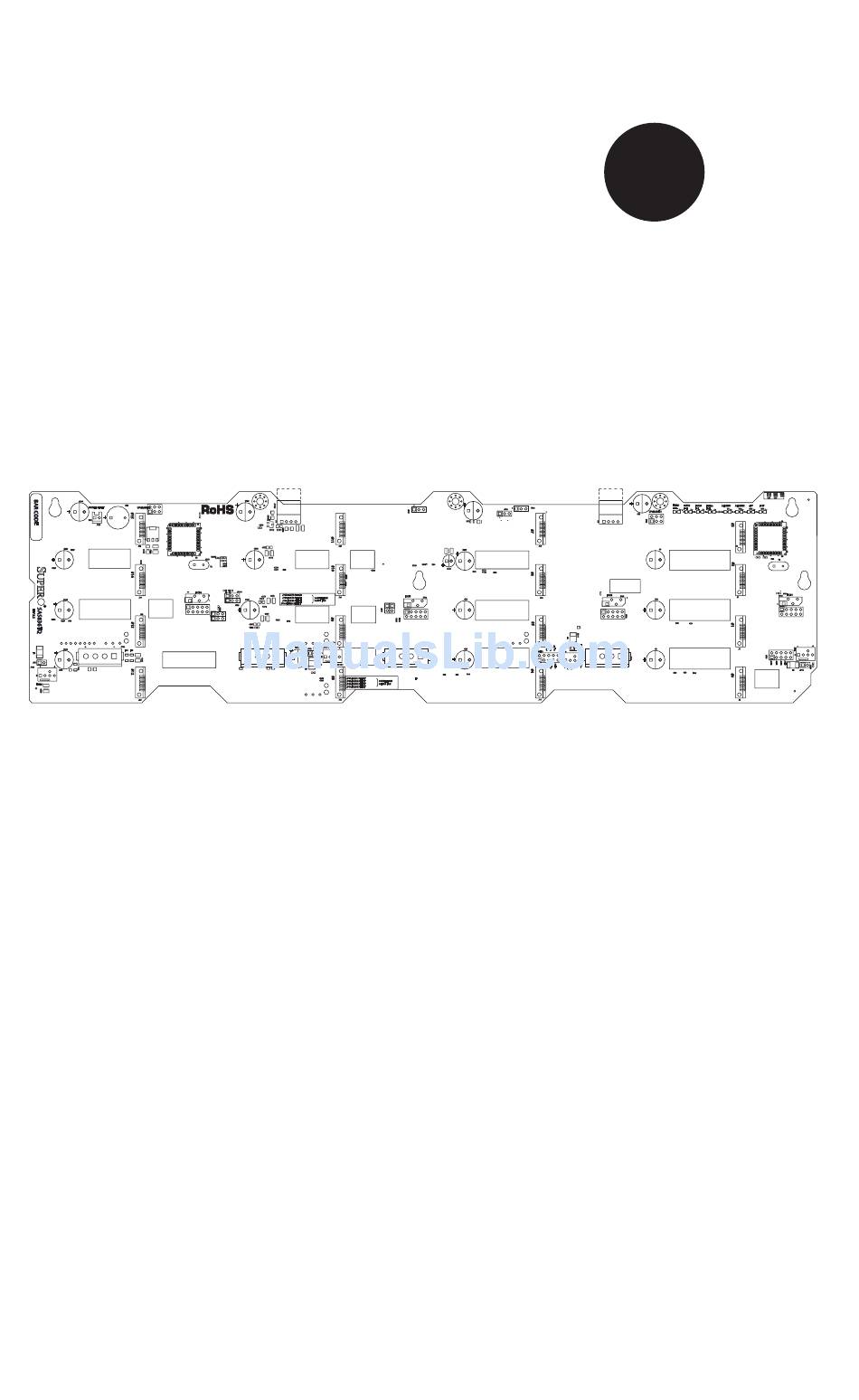

  • Page 1 UPER ® R194 R324 R325 R105 R246 R459 C198 C200 FAN#1 FAN#2 FAN#3 ALARM#1 ALARM#2 +12V FAN#4 BUZZER RESET UPGRADE#2 JP84 FAIL FAIL FAIL FAIL JP25 UPGRADE#1 JP18 C178 C177 C204 C202 C275 C285 R351 C176 R353 R268 R170 R273 R169 C158 C229...
  • Page 2 Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com. Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.

  • Page 3: Table Of Contents

    Safety Information and Technical Specifications Table of Contents Contacting Supermicro .....................iv Returning Merchandise for Service ................v Chapter 1 Safety Guidelines ESD Safety Guidelines ................... 1-1 General Safety Guidelines ................1-1 An Important Note to Users ................1-2 Chapter 2 Jumper Settings and Pin Definitions Front Connectors and Jumpers ..............

  • Page 4: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) www.supermicro.com Site: Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 5: Returning Merchandise For Service

    For faster service, RMA authorizations may be requested online (http://www. supermicro.com/support/rma/). Whenever possible, repack the backplane in the original Supermicro box, using the original packaging materials. If these are no longer available, be sure to pack the backplane in an anti-static bag and inside the box. Make sure that there is enough packaging material surrounding the backplane so that it does not become damaged during shipping.

  • Page 6: Esd Safety Guidelines

    Safety Information and Technical Specifications Chapter 1 Safety Guidelines To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. ESD Safety Guidelines Electric Static Discharge (ESD) can damage electronic components. To prevent dam- age to your system, it is important to handle it very carefully.

  • Page 7: An Important Note To Users

    SAS-836TQ Backplane User's Guide An Important Note to Users • All images and layouts shown in this user's guide are based upon the latest PCB Revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual.

  • Page 8: Front Connectors And Jumpers

    Safety Information and Technical Specifications Chapter 2 Jumper Settings and Pin Definitions Front Connectors and Jumpers R194 R324 R325 R105 R246 R459 C200 C198 FAN#1 FAN#2 FAN#3 FAN#4 ALARM#1 ALARM#2 +12V BUZZER RESET UPGRADE#2 JP84 FAIL FAIL FAIL JP25 FAIL UPGRADE#1 JP18 C178...

  • Page 9: Front Connector And Pin Definitions

    SAS-836TQ Backplane User's Guide Front Connector and Pin Definitions #1. Activity LED Header SAS Activity LED Header Pin Definitions (JP26) The activity LED headers, designated JP26 Pin # Definition Pin # Definition and JP47, are used to indicate the activity ACT IN#0 ACT IN#4 status of each SAS drive.
  • Page 10 Safety Information and Technical Specifications #4. Fan Connectors Fan Connectors (JP54, JP56, JP58, The 4-pin connectors, designated JP54, JP56, and JP60) JP58 and JP60, provide power to the fans. See Pin# Definition the table on the right for pin definitions. These Ground 4-pin connectors are compatible with 3-pin and +12V...
  • Page 11 SAS-836TQ Backplane User's Guide #14. Upgrade Connectors The upgrade connectors are designated JP69 (for U19) and JP78 (for U40). Upgrade connec- tors are for manufacturing use only. #15-#30. SAS Ports The SAS ports are used to connect the SAS drive cables. The 16 ports are designated #0 - #15.

  • Page 12: Front Jumper Locations And Pin Definitions

    Safety Information and Technical Specifications Front Jumper Locations and Pin Definitions JP84 R194 R324 R325 R105 R246 R459 C198 C200 FAN#1 FAN#2 FAN#3 FAN#4 ALARM#1 ALARM#2 +12V BUZZER RESET UPGRADE#2 JP84 FAIL FAIL FAIL FAIL JP25 UPGRADE#1 JP18 C178 JP35 C177 C204 C202...

  • Page 13: Fan Jumper Settings

    SAS-836TQ Backplane User's Guide Fan Jumper Settings The SAS-836TQ backplane can use up to four fans. To utilize each fan, you must configure both jumpers as instructed below. Fan Jumper Settings Jumper Jumper Settings Note Closed: With Fan (default) Fan#1 Enable/Disable JP61 Open: No Fan JP54...

  • Page 14: Sas Port Connections In I

    Safety Information and Technical Specifications SAS Port Connections in I C and SGPIO Settings Use the following chart when connecting this backplane. If you connect the SAS ports out of order, you will not able to easily identify drives using the LED func- tion.

  • Page 15: Front Led Indicators

    SAS-836TQ Backplane User's Guide Front LED Indicators R194 R324 R325 R105 R246 R459 C200 C198 FAN#1 FAN#2 FAN#3 FAN#4 ALARM#1 ALARM#2 +12V BUZZER RESET UPGRADE#2 FAIL JP84 FAIL FAIL FAIL JP25 UPGRADE#1 JP18 C178 C177 C204 C202 C275 C285 R351 C176 R353 R268...

  • Page 16: Rear Connectors And Led Indicators

    Safety Information and Technical Specifications Rear Connectors and LED Indicators SAS #7 SAS #11 SAS #15 SAS #3 SAS #6 SAS #10 SAS #14 SAS #2 SAS #5 SAS #9 SAS #1 SAS #13 SAS #8 SAS #4 SAS #0 SAS #12 Rear SAS/SATA Connectors SILKSCREEN...
  • Page 17 SAS-836TQ Backplane User's Guide Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic...
