Controls C3-C10186 Product Manual

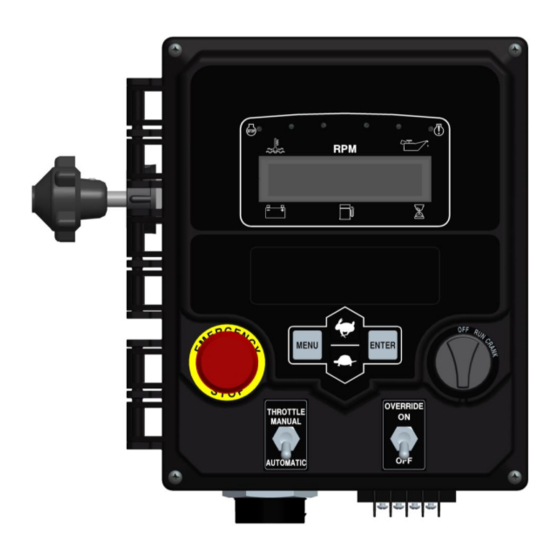

Engine display & control panel j1939 engines
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Product Manual
Engine Display & Control Panel
J1939 Engines
Part Number: C3-C10186
Revision: 1.0
______________________________________________________________________________________________________________________________________
Copyright  Controls, Inc.
P.O. Box 368 • Sharon Center, OH 44274
Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C3-C10186 and is the answer not in the manual?

Questions and answers

Related Manuals for Controls C3-C10186

Summary of Contents for Controls C3-C10186

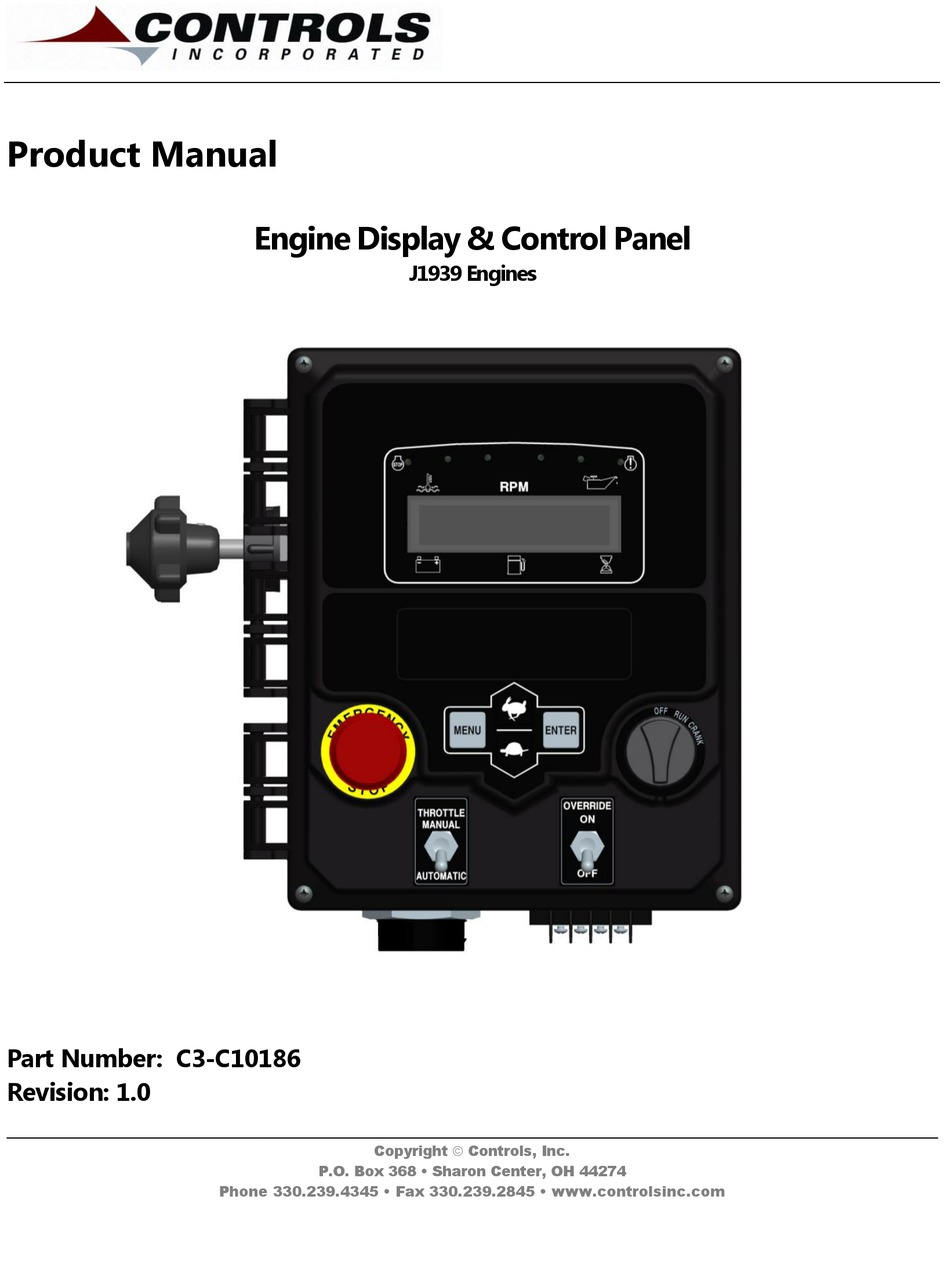

  • Page 1 Product Manual Engine Display & Control Panel J1939 Engines Part Number: C3-C10186 Revision: 1.0 ______________________________________________________________________________________________________________________________________ Copyright  Controls, Inc. P.O. Box 368 • Sharon Center, OH 44274 Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com...

  • Page 2: Table Of Contents

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S TABLE OF CONTENTS PRIOR TO STARTING ENGINE……. ……………………………………………………………………….……………….………..……... THROTTLE SETTINGS CAN BUS SETTINGS PANEL OPERATION………..…..…...

  • Page 3: Prior To Starting Engine

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S PRIOR TO STARTING ENGINE Prior to starting the engine, select the proper throttle control mode required for application.

  • Page 4: Panel Operation

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S PANEL OPERATION 1) Engine Start - Turn key to run position 2) Engine Stop – Turn key to off position 3) Engine Throttle –...

  • Page 5: Module Connectors

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MODULE CONNECTORS Primary Connector Secondary Connector 14 Pin 23 Pin - 4 -...

  • Page 6: Primary 14 Pin Module Connector

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Primary Connector (14 Pin) Function Function Relay #2 -ECU Signal J1939 Low Relay #1 NO...

  • Page 7: Panel Connectors

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S PANEL CONNECTORS Engine Harness Connector –Deutsch 21 pin (HDP24-24-21PE) Engine Harness Customer Connection Connector (21 Pin)

  • Page 8: Engine Alarms, Codes And Messages

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S ENGINE ALARMS, CODES AND MESSAGES ENGINE ECU ALARMS/DE-RATE/SHUT DOWNS It is important to understand panel operation with respect to engine safety protections, alarms, and fault codes.

  • Page 9: Active And Stored Engine Ecu Codes

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S INDICATOR LAMPS The panel red (alarm) and amber (pre alarm) lamp indicators. Engine Engine...

  • Page 10: Control Panel Specific Alarms And Shut Downs

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL SPECIFIC ALARMS AND SHUT DOWNS The panel has its own engine safety alarms and shut downs that can be enabled. These alarms and shut downs are managed by the control panel independent from the engine ECU.

  • Page 11: Control Panel Analog And Digital Inputs

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL ANALOG AND DIGITAL INPUTS The panel is shipped from the factory with the bold print inputs pre-wired and enabled in the panel.
  • Page 12 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Normally Open Function Available Digital 7 31 Pin Message None Check Normally Open Function...
  • Page 13 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S ANALOG #1 INPUT FUNCTIONS Fuel Level S-W – Fuel amount, in percentage, can be measured and displayed on the C3 module using a standard Stewart Warner scale sender of 240 ohms –...
  • Page 14 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S DIGITAL FUNCTIONS The digital inputs can be configured for different uses depending on the application. These include the following: 1) Alarm –...

  • Page 15: Control Panel Relay Outputs

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL RELAY OUTPUTS The panel is shipped from the factory with the highlighted outputs enabled and pre- wired in the panel.
  • Page 16 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S RELAY FUNCTIONS Available relays can be assigned for different uses. a. None - Assign to “none” when not used.

  • Page 17: Menu System

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MENU SYSTEM To Enter Menu System Hold MENU button and press ENTER button. Menu Navigation Press MENU button to scroll menu options.
  • Page 18 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MAIN MENUS Active Engine Fault Codes View/Scroll Active Fault Codes Stored Engine Fault Codes...
  • Page 19 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONFIGURATION MENUS Input Configuration Analog 1 Function (Fuel Level Settings) Digital Input 1 Setup (Pre-Set to Hydro-Throttle)
  • Page 20 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Engine Safety Configuration Sender Check Bypass Time (Default = 0:10) Fuel Level Check Selection (Default = Run)
  • Page 21 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Clutch Configuration #1 Engage Trip #1 Engage Speed #1 Engage Load #1 Engage Delay...
