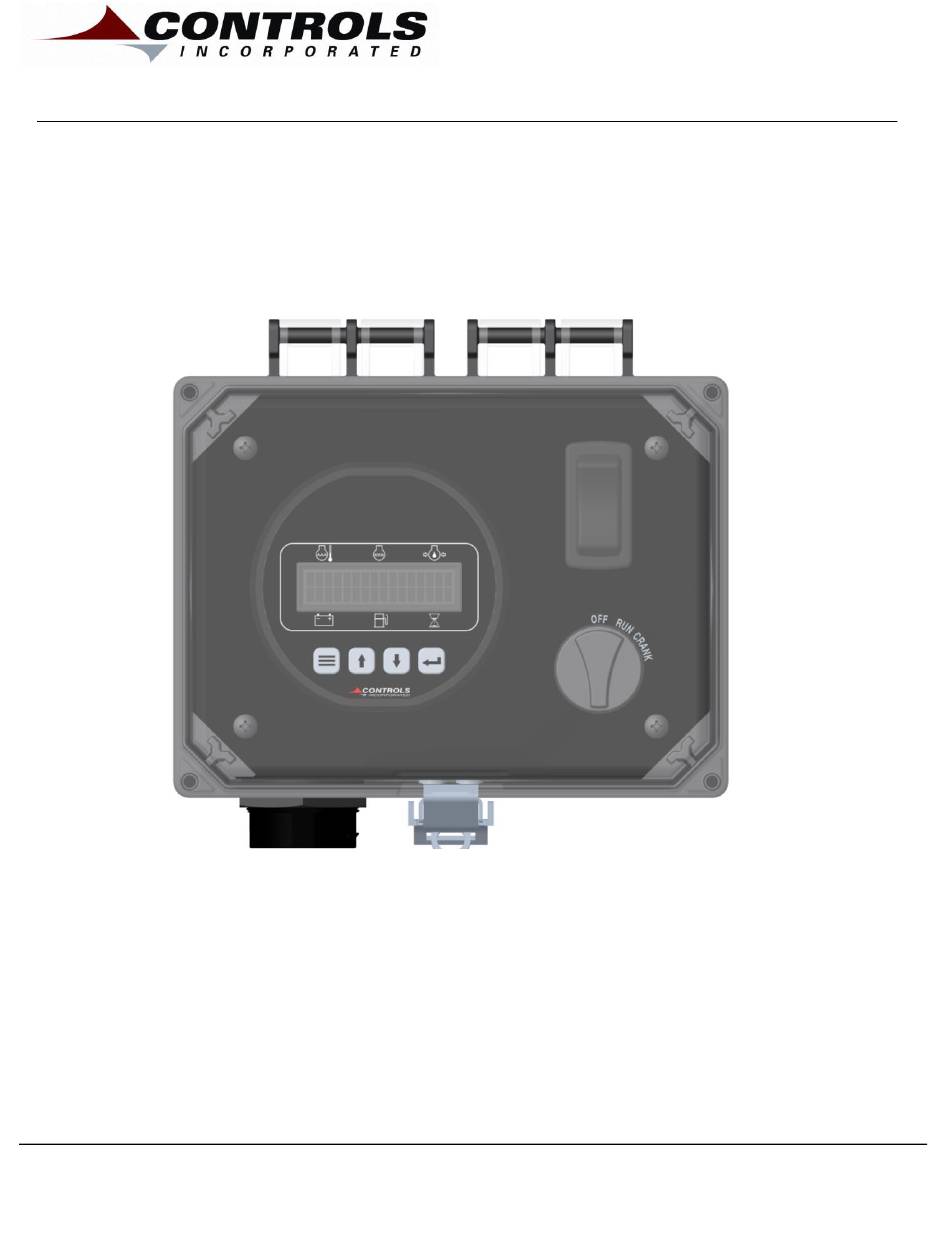

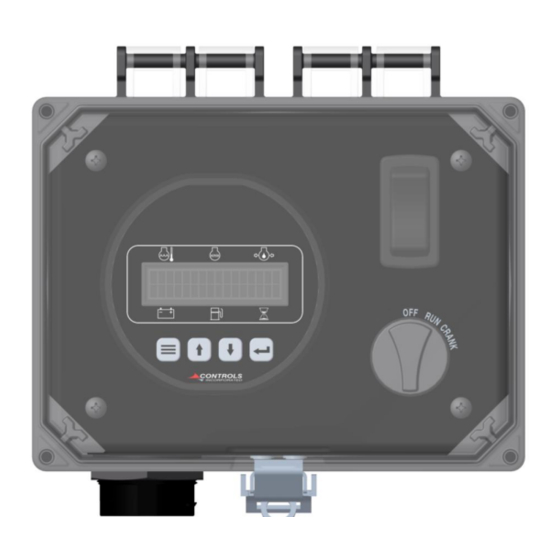

- Page 1 Product Manual Pump Display & Control Panel Mechanical Engines Part Number: MVP-L6100 Revision: 2.0 Copyright @ Controls, Inc P.O. Box 368 • Sharon Center, OH 44274 Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com...
- Page 2 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S TABLE OF CONTENTS INSTALLATION INFORMATION ……...………………………………...……………………………………………………………..MODULE CONNECTOR ……......………………………………...…………………………………………………………………. PANEL CONNECTOR …………………………………………………………………..…………………………………………………………… CUSTOMER CONNECTIONS ……………………………………………………..……………………………………………………………...
- Page 3 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S INSTALLATION INFORMATION...
- Page 4 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MODULE CONNECTOR INFORMATION BATTERY + DIGITAL INPUT #1 CAN HIGH FUEL HOLD CAN LOW...
- Page 5 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S ENGINE HARNESS CONNECTOR INFORMATION Engine Harness Connector –Deutsch 16 pin (HDP24-24-16PE) 16 Pin Engine Harness Connector...
- Page 6 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CUSTOMER CONNECTIONS...
- Page 7 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL SPECIFIC ALARMS AND SHUT DOWNS The panel has its own engine safety alarms and shut downs that can be enabled. These alarms and shut downs are managed by the control panel.
- Page 8 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Indicator Lamps Engine Engine Fault Alarm Lamp Lamp...
- Page 9 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL ANALOG AND DIGITAL INPUTS The panel has one analog input and up to one digital input available to monitor other components, senders or signals.
- Page 10 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Digital Function Activation 1) Off / Always / Run – Describes when the parameter will be monitored for alarm conditions. Run refers to when the engine is running.
- Page 11 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MENU SYSTEM To Enter Menu System Hold MENU button and press ENTER button. Menu Navigation Press MENU button to scroll menu options.
- Page 12 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Main Menus Main Menus Sub Menus Active Engine Fault Codes View/Scroll Active Fault Codes...
- Page 13 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Configuration Menus Quick Setup Engine Type – Default = Mechanical Flywheel Teeth Preheat Time...
- Page 14 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Module Configuration Preheat Time Low Power Mode Power Save Delay Pre-Alarms Displayed (Default = 4)
- Page 15 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S (11) Clutch Configuration Clutch #1 Engage Trip (Default = None) Clutch #1 Engage Speed (Default = 800 rpm) Clutch #1 Engage Load (Default = 0%) Clutch #1 Engage Coolant Temperature (Default = 150°F)
- Page 16 Copyright @ Controls, Inc P.O. Box 368 • Sharon Center, OH 44274 Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com...
