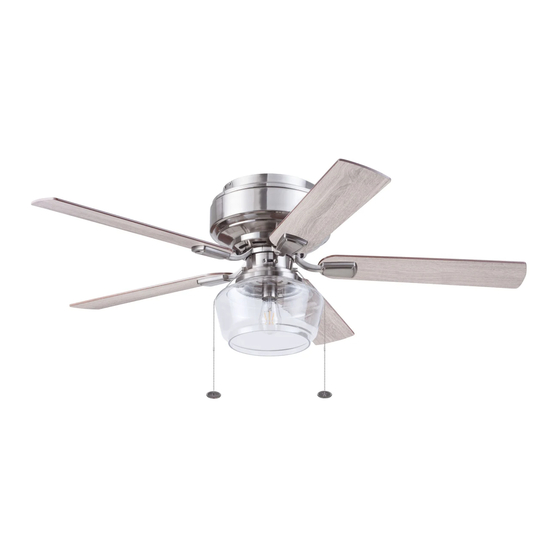

Summary of Contents for Prominence Home MaCenna 51663
-
Page 2: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Motor Housing 10. Light Kit 2. Upper Mounting Bracket 11. E26-base LED Bulb 3. Motor Housing Screw (x4) 12. Glass Bowl 4. Upper Bracket Screw (x2) 13. -
Page 3: Location For Installation
DIMENSION REFERENCE A.16.61 in. B. 8.79 in. C. 8.89 in. LOCATION FOR INSTALLATION Ceiling 30 in. Min Wall 7 ft. Min Floor When selecting a location for installation, ensure the blades will be at least 30 inches from any wall or obstruction and at least 7 feet above the floor. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: All set screws of the fan must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan. - Page 5 SAFETY INSTRUCTIONS WARNING: To avoid risk of electric shock, be sure to shut off power at the main fuse or circuit breaker box before installing or servicing this fixture. Turning off the electrical power by using the light switch is not sufficient to prevent electrical shock.
- Page 6 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breaker. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Note: Remove the wire restraint from the wires on top Upper Upper of the lower bracket.
- Page 7 ASSEMBLY INSTRUCTIONS Upper Mounting Bracket 5. Reinstall the previously removed lower bracket screw and upper bracket screws to secure the lower mounting bracket to the upper mounting bracket. Upper Bracket Screw Lower Lower Bracket Screw Mounting Bracket Braided Cable SECONDARY HANGING SYSTEM For installation in the United States: Building codes in the U.S.A.
- Page 8 ASSEMBLY INSTRUCTIONS 9. Use wire connectors to connect the fan wires to the power supply wires according to the wiring diagram Black (live) and the following instructions: White (neutral) • Connect the green wire from the lower bracket to the Bare/Green (ground) bare/green (ground) supply wire.
- Page 9 ASSEMBLY INSTRUCTIONS 13. Remove the three fitter plate screws preassembled to the fitter plate. Then, connect the 9-pin connector from fan to the 9-pin connector from the light kit. Secure the light kit with the fitter plate screws. Fitter Plate Note: Align the notch in the fitter plate with the reverse Fitter Plate switch on the light kit.
- Page 10 OPERATING INSTRUCTIONS 1. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in winter without feeling a difference in your comfort. In warmer weather, push the reverse switch to the left Reverse for downward airflow creating a wind chill effect.
-
Page 11: Troubleshooting
TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-706-3267, 8 a.m. -
Page 12: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY To obtain Service, please contact the Service Department: 1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday. Model Name: 52” Ceiling Fan Model No: 51663 - Matte Black 51664 - Brushed Nickel 51665 - White Set forth below, the manufacturer, Hong Kong China Electric appliance Company (HKC) warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
