1 CLOCK–
14 CLOCK+
2 SYNC –
15 SYNC+
3 CHAN1–
16 CHAN1+
4 CHAN2–
17 CHAN2+
5 CHAN3–
18 CHAN3+
6 STATUS–
19 STATUS+
7
20
8
21
9
22
10
23
11
24
12
25
13
D-SUB
25 pin male

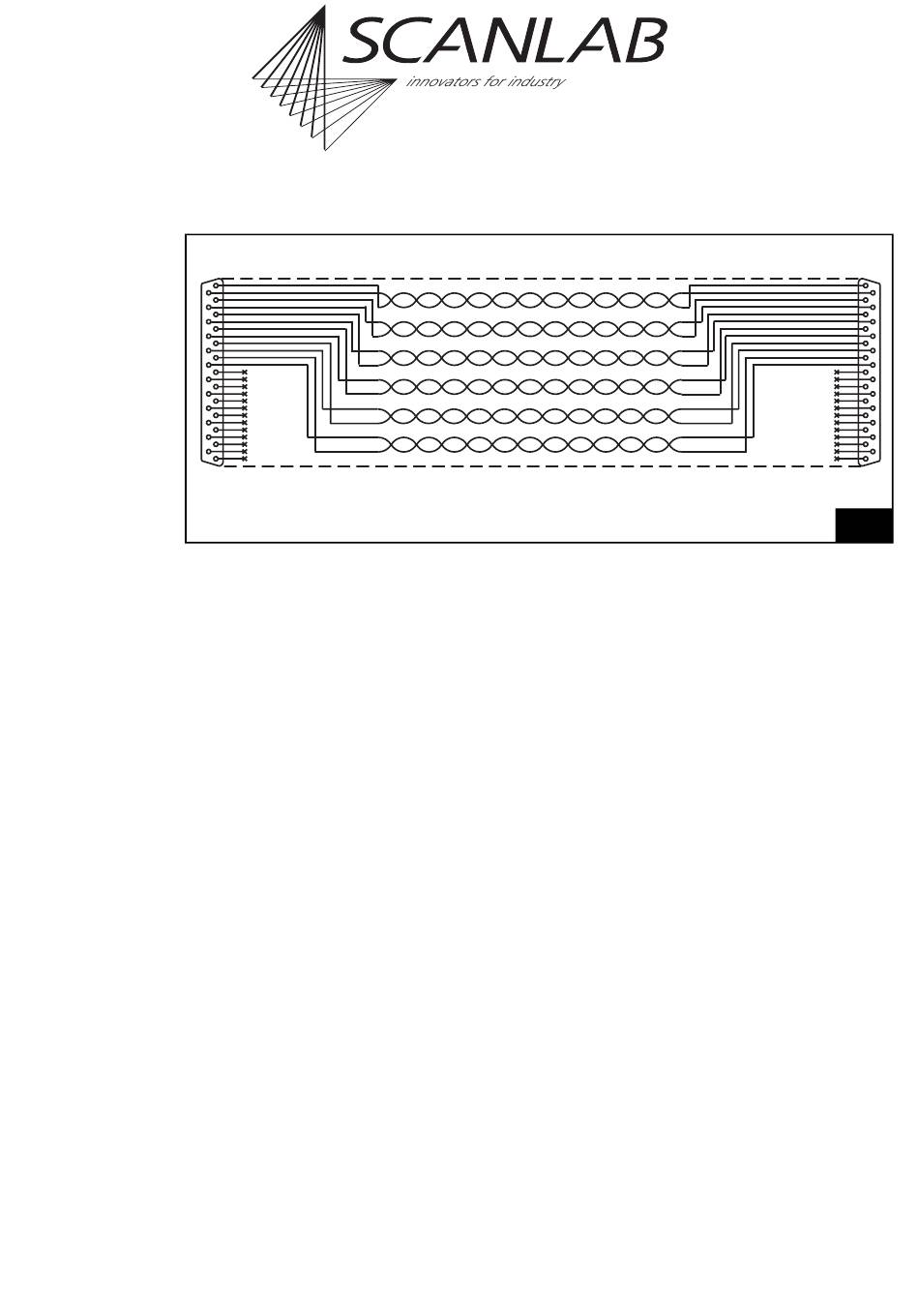

Data cable layout and pin assignments
4.6 Operating and Storage Condi-
tions
For storage, operation and servicing, make sure the
following environmental conditions are met:
• The storage temperature for the scan head should
be between – 35 °C and +60 °C.
• The operating temperature is 25 °C ± 10 °C.
• Protect the scan head from humidity, dust and
corrosive vapors to avoid damage to the mirrors,
optics and electronics.
• Avoid strong electromagnetic fields and static
electricity. These can damage the electronics of
the interface and amplifier boards.
®
hurrySCAN 10, digital, 1064 nm, f = 254 mm
Rev. 2.6 e
4 Installation
Shielding
CLOCK – 1
CLOCK+ 14
SYNC– 2
SYNC+ 15
CHAN1 – 3
CHAN1+ 16
CHAN2 – 4
CHAN2+ 17
CHAN3 – 5
CHAN3+ 18
STATUS – 6
STATUS+ 19
7
20
8
21
9
22
10
23
11
24
12
25
13
D-SUB
25 pin male
11
25
