4.5 Electrical Connections

Figure 5 on page 18 shows the location of the elec-
trical connectors on the scan head.
The scan head provides a 25-pin DIGITAL IN female
D-SUB connector for data transfer and a 9-pin
POWER IN male D-SUB connector for power supply as
well as a 15-pin Z-OUT female D-SUB-connector for
connecting a Z axis. Figure 9
ments of the connectors.
DIGITAL IN
DO NOT CONNECT (25)
DO NOT CONNECT (24)
DO NOT CONNECT (23)
DO NOT CONNECT (22)
DO NOT CONNECT (21)
DO NOT CONNECT (20)
STATUS+ (19)
CHAN3+ (18)
CHAN2+ (17)
CHAN1+ (16)
SYNC+ (15)
CLOCK+ (14)
POWER IN
– 15 V (6)
GND (7)
GND (8)
+15 V (9)
Z-OUT
DO NOT CONNECT (15)
DO NOT CONNECT (14)
RESERVED (13)
RESERVED (12)
DO NOT CONNECT (11)
SIG+Z (10)
SIG – Z (9)
Pin out of electrical connectors
®
hurrySCAN 10, digital, 1064 nm, f = 254 mm
Rev. 2.6 e
4 Installation
shows the pin assign-
(13) DO NOT CONNECT
(12) DO NOT CONNECT
(11) DO NOT CONNECT
(10) DO NOT CONNECT
(9) DO NOT CONNECT
(8) DO NOT CONNECT
(7) DO NOT CONNECT
(6) STATUS –
(5) CHAN3 –
(4) CHAN2 –
(3) CHAN1 –
(2) SYNC –
(1) CLOCK –
(1) – 15 V
(2) – 15 V
(3) GND
(4) +15 V
(5) +15 V
(8) DO NOT CONNECT
(7) DO NOT CONNECT
(6) DO NOT CONNECT
(5) RESERVED
(4) DO NOT CONNECT
(3) DO NOT CONNECT
(2) DO NOT CONNECT
(1) DO NOT CONNECT
9

Power Supply

Requirements
For power, the scan head requires a balanced source
of ±(15+1.5) V with a maximum current of 3 A per
pole. The residual ripple of the power source should
not exceed 10 mV (power sources with larger
pp
residual ripple may be applicable – after reconsulting
SCANLAB – for applications which only require
reduced quality).
Only use a power supply with soft start.
There should be no more than ±5 V potential differ-
ence between the grounds of the power source and
the control computer. Both the power source and the
control computer should be grounded. Usually the
ground of the control computer is already connected
to the mains's grounding wire (PE) via the mains
cable. Therefore the ground of the power source - i.e.
the GND connector on the output side of your power
supply - should also be connected to the mains's
grounding wire (PE; see "cable 1" in
cable connecting the GND connector with the PC
ground should be as short as possible, as long
connections can also produce excessive potential
differences.
Scan head
PC
PE
N
L
Mains

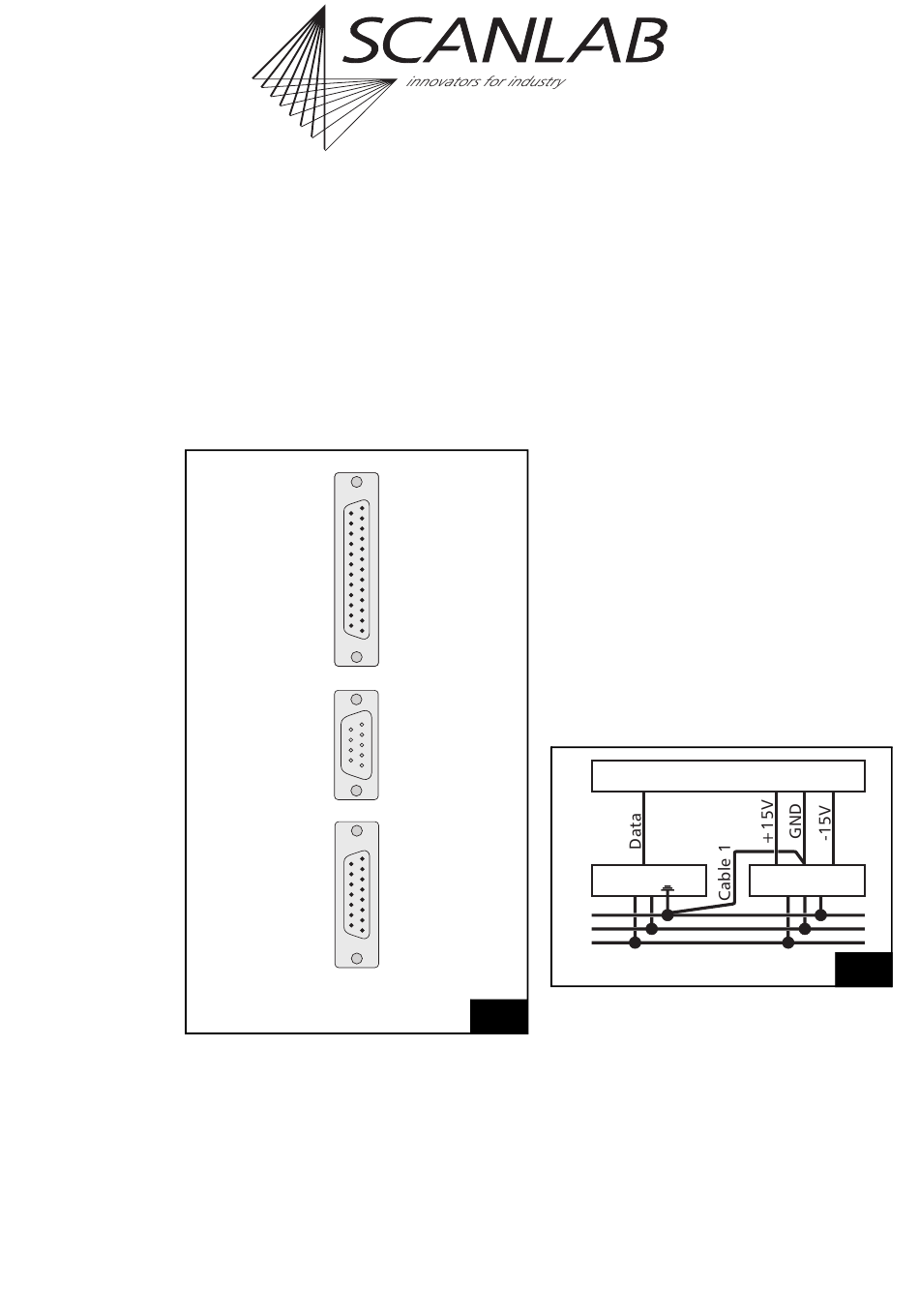

Connect the power supply's GND connector and the PC ground to
the mains's grounding wire (PE).
