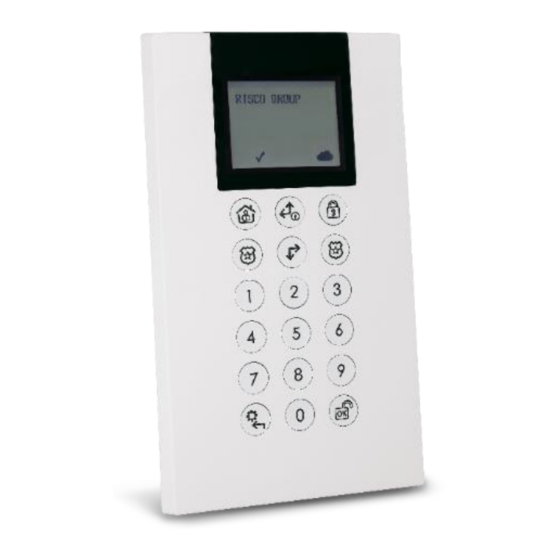

Risco RW432KPP Installation And User Manual
2-way wl panda for lightsys keypad
Hide thumbs
Also See for RW432KPP:
- Installation and user manual (65 pages) ,
- Installation and user manual (65 pages) ,
- Installation and user manual (65 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Risco RW432KPP
Summary of Contents for Risco RW432KPP

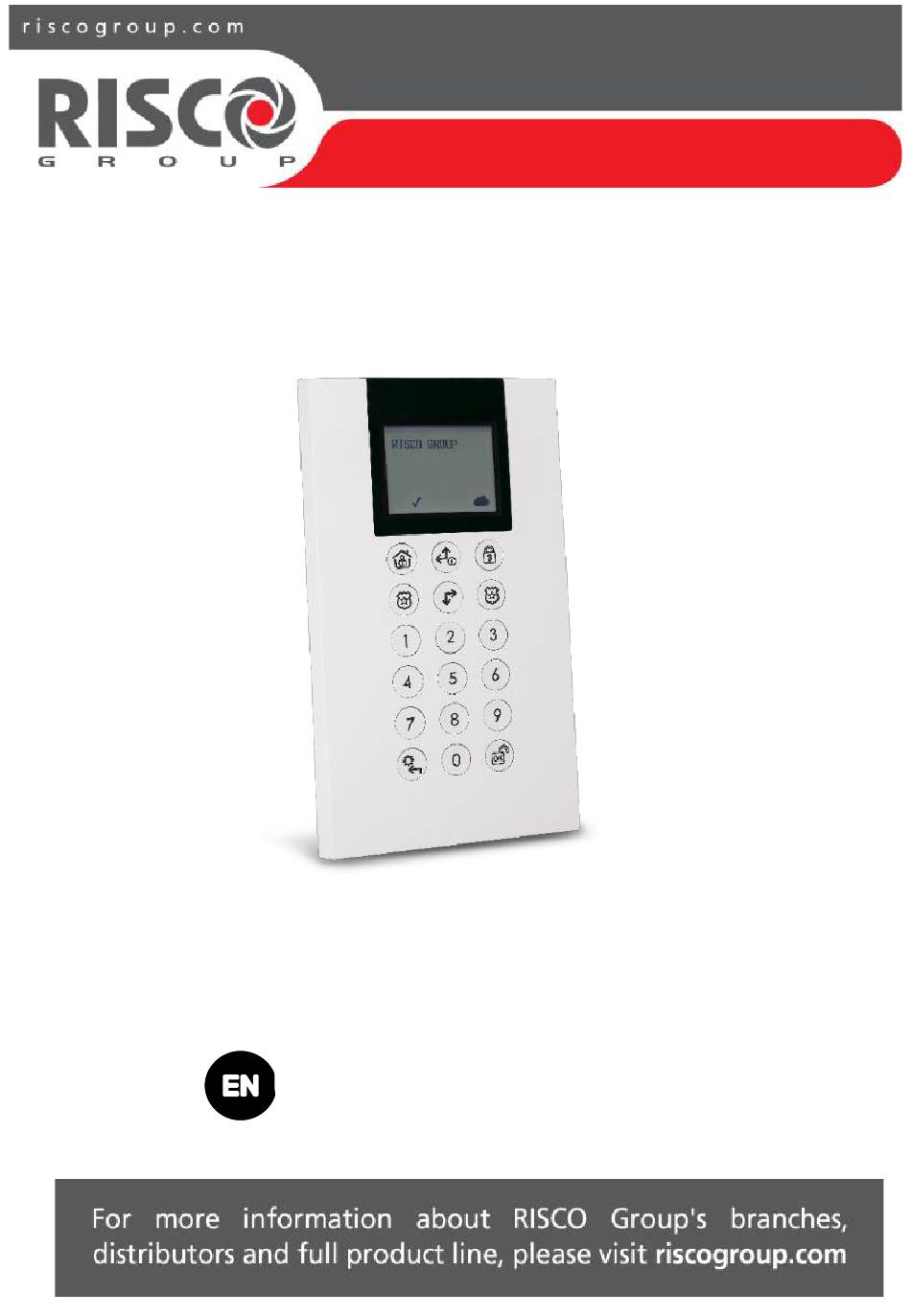

- Page 1 WL Panda for LightSYS Model: RW432KPP Installation and User Guide...
- Page 2 Language Page...
-
Page 3: Main Features
The 2-Way WL Panda for LightSYS keypad enables communication between the wireless keypad and a LightSYS control panel. Being bi-directional, the 2-Way keypad receives a reply status indication from the panel for each command sent to the panel. You can operate the keypad either using a code or a proximity tag. Main Features •... - Page 4 Setup by Serial Number From the Wired Keypad, navigate to the Programing (installer) menu, select 7)Install > 2)WL Device > 2)Allocation > 2)By Code > 3) Keypad and then press If there are two receivers allocated to the system, select the receiver you wish to allocate and then press Select the Keypad location in the system and then press Enter the Keypad’s 11-digit Serial Number and then press...
-
Page 5: Mounting The Keypad
Mounting the Keypad Mount the keypad on the wall using the supplied mounting bracket. NOTE: Before mounting the keypad test the keypad communication with the system. Remove the fastening screw that secures the mounting bracket to the keypad (see Figure 1). Separate the mounting bracket from the keypad (see Figure 2). -
Page 6: Visual Indicators
Main Keypad Operations Visual Indicators The following visual indicators are displayed on the LCD Keypad: Icon Indication Operation System trouble System is operating normally Trouble System is ready to be armed System is not ready to be armed Slow Flash System is ready to be armed while exit/entry zone is open System is armed in Full Arm or Stay Arm... -
Page 7: User Operations
User Operations Control Keys The following lists details the user operations from the 2-Way WL Panda for LightSYS keypad. Operation In Normal Operation mode: Used for Away (Full setting). In User Functions menu: Used to change data. In Normal Operation mode: Used for Stay arming (Part Setting). In User Functions menu: Used to change data. - Page 8 Operation Away (Full Setting) partition 1/2/3/4 Code > > > Stay (Part Settings) partition 1/2/3/4 Code > > > Partition Disarm (Unset) Code > > > Duress Unset Duress Code > Quick Zones Bypass (Omit) Code > [Zone No.] Activate Output [Code] [Activities] [Output...
-
Page 9: Emergency Keys
Operation Changing Keypad Language simultaneously for 2 seconds > select language > Emergency Keys The following operations will send emergency notifications to the alarm monitoring station Operation Pressing both keys simultaneously for at least two seconds activates a Fire alarm Pressing both keys simultaneously for at least two seconds activates an Emergency alarm Pressing both keys simultaneously for at least two seconds... -
Page 10: Keypad Settings
Keypad Settings Note: The following settings must be defined individually for each keypad connected to the system. ➢ To define keypad settings when idle follow this procedure: Press for two seconds until the Keypad Settings menu appears Select the relevant icon using the keys: Brightness Contrast... -
Page 11: Sleep Mode
Sleep Mode For extending the battery life of the keypad, the keypad is designed with a Sleep mode function. By default, 10 seconds after the last key has been pressed, the keypad will turn off its display and LEDs. Replacing Batteries Remove the fastening screw that secures the mounting bracket to the keypad (see Figure 1). -
Page 12: Technical Specification
WL Panda for LightSYS Keypad Prox, 868 Standard Compliance RED Compliance Statement: Hereby, RISCO Group declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the CE Declaration of Conformity please refer to our website: www.riscogroup.com.
