Summary of Contents for Risco WL S50

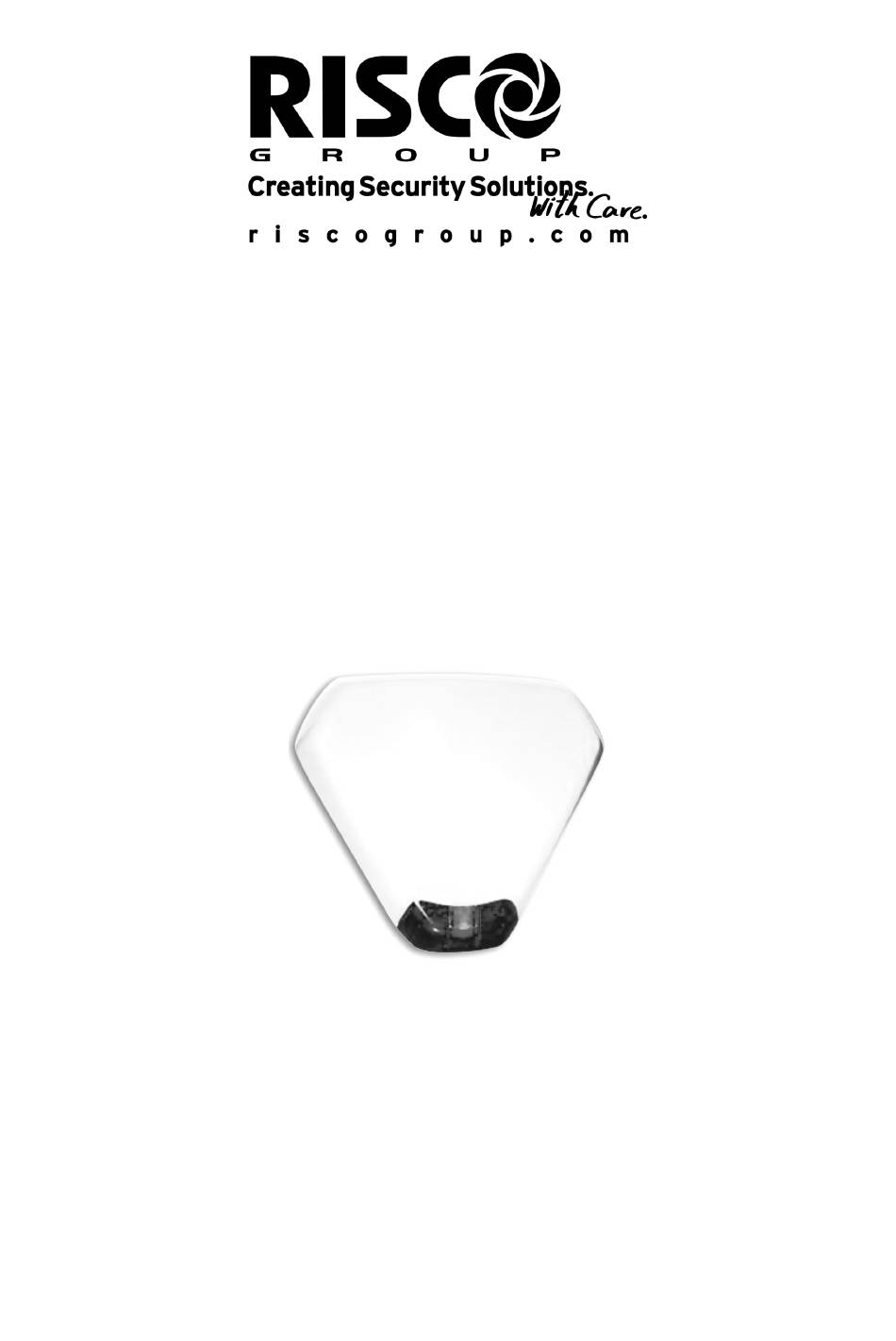

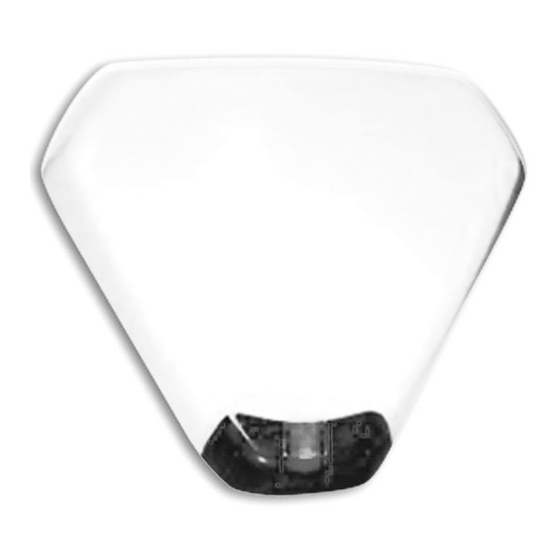

  • Page 1 External Wireless Sounder WL S50 Installation and Programming Instructions...
  • Page 2 Wireless Sounder Instructions...
  • Page 3: Table Of Contents

    Table of Contents Introduction......................4 Operational Functions..................4 Alarm / Tamper Indication ...................4 Low Battery Indication..................4 Supervision ......................4 Pre Alarm Indication....................4 Sounder Self Testing...................4 LED display......................4 Mounting the Sounder..................5 Programming the sounder ................... 6 Step 1: Sounder/Receiver Communication Set up..........6 Step 2: Setting the Sounder Parameters.............7 Strobe Control ....................
  • Page 4: Introduction

    Introduction RISCO Group's two-way External Wireless Sounder is designed to extend the signaling capabilities of the RISCO Group WisDom and Agility wireless systems, within the protected area. The wireless sounder offers an easy and flexible solution for quick installation. The sounder is powered with its own batteries and communicates wirelessly with the security panel using 868MHz frequency band.
  • Page 5: Mounting The Sounder

    Mounting the Sounder 1) Open the screw cover by applying thumb pressure on the screw cover lower part. When raised, push outwards. Once you have gained access to the cover screw, Siren cover open screw and lift the cover Screw cover - screw away until cleared from the Lower section...
  • Page 6: Programming The Sounder

    Two Indication LEDs Reset Switch Radio Batteries Speaker (3V, Parallel Connection) Speaker & Strobe Batteries Strobe (6V, Serial LEDS Connection) External Sounder - PCB Diagram Programming the sounder Programming the wireless sounder consists of the following 3 steps: 1. Setting communication between the receiver and the sounder 2.
  • Page 7: Step 2: Setting The Sounder Parameters

    Step 2: Setting the Sounder Parameters Each sounder can be defined with different sets of parameters. The table below describes the list of parameters of the sounder. NOTE: For the specific programming location of each parameter refer to the system manuals. Strobe Control Defines the Strobe operation mode: Always Off: The strobe is deactivated...
  • Page 8: Setting Supervision Time

    Setting Supervision Time Specifies how often the system generates a supervision request to the sounder. If any of the sounders does not respond to the request at least once, during the receiver supervision time, the system will regard the accessory as lost. NOTE: The receiver supervision time should be higher than the sounder supervision time in order to eliminate false lost event.
  • Page 9: Replacing Batteries

    IP 44 Environment class Class IV Ordering Information Part Number Description WL S50 2 way External Wireless Sounder, 433 / 868.65 MHz Specifications are subject to change without prior notice. Should any questions arise please contact your supplier. Wireless Sounder Instructions...
  • Page 10 RTTE Compliance Statement Hereby RISCO Group declares that this wireless sounder is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For the CE Declaration of Conformity please refer to our website: www.riscogroup.com. FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
  • Page 11 RISCO Group Limited Warranty RISCO Group Ltd. and its subsidiaries and affiliates ("Seller") warrants its products to be free from defects in materials and workmanship under normal use for 24 months from the date of production. Because Seller does not install or connect the product and...
  • Page 12 Contacting RISCO Group RISCO Group is committed to customer service and product support. You can contact us through our website www.riscogroup.com or as follows: United Kingdom Tel: +44-161-655-5500 Tel: +1- 631-719-4400 technical@riscogroup.co.uk support-usa@riscogroup.com Italy Brazil Tel: +39-02-66590054 Tel: +1-866-969-5111 support@riscogroup.it support-br@riscogroup.com...
