Summary of Contents for Risco WL RWS401

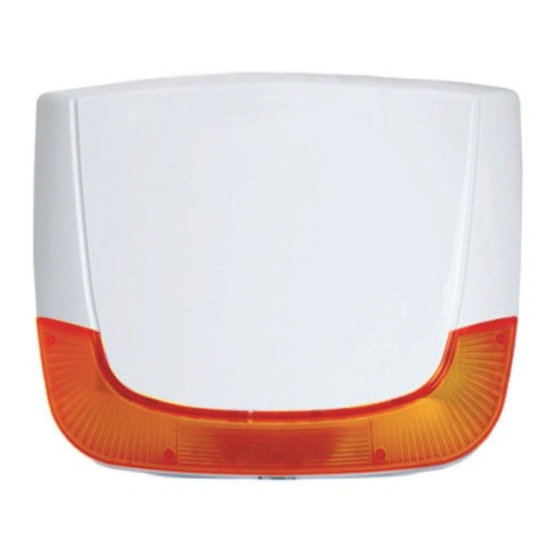

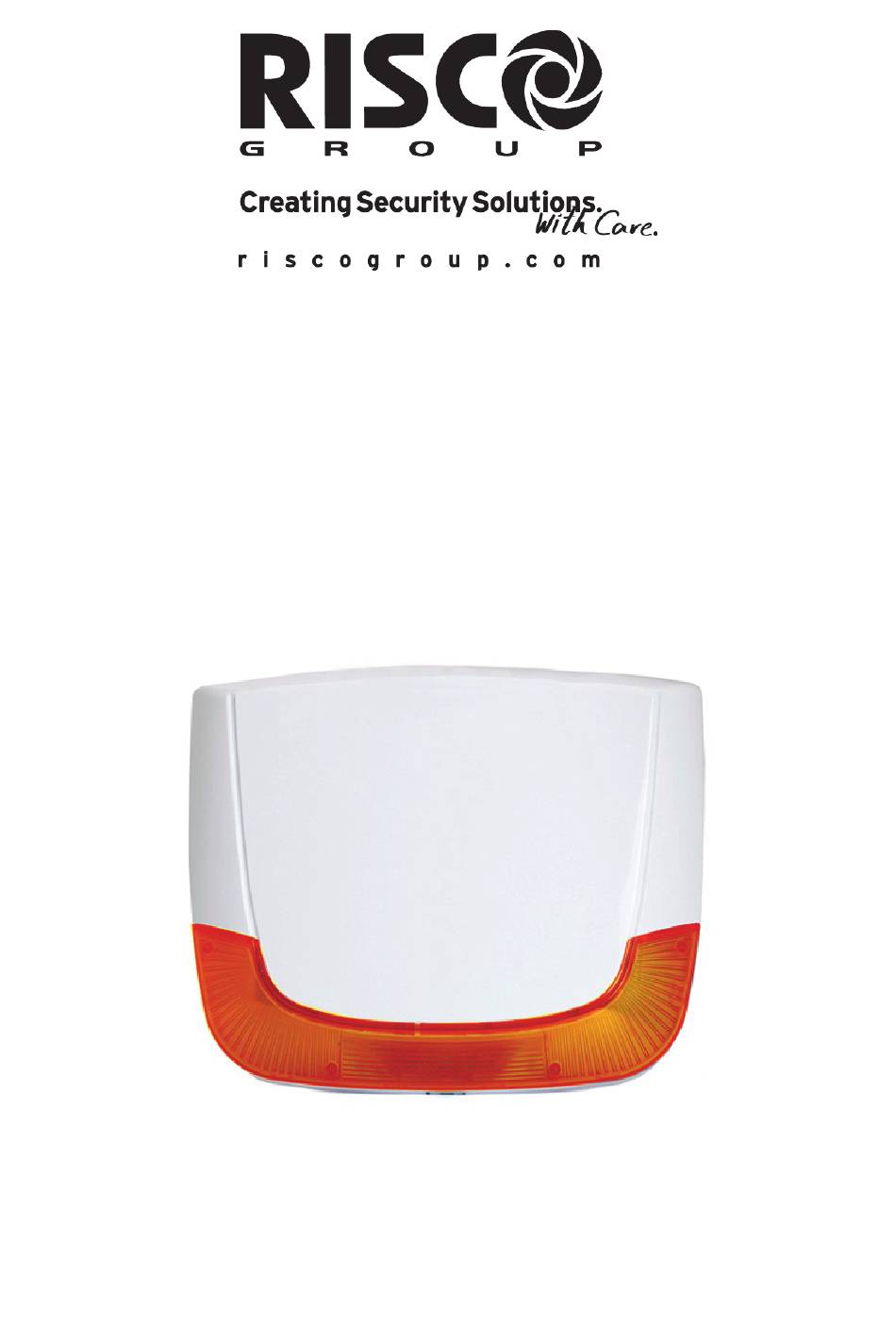

- Page 1 External Wireless Sounder Model: WL RWS401 Installation and Programming Instructions...
-
Page 2: Table Of Contents
Communication Test ..................8 Diagnostics ....................8 Replacing Batteries ....................9 Technical Information ..................10 Electrical ......................10 Wireless ......................10 Environment ...................... 10 RTTE Compliance Statement ................10 RISCO Group Limited Warranty ................ 11 Contacting RISCO Group ................... 12 Wireless Sounder Instructions... -
Page 3: Introduction
Introduction RISCO Group's two-way External Wireless Sounder is designed to extend the signaling capabilities of RISCO Group's wireless systems. The wireless sounder offers an easy and flexible solution for quick installation. The sounder is powered by its own batteries and communicates wirelessly with the security panel. -
Page 4: Mounting The Sounder
Mounting the Sounder To mount the sounder follow this procedure: 1. Open the front cover by removing the case locking screw located at the bottom of the unit. 2. Hold the mounting pattern template (supplied) against the wall and mark the locations for the mounting holes (4 mounting holes are available). - Page 5 External Sounder - PCB Diagram Wireless Sounder Instructions...
-
Page 6: Programming The Sounder
Programming the sounder Programming the wireless sounder consists of the following 3 steps: 1. Setting communication between the receiver and the sounder 2. Setting sounder parameters 3. Testing the sounder Step 1: Sounder/Receiver Communication Set up The sounder must identify itself to the system's receiver by writing its ID into the system. -
Page 7: Strobe Arm Squawk
Strobe Arm Squawk The time that strobe blinking will continue when set is performed (Default: 05) NOTE: If the sounder’s squawk strobe is defined as NO (Refer to the Allocation section) this parameter will be ignored. Adjusting the Volume Defines the sounder sound volume for the following system modes: Exit / Entry: The sound produced during Exit/Entry time (Default: 0) Alarm: The sound produced during alarm (Default: 9) Squawk: The sound produced during squawk sounds (Default: 9) -
Page 8: Pre Alarm Indication
Pre Alarm indication This wireless sounder incorporates a pre-alarm feature that enhances the security of the system by producing a local alarm in case of sabotage. If defined, the system sends a pre-alarm signal to the sounder at the beginning of the entry delay. -
Page 9: Replacing Batteries
NOTE: WisDom: Engineer menu quick key: [9][2][4] Agility: Engineer menu: 2) Testing > 5) Sounder > 4) Noise level > 1) View > 2) Calibrate LightSYS (V2.40 and above): Installer Code/User menu: Maintenance > Diagnostics > Sounders > Select Sounder > Calibration Replacing Batteries Before opening the sounder it is advised to silence the tamper alarm using the Tamper Mute option. -
Page 10: Technical Information
- 25°C to 60°C IP class IP 44 Environment class Class IV RTTE Compliance Statement Hereby RISCO Group declares that this wireless sounder is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Wireless Sounder Instructions... -
Page 11: Risco Group Limited Warranty
RISCO Group Limited Warranty RISCO Group Ltd. and its subsidiaries and affiliates ("Seller") warrants its products to be free from defects in materials and workmanship under normal use for 24 months from the date of production. Because Seller does not install or connect the product and... -
Page 12: Contacting Risco Group
Contacting RISCO Group RISCO Group is committed to customer service and product support. You can contact us through our website www.riscogroup.com or as follows: United Kingdom Brazil Tel: +44-(0)-161-655-5500 Tel: +55-11-3661-8767 E-mail: support-uk@riscogroup.com E-mail: support-br@riscogroup.com Italy China (Shanghai) Tel: +39-02-66590054 Tel: +86-21-52-39-0066 E-mail: support-it@riscogroup.com...
