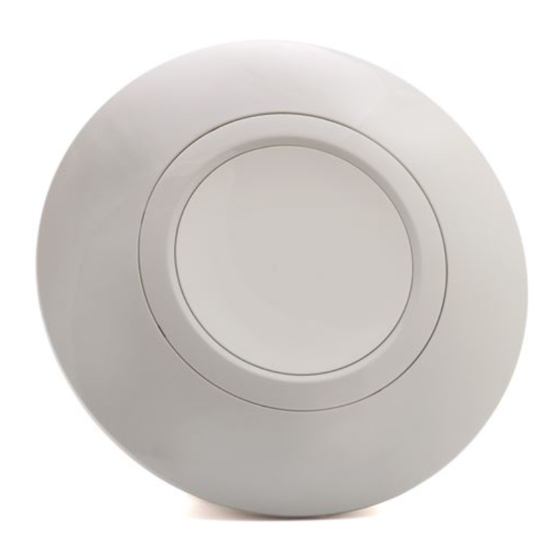

Indoor wireless sounder
Hide thumbs Also See for WL S42:
Table of Contents

Advertisement

Quick Links

Indoor Wireless
Sounder
Model: WL S42
Installation and Programming Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL S42 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Risco WL S42

Summary of Contents for Risco WL S42

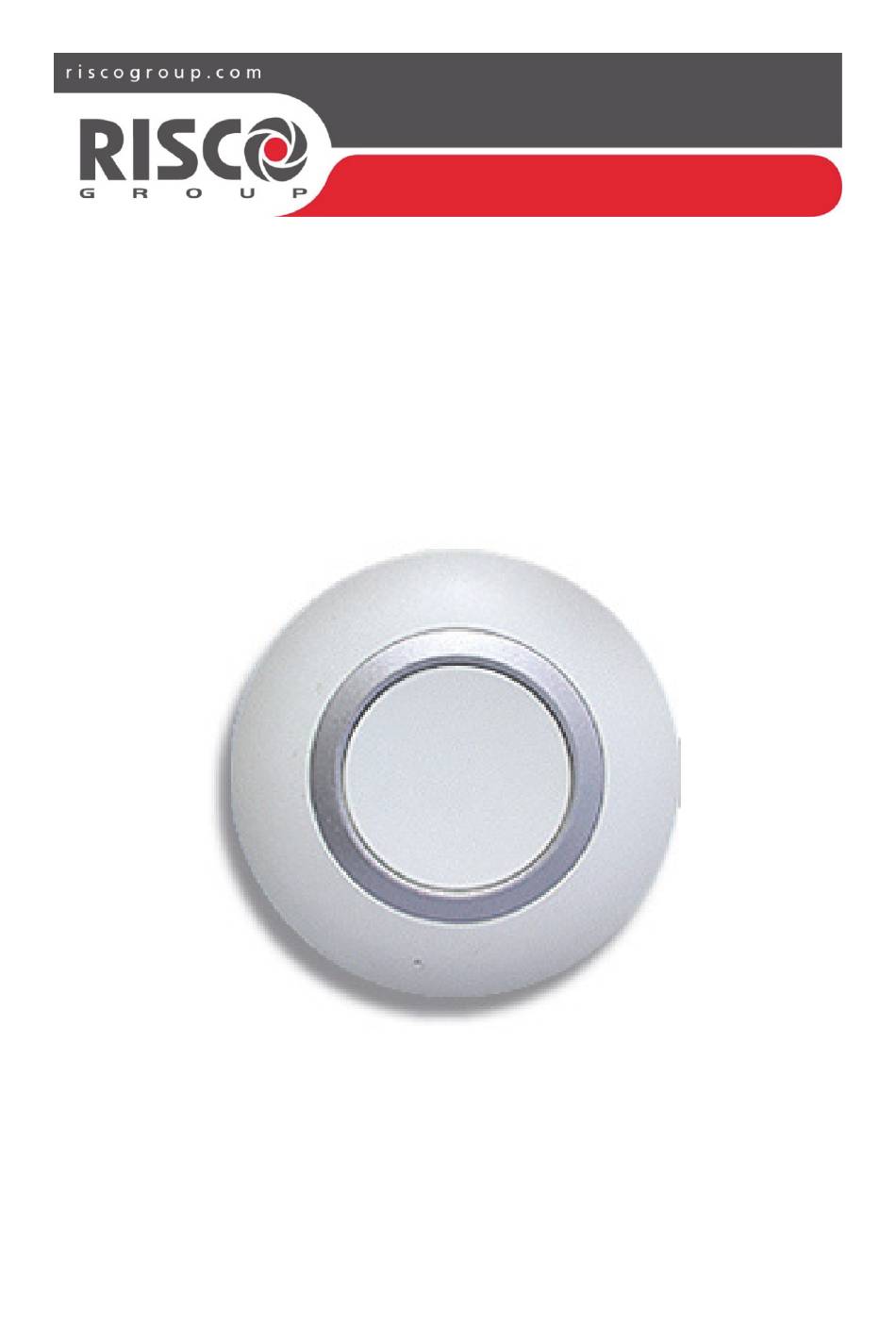

  • Page 1 Indoor Wireless Sounder Model: WL S42 Installation and Programming Instructions...

  • Page 2: Table Of Contents

    Replacing Batteries ....................8 Technical Information ................... 9 Electrical ......................9 Radio ........................9 Environmental ..................... 9 Ordering Information .................... 9 RED Compliance Statement ................10 Standard Limited Product Warranty (“Limited Warranty”) ......10 Contacting RISCO Group ................... 12 Wireless Sounder Instructions...

  • Page 3: Introduction

    Introduction RISCO Group's two-way indoor wireless sounder is designed to extend the signaling capabilities of the Risco Group’s wireless systems, within the protected area. The wireless sounder offers an easy and flexible solution for quick installation. The sounder is powered by its own batteries and communicate wirelessly with the security panel using 868MHz or 433MHz frequency band.

  • Page 4: Mounting The Sounder

    Mounting the Sounder 1. Release the mounting bracket captive locking screw (Fig 1). 2. Turn the mounting bracket counterclockwise and separate it from the sounder. 3. Hold the mounting bracket against the wall (direction arrow pointing up) and mark the locations of the mounting holes (Fig.

  • Page 5: Programming The Sounder

    Programming the sounder Programming the wireless sounder consists of the following 3 steps: 1. Setting communication between the receiver and the sounder 2. Setting sounder parameters 3. Testing the sounder Step 1: Sounder/Receiver Communication Set up The sounder must identify itself to the system's receiver by writing its ID into the System.

  • Page 6: Muting Tamper

    Muting Tamper This feature disables a tamper alarm from the sounder and it is recommended to be used when replacing sounder's batteries. NOTES: 1. An ongoing tamper alarm will not be disabled. 2. WisDom: This feature is controlled under the Engineer Menu (Quick key [9][2][5]). Tamper alarm will be disabled during the current installation programming period.

  • Page 7: Step 3: Testing The Sounder

    Step 3: Testing the Sounder Communication Test The sounder communication test performs a communication test between the sounder receiver and the system.  To perform communication test 1. Access to communication test option NOTE: WisDom: Engineer menu > 9) Devices > 2) Sounders > 3) Communication test Agility: Engineer menu >...

  • Page 8: Replacing Batteries

    Replacing Batteries Before opening the sounder it is advised to silence the tamper alarm using the Tamper Mute option (see the Muting Tamper paragraph on page 6). Unlock the captive screw and remove the sounder from the mounting bracket by turning it counterclockwise.

  • Page 9: Technical Information

    Technical Information Electrical Power Supply 5 X CR123, 3V Lithium Battery (3 batteries for the Radio Transceiver, 2 batteries for the Speaker (see Fig. 3 on page 4) Battery life 3 years (typical) Speaker sound level 105 dB @ 1 meters (adjustable) Size (Ø&D) Ø183 x 51 mm (7.2 x 2 inch) Weight (batteries not...

  • Page 10: Red Compliance Statement

    RISCO, for a period of (i) 24 months from the date of delivery of the Product (the “Warranty Period”). This Limited Warranty covers the Product only within the country where the Product was originally purchased and only covers Products purchased as new.
  • Page 11 Product (with or without the RISCO brand), including, but not limited to system software, as well as P2P services or any other service made available by RISCO in relation to the Product, are not covered under this Limited Warranty. Refer to the Terms of Service at: https://riscocloud.com/ELAS/WebUI/UserLogin/License...

  • Page 12: Contacting Risco Group

    Contacting RISCO Group RISCO Group is committed to customer service and product support. You can contact us through our website www.riscogroup.com or as follows: United Kingdom Belgium Tel: +44-161-655-5500 Tel: +32-2522-7622 technical@riscogroup.co.uk support-be@riscogroup.com Italy Tel: +39-02-66590054 Tel: +305-592-3820 support@riscogroup.it support@riscogroupusa.com...
