External wireless sounder

Advertisement

Quick Links

External Wireless
Sounder
Model: WL S52
Installation and Programming Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL S52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Risco WL S52

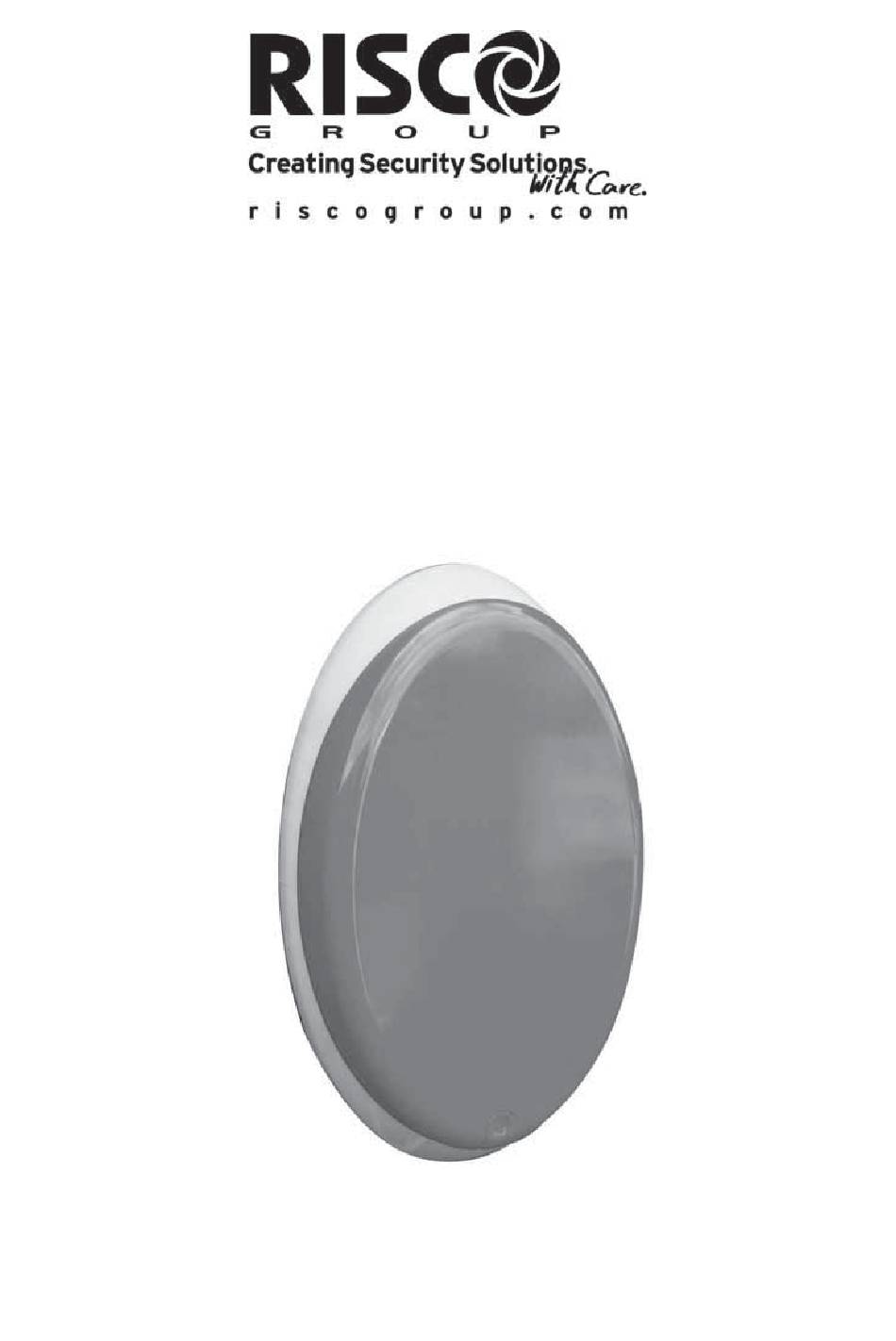

  • Page 1 External Wireless Sounder Model: WL S52 Installation and Programming Instructions...
  • Page 2: Table Of Contents

    Table of Contents Introduction......................3 Operational Functions..................3 Alarm / Tamper Indication ...................3 Low Battery Indication..................3 Supervision ......................3 Pre Alarm Indication....................3 Sounder Self Testing...................3 LED display......................3 Mounting the Sounder..................4 Programming the sounder ................... 6 Step 1: Sounder/Receiver Communication Set up..........6 Step 2: Setting the Sounder Parameters.............7 Strobe Control ....................
  • Page 3: Introduction

    Introduction RISCO Group's two-way External Wireless Sounder is designed to extend the signaling capabilities of RISCO Group's WisDom and Agility wireless systems. The wireless sounder offers an easy and flexible solution for quick installation. The sounder is powered by its own batteries and communicates wirelessly with the security panel.
  • Page 4: Mounting The Sounder

    Mounting the Sounder To mount the sounder follow this procedure: Step 1: Remove the Cover Screw Assembly. The screw cover is opened by asserting thumb pressure on it and pushing outward to reveal the cover screw. Unscrew the cover screw and hinge the lid open to approximately 45 degrees, lift the cover away until the tongue of the hinge engages.
  • Page 5 Figure 3 Step 6: Insert the supplied batteries. The sounder is ready for communication set up with the system. Step 7: The single Tamper switch may be fitted in two positions: a) to provide screw cover and rear tamper. -or- b) to provide front cover and rear tamper.
  • Page 6: Programming The Sounder

    Two Indication LEDs Reset Switch Radio Batteries Speaker (3V, Parallel Connection) Speaker & Strobe Batteries Strobe (6V, Serial LEDS Connection) External Sounder - PCB Diagram Programming the sounder Programming the wireless sounder consists of the following 3 steps: 1. Setting communication between the receiver and the sounder 2.
  • Page 7: Step 2: Setting The Sounder Parameters

    Step 2: Setting the Sounder Parameters Each sounder can be defined with different sets of parameters. The following table describes the list of parameters of the sounder. NOTE: For the specific programming location of each parameter refer to the system manuals. Strobe Control Defines the Strobe operation mode: Always Off: The strobe is deactivated...
  • Page 8: Setting Supervision Time

    Setting Supervision Time Specifies how often the system generates a supervision request to the sounder. If any of the sounders does not respond to the request at least once during the receiver supervision time, the system will regard the accessory as lost. NOTE: The receiver supervision time should be higher than the sounder supervision time in order to eliminate false lost event.
  • Page 9: Replacing Batteries

    NOTE: WisDom: User menu: 4) Maintenance > 7) Sounders > 1) Diagnostics Agility: Engineer menu > 2) Testing > 5) Sounder > 2) Battery test > 3)Version The diagnostic features can also be performed from the Upload/Download software, locally or remotely.
  • Page 10 RTTE Compliance Statement Hereby RISCO Group declares that this wireless sounder is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For the CE Declaration of Conformity please refer to our website: www.riscogroup.com. FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
  • Page 11 RISCO Group Limited Warranty RISCO Group Ltd. and its subsidiaries and affiliates ("Seller") warrants its products to be free from defects in materials and workmanship under normal use for 24 months from the date of production. Because Seller does not install or connect the product and...
  • Page 12 Contacting RISCO Group RISCO Group is committed to customer service and product support. You can contact us through our website www.riscogroup.com or as follows: United Kingdom Tel: +44-161-655-5500 Tel: +1- 631-719-4400 technical@riscogroup.co.uk Support-usa@riscogroup.com Italy Brazil Tel: +39-02-66590054 Tel: +1-866-969-5111 support@riscogroup.it support-br@riscogroup.com...
