- Page 1 CENTRIFUGAL CEILING EXTRACT FAN Ceileo 200/250/300 Ceileo 200/250/300 Т/H/IR Ceileo 200/250/300 Light Ceileo 200/250/300 Light Т/H/IR USER'S MANUAL...
-
Page 2: Table Of Contents
Ceileio www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery Set ....................................... 4 Designation key .................................... 4 Technical data ....................................5 Design and operating principle ............................6 Mounting and set-up ................................7 Connection to power mains ..............................10 Control ......................................... 11 Maintenance .................................... - Page 3 Ceileio www.blaubergventilatoren.de • Do not change the power cable length at your own discretion. Do not bend the • Do not lay the power cable of the unit in power cable. Avoid damaging the power close proximity to heating equipment. cable.
-
Page 4: Purpose
Ceileio www.blaubergventilatoren.de PURPOSE The centrifugal ceiling extract fan Ceileio is designed for extract ventilation of small to medium-sized premises. THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE TRAINING. -
Page 5: Technical Data
Ceileio www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for indoor application at ambient temperature from +1 °C up to +40 °C at relative humidity up to 80 %. Ingress protection rating against access to hazardous parts and water ingress is IPX4. The unit design is constantly being improved, so some models may be slightly different from those ones described in this manual. -
Page 6: Design And Operating Principle
Ceileio www.blaubergventilatoren.de TECHNICAL DATA Ceileo 200 Ceileo 250 Ceileo 300 Ceileo 200 T/H/IR Ceileo 250 T/H/IR Ceileo 300 T/H/IR PARAMETER Ceileo 200 Light Ceileo 250 Light Ceileo 300 Light Ceileo 200 Light T/H/IR Ceileo 250 Light T/H/IR Ceileo 300 Light T/H/IR Frequency [Hz] Speed Voltage, V... -
Page 7: Mounting And Set-Up

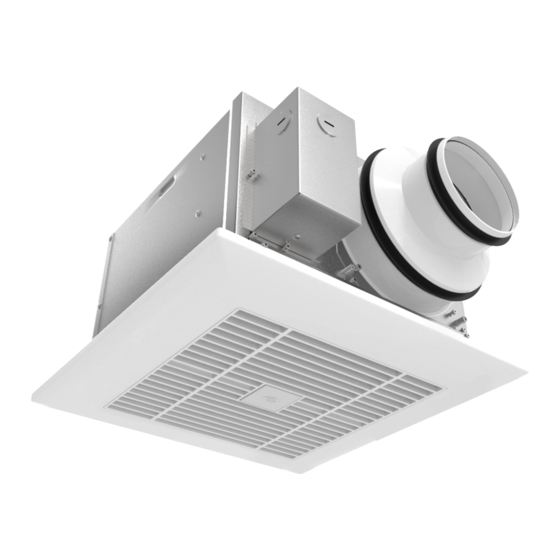

Ceileio www.blaubergventilatoren.de The fan casing is made of galvanized steel. The fan casing includes an exhaust spigot with a back draft damper to prevent back air flow. The terminal box comprises the terminals for wiring of the fan and is attached to the fan casing. The decorative grille is fixed to the casing via the springs inserted to the holders. - Page 8 Ceileio www.blaubergventilatoren.de MOUNTING STEPS 1. Attach the fan to the interjoist using the screws. 2. Connect the fan of a required diameter. 3. Connect the LED lamps (included in the delivery set) for the Light models. Option: connect the humidity sensor or the motion sensor (specially ordered accessory). For the Light models: connect the power socket of the LED lamp and the respective sockets in the terminal box.
- Page 9 Ceileio www.blaubergventilatoren.de BASIC FAN INSTALLATION OPTIONS Installation Side fixation Fixation between between the ceiling joists to one of the ceiling joists the ceiling joists using the mounting brackets Additional fastening holes in the fan casing may be used for mounting purposes...
-
Page 10: Connection To Power Mains
Ceileio www.blaubergventilatoren.de CONNECTION TO POWER MAINS DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE UNIT MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE SHOWN ON THE RATING PLATE. ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY. -
Page 11: Control
Ceileio www.blaubergventilatoren.de CONTROL CONTROL UNIT WITH A SPEED SWITCH HIGH Three-position speed switch The fan with AC motor is controlled by a three-position switch. The switch has three positions: OFF — the fan is turned off. LOW — the fan operates at reduced performance (speed 1). HIGH —... -
Page 12: Maintenance
Ceileio www.blaubergventilatoren.de — turn-off delay timer adjustable from 1 to 90 minutes (default setting 15 minutes). — turn-on delay timer adjustable from 0 to 180 seconds with the increment of 10 seconds (default setting 0). — humidity set point adjustable from 50 % up to 90 % (default setting 75 %). —... - Page 13 Ceileio www.blaubergventilatoren.de LAMP REPLACEMENT DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! 1. Remove the decorative grille: • Pull the grille to release the springs from the holders on the casing. • Take out the lamp power socket from the respective socket on the casing. •...
-
Page 14: Storage And Transportation Regulations
Ceileio www.blaubergventilatoren.de STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 °C to + 40 °C and relative humidity up to 70 %. • Storage environment must not contain aggressive vapours and chemical mixtures provoking corrosion, insulation, and sealing deformation. -
Page 15: Manufacturer's Warranty
Ceileio www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC. -
Page 16: Acceptance Certificate
Ceileio www.blaubergventilatoren.de ACCEPTANCE CERTIFICATE UNIT TYPE Centrifugal ceiling extract fan MODEL Ceileo _______________________ SERIAL NUMBER MANUFACTURE DATE QUALITY INSPECTOR’S STAMP SELLER INFORMATION SELLER ADDRESS PHONE NUMBER E-MAIL PURCHASE DATE This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 17 Ceileio www.blaubergventilatoren.de...
- Page 18 Ceileio www.blaubergventilatoren.de...
- Page 19 Ceileio www.blaubergventilatoren.de...
- Page 20 www.blaubergventilatoren.de B166-1EN-09...
