OPERATION AND MAINTENANCE MANUAL

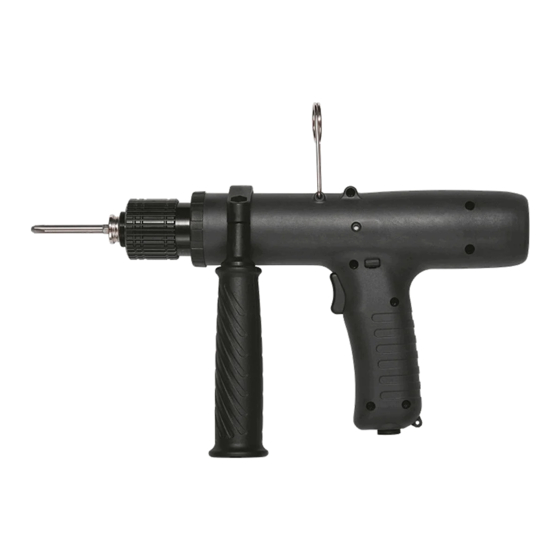

DC-TYPE Automatic Non Carbon-Brush Series
KILEWS INDUSTRIAL CO., LTD.
SKD-TBN60L
SKD-TBN90L
SKD-TBN120L
SKD-TBN180L
SKD-RBN60L
SKD-RBN90L
SKD-RBN120L
SKD-RBN180L
Attention!
RBN180L/P is belonging to high torque
series.
For safety consideration, please
collaborate it with Auxiliary Arm
(KP-AUXA).
http://www.kilews.com
SKD-RBN60P
SKD-RBN90P
SKD-RBN120P
SKD-RBN180P
Y2F120A-E-003
Advertisement
Table of Contents
Related Manuals for Kilews SKD-TBN60L
Summary of Contents for Kilews SKD-TBN60L
- Page 1 SKD-TBN90L SKD-TBN120L SKD-TBN180L SKD-RBN60L SKD-RBN60P SKD-RBN90L SKD-RBN90P SKD-RBN120L SKD-RBN120P SKD-RBN180L SKD-RBN180P Attention! RBN180L/P is belonging to high torque series. For safety consideration, please collaborate it with Auxiliary Arm (KP-AUXA). DC-TYPE Automatic Non Carbon-Brush Series KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F120A-E-003...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed.
-
Page 3: Important Safety Rules
Important Safety Rules Read all instructions Failure to follow all instructions listed below may result in electric shock WARNING! fire and/or serious injure. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 4) Power tool Use and Care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use power tool if switch does not turn it on or off.
-
Page 5: Do Not Operate This Tool Without Protective Earth Connected
WARNING！ DO NOT OPERATE THIS TOOL WITHOUT PROTECTIVE EARTH CONNECTED Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE ! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. - Page 6 Operations Cautions 1)Before changing bits from RBN Series screwdriver, make sure the Forward / Reverse switch stays at “OFF”position. Before changing bits from TBN Series screwdriver, make sure the Forward / Reverse switch stays at the middle position. The screwdriver must be unplugged. 2) To avoid damaging the housing of screwdriver, do not allow chemicals get in touch with housing of screwdriver.
-
Page 7: Description Of Operation
CAUTION ● Do not drop or abuse the tool. ● Whenever a tool is not being used, position the Power Switch to the “OFF” position and unplug the power cord. Description of Operation Attaching / detaching bit and bit type Push up the holder clamp by finger tip, and it will be unlocked. -
Page 8: Do Not Attempt To Repair This Electric Screw Driver
2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. 3. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. -
Page 9: Specifications
Specifications MODEL SKD-TBN60L SKD-TBN90L SKD-TBN120L SKD-TBN180L Input voltage(DC) DC 40V Power Consumption Torque (N.m) 4~12 6~18 Repeatable Torque Accuracy ±5% Torque Adjustment Stepless Unloaded Rotation Speed 1000 (R.p.m) )±10% Machine 4.0~5.0 5.0~6.0 ≤8 ≤10 screw(mm) Screw Size Dia Tapping ≤4... - Page 10 No. 2．． ．．Bit use in dia 3.0~4.0mm screw SKD-TBN B/W with BIT(socket) 2 Pcs (1 Pcs) SKD-RBN B/W with BIT(socket) 2 Pcs (1 Pcs) 2、Suspension rack and Torque fixing ring acceptable for use with the tool are available from KILEWS catalogue. ...
-
Page 11: Torque Adjustment Operation
7. If turn to “LO”on the power supplier, the screwdriver can’t offer high watt output, the torque on the screwdriver should be adjust under middle range to use. 8. Please refer to Kilews website http://www.kilews.com for the detail component list. ... - Page 13 DANMARK: EF/EC/EU OVERENSSTEMMELSESERKLÆRING U.K. & IRELAND: EC/EU DECLARATION OF CONFORMITY DEUTSCHLAND: EG/EU KONFORMITÄTSERKLÄRUNG SVERIGE: EG/EU ÖVERENSSTÄMMELSE FÖRSÄKRAN VI, HIMOUNT INDUSTRIAL CO., LTD.No.68-9, Ln. 506, Sec. 1, Xinan Rd., Wuri Dist., Taichung City 414, Taiwan, ERKLÆRER HERVED UNDER VORT FULDE ANSVAR AT PRODUKTET, SOM DENNE ERKLÆRING ER GÆLDENDE FOR, ER I OVERENSSTEMMELSE MED DE KRAV SOM FINDES I EUROPA-PARLAMENTETS OG RÅDETS DIREKTIV AF 17.
