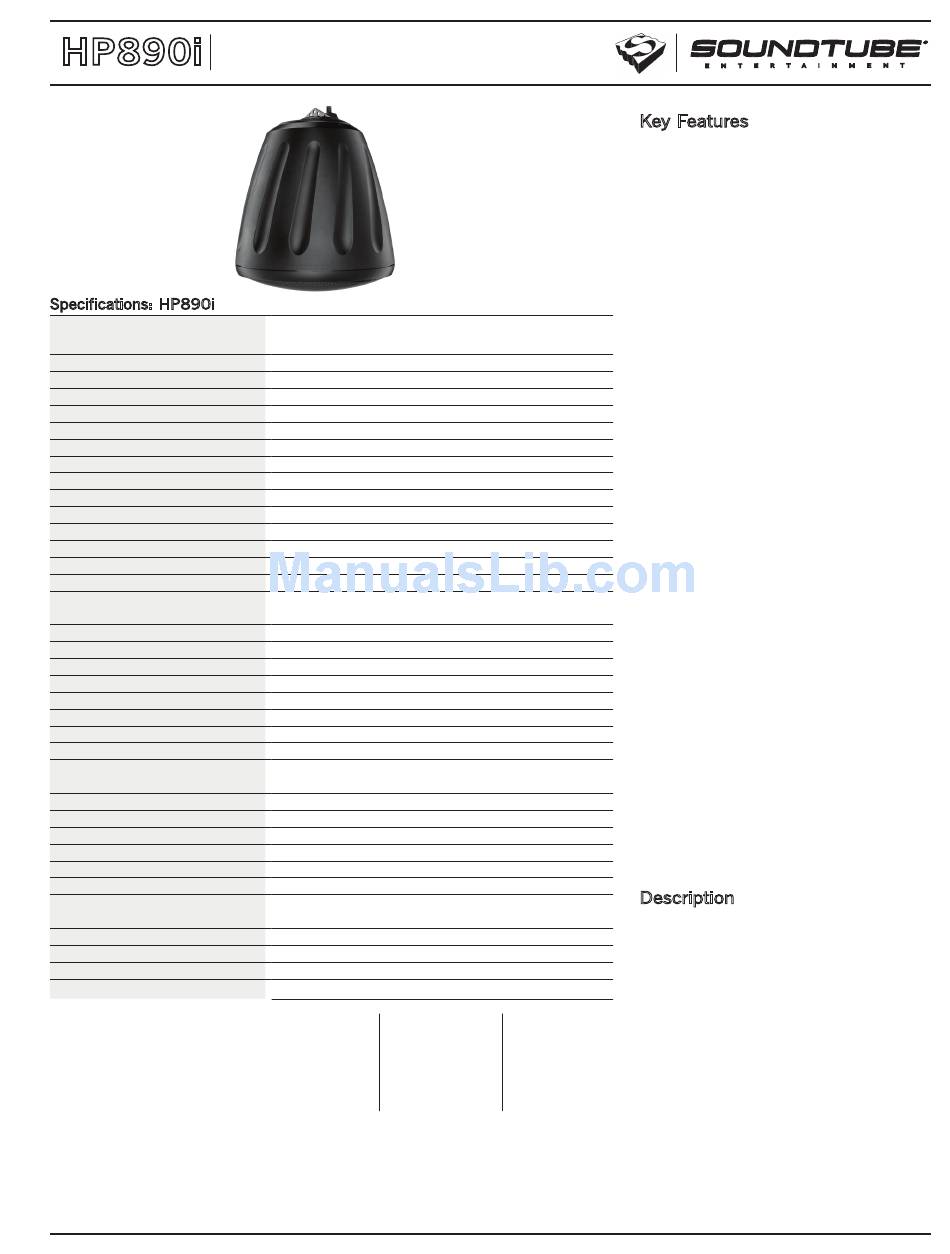

SoundTube HP890i Specifications

HP890i
Open-Ceiling Speaker
Technical Information for System Engineers
Specifications: HP890i
System Type
Impedance (nominal) 1
Sensitivity dB @ 2.83 V/1 m
Sensitivity dB @ 1W/1M 2
Frequency Response ( - 3 dB) 3
Frequency Response ( - 10 dB)
4
Max. Program Power
5
Max. Continuous Power RMS
Max. Power SPL @ 1 m 6
Coverage Angle (-6 dB @ 2 kHz)
Coverage Angle (-6 dB @ 10 kHz)
Coverage Angle (averaged 2-10 kHz)
Directivity Factor (Q)
Directivity Index (DI)
Tap Selector
Transducer - High-Frequency Driver
Transducer - Low-Frequency Driver
Low-Frequency Voice Coil
Crossover Frequency
Network Type: Low Pass
Network Type: High Pass
Enclosure Material
Motorboard
Grille
Inputs
Colors
Height
Diameter
Weight
Shipping Weight
Packaging
Included Accessories
Optional Accessories
Regulatory - UL
Regulatory - CE
Impedance listed per IEC 60268-5 with
1
a minimum less than 80% the nominal
impedance
1 W 1 m sensitivity determined using nomi-
2
nal impedance
Frequency response measured in half or
3
full space as dictated by speaker mounting
configuration
Max program power is 3 dB above max
4
continuous power
Continuous power rating, EIA-426-B test
5
Max output based on max continuous power
6
© 2009 SoundTube Entertainment, Inc. All rights reserved. PN TS-HP890i REV 08.03.09
8-inch, two-way, high-power, open-ceiling, ported (120-watt
transformer for 25/70.7/100-volt or voice coil direct)
8 ohms
94.0 dB
94.0 dB
93 Hz - 22 kHz
3
65 Hz - 22 kHz
250 W
125 W
115.0 dB
130º
85º
115º
4.2 (averaged 100 Hz - 10 kHz); 3.5 (2 kHz)
5.4 dB (averaged 100 Hz - 10 kHz); 5.4 dB (2 kHz)
Five-position rotary switch with voice coil direct
36 mm (1.42 in.) titanium compression driver with wave-
guide
203 mm (8.0 in.) treated paper cone, cloth surround
34.0 mm (1.34 in.)
2.5 kHz
12 dB per octave, 2nd order
12 dB per octave, 2nd order
Injection molded ABS, glass fiber reinforced
Cast Aluminum
Steel with powder-coat finish
Four-pin, 5 mm Euroblock for individual or daisy chain con-
nection
Black or white
437.6 mm (17.23 in.)
376.4 mm (14.82 in.)
12.2 kg (26.8 lbs.)
14.7 kg (32.3 lbs.)
One per box
Hanging hardware, Euroblock connector and terminal
weather boot
Surface-mount bracket (AC-RS-SM8)
UL 1480 and 2239 (hanging cable) approved
Approved
Transformer Taps
70.7 V Output 100 V
120 W 115.0 dB 120 W
60 W 112.0 dB 60 W
30 W 109.0 dB 30 W
15 W 106.0 dB
Mounting hardware included
Output 25 V Output
115.0 dB 15 W 106.0 dB
112.0 dB 8 W 103.0 dB
109.0 dB 3.8 W 100.0 dB
1.9 W 97.0 dB

Key Features

• Patented BroadBeamHP
®
technology delivers a consistent disper-
sion pattern for maximum intelligibility
and edge-to-edge coverage (up to 8 kHz,
independently verified).
• One 203 mm (8 in.) treated fiber woofer
and one 36 mm (1.42 in.) compression
driver (1.0 inch exit) mounted to a pro-
prietary cast-aluminum M8
heat sink.
• High output (115.0 dB) and 120-watt
transformer for the sound reinforcement
and PA markets.
• Average sensitivity of 94.0 dB offers
high output capabilities and reduced
amplification costs.
• Weatherized components for indoor and
outdoor applications.
• Patented ZeroReflection™ enclosure
technology for optimal sound reproduc-
tion and cabinet rigidity.
• Includes hanging hardware with
aircraft cables and integrated Speed-
Clamp self-locking wire grip for
™
fast, easy and secure installation. Also
includes Euroblock connector and ter-
minal weather boot.
• UL 1480 and 2239 (hanging cable)
approved.
• Easy-access five-position selectable tap
switch for 25-, 70.7- and 100-volt applica-
tions with voice coil direct position sim-
plifies ordering and inventory tracking.
• Optional accessory: AC-RS-SM8 bracket
for surface-mount applications.
• High-quality black or white paint finish.
Custom paint colors optional.
Description

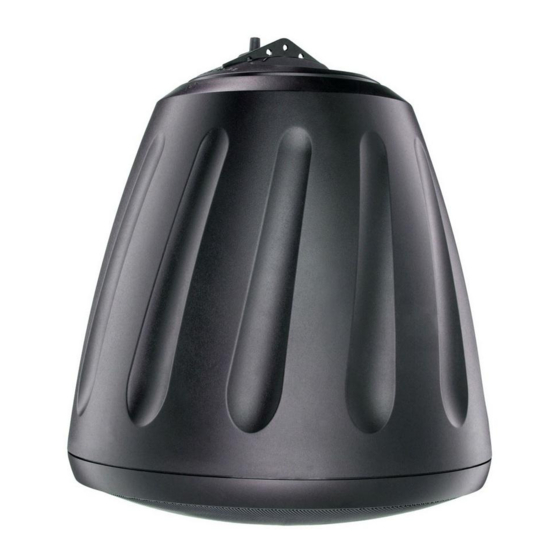

The HP890i is a premium 8-inch, two-
way, ported, high-efficiency, high-SPL
loudspeaker for distributed or 8 ohm
applications. The HP890i incorporates a
dedicated 8-inch treated-fiber driver and
high-power compression transducer with
a BroadBeamHP® waveguide to deliver a
consistent dispersion pattern and superb
intelligibility for the foreground music,
sound reinforcement and PA markets.
The HP890i incorporates a 120-watt trans-
former with a five-position rotary switch
with a voice coil direct position. Hanging
hardware is included and features a fast-
action SpeedClamp™ for easy and secure
installation.
waveguide
baffle and
™
