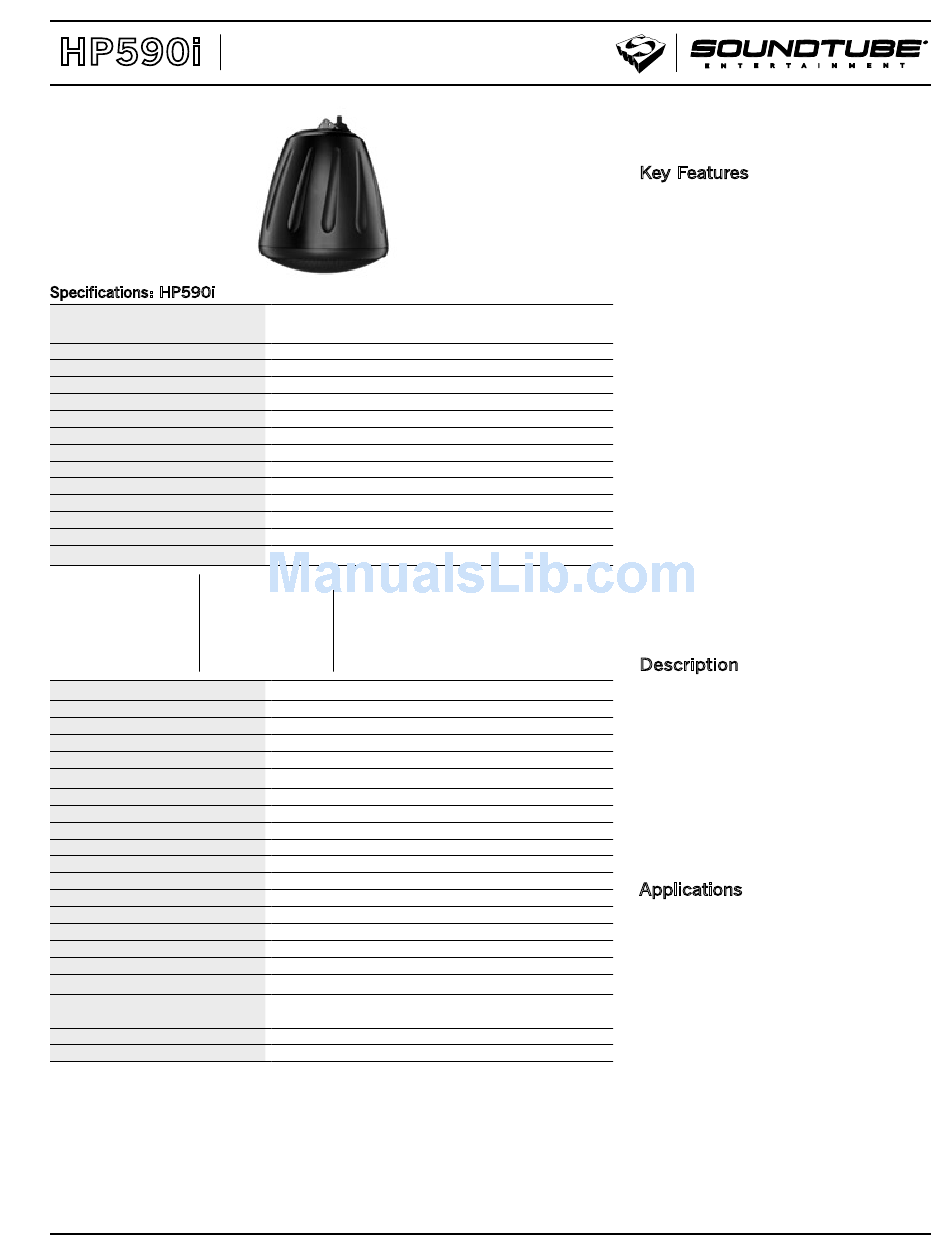

SoundTube HP590i Technical Information

HP590i
Specifications: HP590i
System Type
1
Frequency Response (- 3 dB)
Low Frequnecy (-10 dB) 1
Max. Program Power
Max. Continuous Power 2
Max. SPL dB @ 1 M
3
Sensitivity dB @ 1W/1M
Impedance (nominal)
Coverage Angle (-6 dB @ 500 Hz)
Coverage Angle (-6 dB @ 4 kHz)
Directivity Factor (Q)
Directivity Index (DI)
Tap Selector
Transformer Taps
70.7 V Output 100 V
33 W 104.5 dB 33 W
17 W 102 dB 17 W
9 W 99 dB 9 W
6 W 97.5 dB 6 W
3 W 94.5 dB
Transducers
Low Frequency Driver
High Frequency Driver
Low Frequency Voice Coil
Crossover Frequency
Network Type
Low Pass
High Pass
Enclosure Material
Motor Board
Grille
Inputs
Colors
Height
Width (including bracket)
Weight
Shipping Weight
Accessories
Included
Optional
Packaging
1 Frequency response is measured in full space and includes a low-frequency peak > + 3 dB.
2
Continuous power rating, EIA-426-B test.
3 2.83 Volts at a distance of 1 meter.
SoundTube continually develops new product innovations and improvements. Updates to existing
products without prior notice are an example of SoundTube's drive for constant improvement.
© 2006 SoundTube Entertainment. All rights reserved. PN TS-HP590 REV 03.03.06
Open Ceiling Speaker
Preliminary Technical Information for System Engineers
5.25" Coax, open-ceiling, ported (33 Watt transformer for
25/70.7/100 Volt or voice coil / 8 Ohm direct)
74 Hz - 22 kHz
64 Hz - 20 kHz
160 Watts
80 Watts
108.5 dB
89.5 dB
8 Ohm (nominal value)
360º (average)
96º (average)
6.56 (Averaged 100 Hz - 10 kHz); 9.31 @ 2 kHz
6.01 dB (Averaged 100 Hz - 10 kHz); 9.69 dB @ 2 kHz
6-Position rotary switch with voice coil direct (8 Ohm)
Output 25 V Output
104.5 dB 5 W 96.5 dB
102 dB 2.5 W 93.5 dB
99 dB 1.3 W 90.5 dB
97.5 dB 0.63 W 87.5 dB
1 x 133 mm (5.25 in) Polypropylene cone, butyl rubber surround
25 mm (1.0 in) Convex aluminum horn-loaded tweeter
25 mm (1.0 in)
3 kHz
N/A
12 dB per octave, 2nd order
Drawn aluminum backcan with ABS baffle
Cast aluminum
Iridite-plated steel with powder-coat finish
4 Pin, 5 mm Euroblock for individual or daisy chain connection
Black or white
298.3 mm / 11.74 in
245.9 mm / 9.68 in
4.3 kG / 9.5 lbs
10 kG / 22.0 lbs (2 per box)
Hanging hardware, Euroblock connector & terminal
weather boot
N/A
2 Per box, can ship as single
Mounting hardware included

Key Features

• High-power output (108.5 dB) for longer
throw and higher SPL requirements.
• One 133 mm (5.25 in) polypropylene
woofer and one 25 mm (1.0 in) horn-
loaded convex aluminum dome tweeter
mounted to a proprietary cast-alumi-
num HP5 baffle & heat sink.
TM
• 89.5 dB Average sensitivity offers
high output capabilities and reduced
amplification costs.
• Weatherized components for indoor/out-
door applications.
• Includes hanging hardware with
aircraft cables and integrated Speed-
Clamp self-locking wire grip for fast,
TM
easy & secure installation. Also includes
Euroblock connector & terminal weather
boot.
• Easy access 6-position selectable tap
switch for 25, 70.7 & 100 Volt applica-
tions with voice coil/8 Ohm direct sim-
plifies ordering and inventory tracking.
• High quality black or white paint finish.

Description

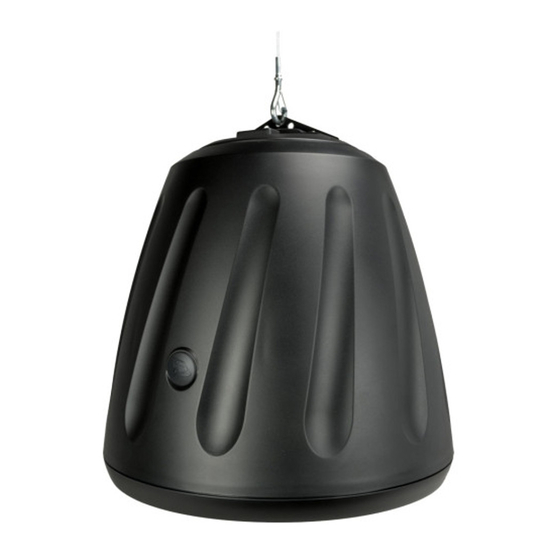

The HP590i is a high-powered 5.25"
2-way horn-loaded loudspeaker in a
ported open-ceiling enclosure design.
The HP590i incorporates a low-profile
grille, proprietary HP5
TM
and 6-position tap switch with voice
coil/8 Ohm direct. Hanging hardware
is included and features a fast- action
SpeedClamp for easy and secure
TM
installation.

Applications

Engineered for high-SPL and effective
low-end response (64 Hz @ - 10 dB), the
HP590i delivers consistent foreground
music, sound reinforcement and PA for
applications requiring longer throw
or higher volume. For indoor/outdoor
applications, the HP590i incorporates
a powder-coated, iridite-plated steel
grille, polypropylene driver and durable
enclosure design. The HP590i is ideal for
open-ceiling music & paging applications
with high ambient noise levels including
casinos, warehouses, airports, transporta-
tion & shipping centers, schools, gyms,
arenas and stadiums. For additional bass,
SoundTube's RS801i subwoofer offers bass
response to 40 Hz.
motor-board
