SoundTube CM82-EZ Specifications

CM82-EZ
Specifications: CM82-EZ
System Type
Impedance (nominal) 1
Sensitivity dB @ 2.83V/1M
Sensitivity dB @ 1W/1M
2
Frequency Response (- 3 dB)
Frequency Response (-10 dB)
Max. Program Power
4
Max. Continuous Power RMS
Max. Power SPL @ 1 M 6
Coverage Angle (-6 dB @ 2 kHz)
Coverage Angle (-6 dB @ 10 kHz)
Coverage Angle
Directivity Factor (Q)
Directivity Index (DI)
Tap Selector
Transducer - Low Frequency Driver
Transducer - High Frequency Driver
Low Frequency Voice Coil
Crossover Frequency
Network Type: Low Pass
Network Type: High Pass
Enclosure Material
Grille
Inputs
Colors
Backcan Diameter
Backcan Height
Visible Diameter
Visible Height
Mounting Hole Diameter
Min / Max Ceiling Thickness
Weight
Shipping Weight
Accessories
Included
Optional
Packaging
Regulatory - UL
Regulatory - CE
Impedance listed per IEC 60268-5
1
1w1m sensitivity determined using nominal
2
impedance
Frequency response measured in half or
3
full space as dictated by speaker mounting
configuration
Max program power is 3 dB above max
4
continuous power
Continuous power rating, EIA-426-B test
5
Max output based on max continuous power
5
Max useable SPL based on testing
6
by NWAA Labs
© 2008 SoundTube Entertainment. All rights reserved. PN-TS-CMEZ REV 06.12.08
In-Ceiling Speaker
Technical Information for System Engineers
8" Coax, in-ceiling, sealed (64 Watt transformer for
25/70.7/100 Volt or 16 Ohm direct)
16 ohm
88.3 dB
91.3 dB
3 90 Hz - 22 kHz
3 45 Hz - 22 kHz
128 w
5 64 w
109.4 dB
110º
50º
80º (Avg. 2 - 10 kHz)
4.2 (Avg. 100 Hz - 10 kHz) ; 4.3 (2 kHz)
5.6 dB (Avg. 100 Hz - 10 kHz) ; 6.3 DB (2 kHz)
5-Position rotary switch with 16 ohm direct
203 mm (8 in) Polypropylene cone, butyl rubber surround
25 mm (1in) Silk tweeter
25.4 mm / 1.00 in
5.0 kHz
6 dB per octave, 1st order
6 dB per octave, 1st order
Drawn steel backcan with ABS baffle
Iridite-plated steel with powder-coat finish
18-Gauge hard wired leads
Black or white
9.67 in / 245.6 mm
5.75 in / 146.1 mm
11.75 in / 298.5 mm
0.34 in / 8.6 mm
10.50 in / 266.7 mm
0.035 in / 0.9 mm – 1.60 in / 40.6 mm
9.0 lb
10.0 lb
Tile bridge, UL listed flex conduit clamp, paint shield cutout
template, wire nuts
Pre-Construction Bracket (AC-CMEZ6/8-PCB)
1 per box
Approved 2043 & 1480
Approved
Transformer Taps
70.7 V Output 100 V Output
64 w 109.5 dB 64 w 109.5 dB
32 w 106.5 dB 32 w 106.5 dB
16 w 103.5 dB 16 w 103.5 dB
8 w 100.5 dB
Preliminary Technical Information

Key Features

• One 203 mm (8 in) polypropylene woofer
with cloth surround and one 25.4 mm
(1.0 in) silk tweeter.
• Reduced amplification costs and maxi-
mum efficiency 91.3 dB sensitivity, 16
Ohm impedance and a sealed enclosure.
• Superior voice intelligibility with an
Tile bridge included
average coverage angle of 77° (Indepen-
dently verified, 2 – 10 kHz).
• Easy-access 5-position tap switch for
25/70.7/100 Volt and 16 Ohm settings
allows for easy ordering, stocking and
installation.
• Incorporates a painted steel grille for
lasting durability.
• UL 1480 & 2043, cUL, CE (EMC Direc-
tive 89/366/EEC, EN55020, EN55013)
approved.
• Adaptable to material thicknesses rang-
ing from 0.04 in (0.9 mm) to 1.60 in (40.6).
• Included accessories: Tile bridge, UL
listed 0.5" conduit clamp, paint shield &
2 wire nuts.
• Optional accessories: Color-coded pre-
construction bracket (AC-CMEZ6/8-PCB)
and Junction Box (AC-CM-EZ-PCB).
• High-quality black or white painted fin-
ish. Custom colors available.
Description

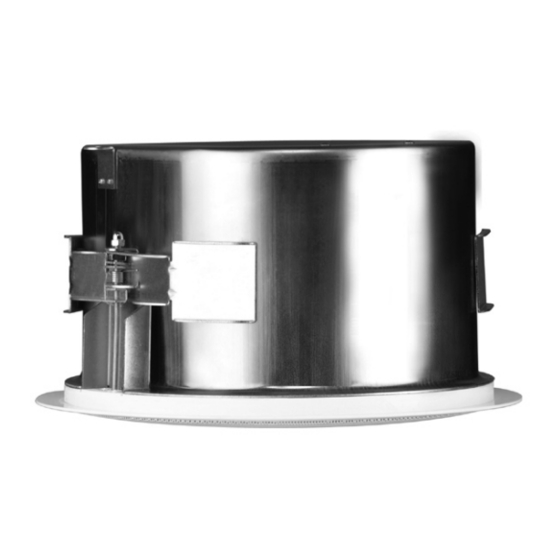

The CM82-EZ is a 8" coaxial 2-way
blind-mount in-ceiling speaker which
delivers true high-efficiency and perfor-
mance across the operating bandwidth.
By incorporating a 8" polypropylene
driver with a butyl rubber surround in a
sealed drawn steel backcan, this speaker
delivers maximum frequency response
(45 Hz – 22 kHz, - 10 dB) an integrated
enclosure design.
Mounting hardware is included and
features a constant-tension mounting
system with a 21 gauge "full-metal" steel
tile bridge ensuring rapid and secure
installation in any sheetrock or drop-tile
application. For easy ordering, stock-
25 V Output
ing and installation, this series includes
8 w 100.5 dB a color-coded (green) tile bridge and
optional pre-construction bracket, 5-posi-
4 w 97.5 dB
2 w 94.5 dB tion tap switch for 25, 70.7 & 100 V appli-
cations with voice coil/16 Ohm bypass.
1 w 91.5 dB
