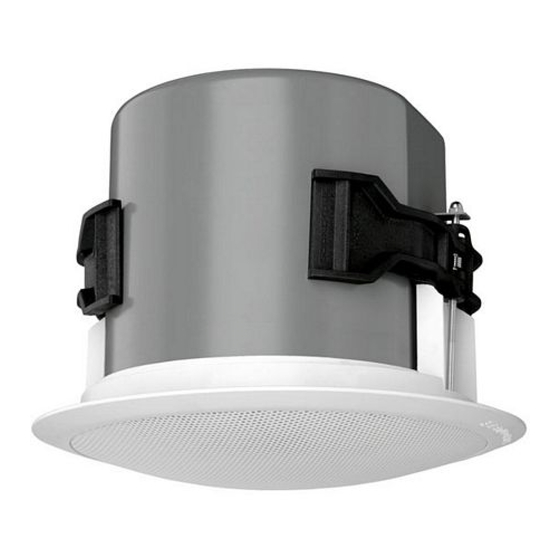

SoundTube CM590i Install Instructions

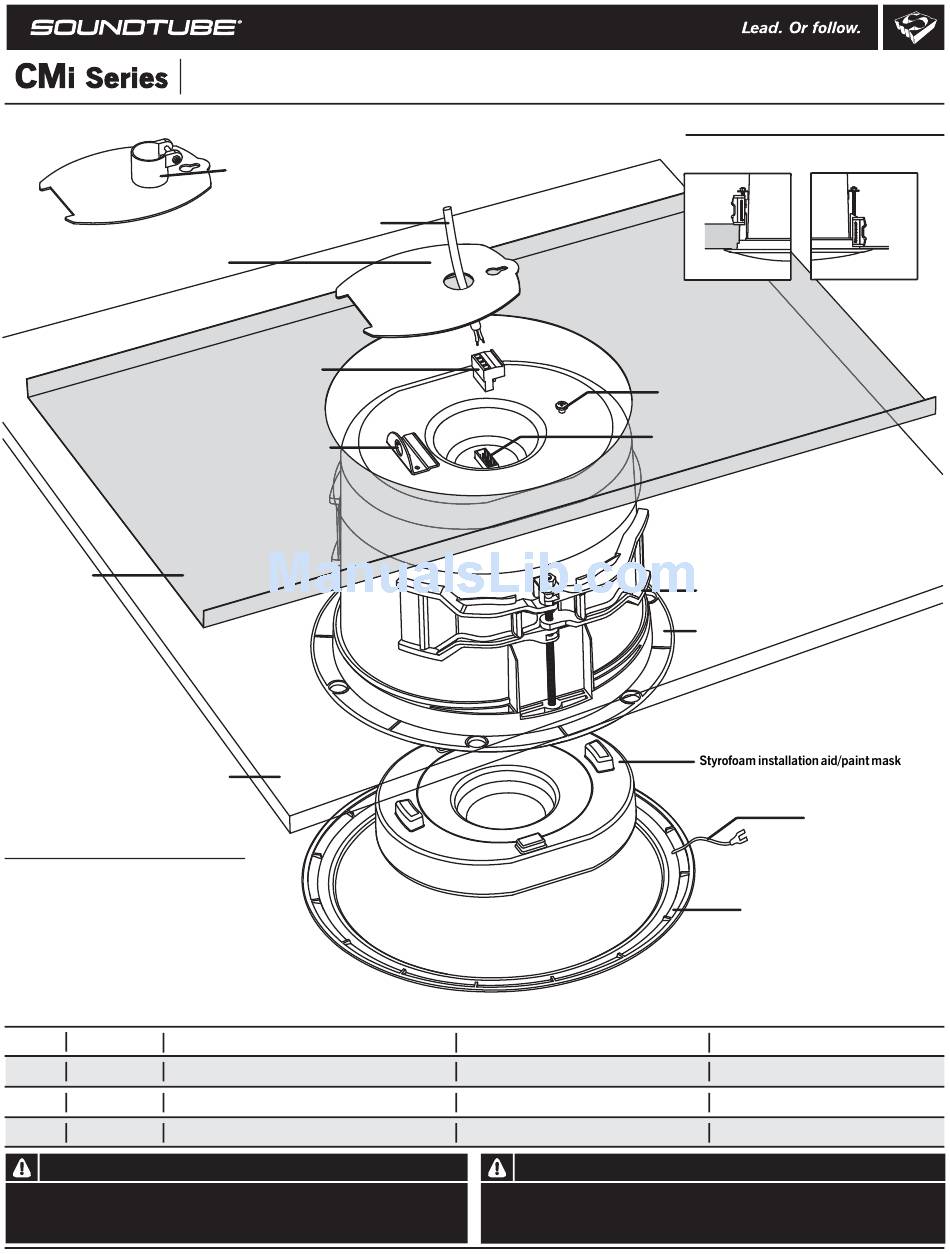

Cover plate
Seismic restraint anchor tab
Tile bridge
Ceiling tile
Box contents
1 Speaker
1 Euroblock connector
1 Grille and bezel
1 Styrofoam installation aid/paint mask
1 Cover plate
1 Tile bridge
Transformer Taps Settings
Voice Coil
70.7 Volt Transformer Taps (dB)
CM500i
8 Ohm=107 dB 33W=102, 17W=99, 9W=96, 6W=93, 3W=90
CM800i
8 Ohm=113 dB 66W=110, 35W=107, 19W=104, 10W=101, 5W=98
CM801i 4 Ohm=113 dB 66W=110, 35W=107, 19W=104, 10W=101, 5W=98
Warning
S o u n d Tu b e s p e a k e r s m u s t b e i n s t a l l e d b y a p r o f e s s i o n a l a u d i o
installer/contractor. For safety and for optimum audio performance,
installer must follow all directions issued by SoundTube Entertainment.
Droptile Ceiling Install Instructions For:
CM590i, CM500i, CM800i & CM801i speakers
Strain relief (not included) may
be used with cover plate .
Signal wire
Euroblock connector
1.435.647.9555
© 2005 SoundTube Entertainment, Inc. All rights reserved. PN INS-CMI Rev 01.27.05
100 Volt Transformer Taps (dB)
33W=102, 17W=99, 9W=96, 6W=93
66W=110, 35W=107, 19W=104, 10W=101
66W=110, 35W=107, 19W=104, 10W=101
Warning
Do not spec or install speaker near support beam, ventilation
duct or other structure that may interfere with speaker function
or dispersion.
| |
800.647.TUBE www.soundtube.com
Ceiling thickness tolerances
Max Min
42.9 mm (1.69 in) 6.4 mm (0.25 in)
Cover plate clamping screw
Euroblock jack
Speed Wing™ mounting arms
Baffle
Grille and bezel
seismic restraint
Grille and bezel
25 Volt Transformer Taps (dB)
3W=90, 1.5W=87, .75W=84, .38W=81
5W=98, 2.5W=95, 1.25W=92, .75W=89
5W=98, 2.5W=95, 1.25W=92, .75W=89
