SoundTube CM5800i Technical Information

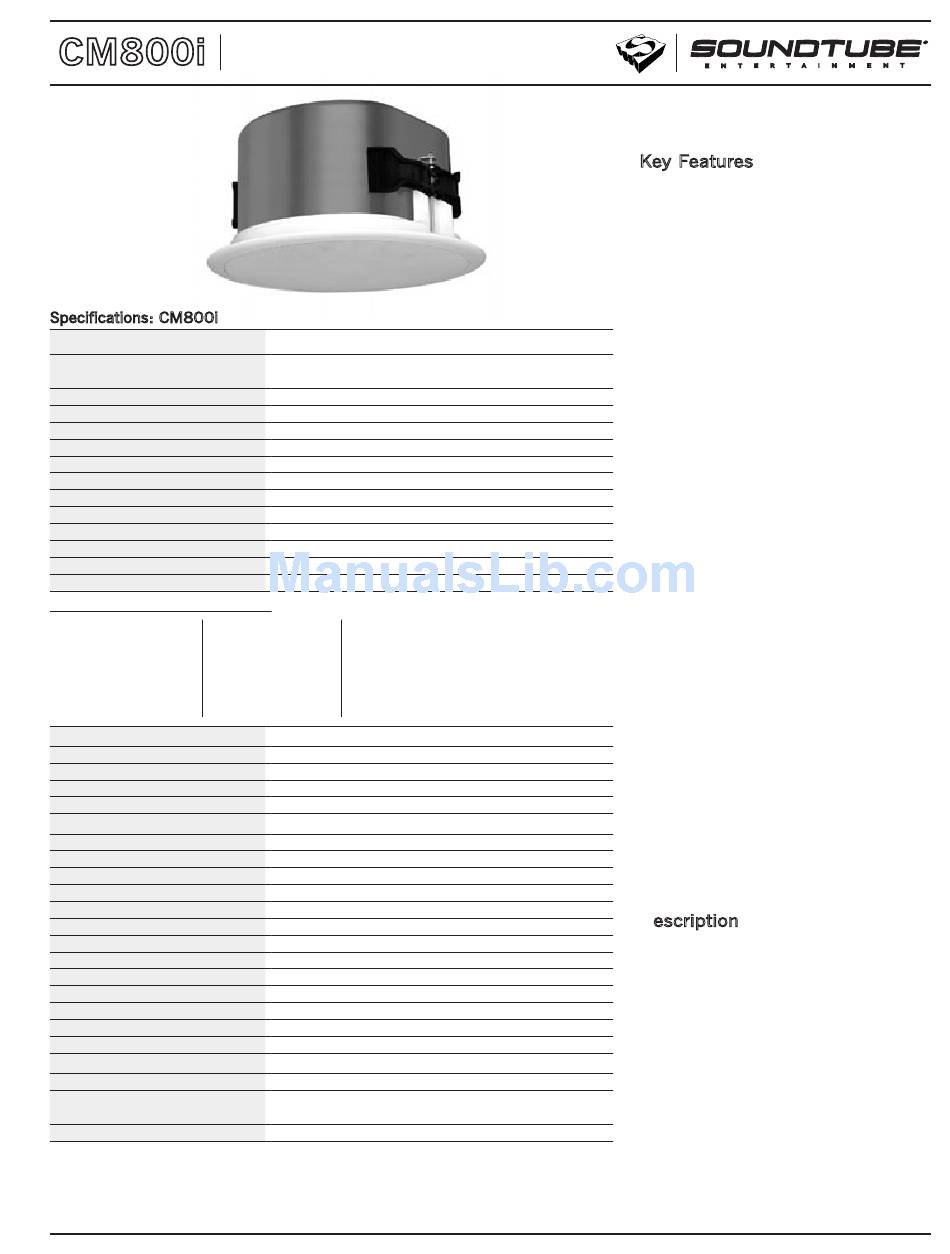

CM800i
Specifications: CM800i
System Type
1
Frequency Response (-3 dB)
1
Low Frequnecy (-10 dB)
Max. Program Power
2
Max. Continuous Power RMS
Max. SPL dB @ 1 M RMS
3
Sensitivity dB @ 1W/1M
Impedance (nominal)
Coverage Angle (-6 dB @ 2 kHz)
Coverage Angle (-6 dB @ 10 kHz)
Directivity Factor (Q)
Directivity Index (DI)
Tap Selector
Transformer Taps
70.7 V Output 100 V
64 W 111.5 dB 64 W
32 W 108.5 dB 32 W
16 W 105.5 dB 16 W
8 W 102.5 dB 8 W
4 W 99.5 dB
Transducer
Low Frequency Driver
High Frequency Driver
Low Frequency Voice Coil
Crossover Frequency
Network Type
Low Pass
High Pass
Enclosure Material
Motor Board
Grille
Inputs
Colors
Backcan Diameter
Backcan Height
Visible Diameter
Visible Height
Weight
Shipping Weight
Accessories
Included
Optional
Packaging
1 Frequency response is measured in half space and includes a low-frequency peak > + 3 dB.
2 Continuous power rating, EIA-426-B test.
3 2.83 Volts at a distance of 1 meter.
SoundTube continually develops new product innovations and improvements. Updates to existing
products without prior notice are an example of SoundTube's drive for constant improvement.
© 2003 SoundTube Entertainment, Inc. All rights reserved. REV 07.20.04
In-Ceiling Speaker
Technical Information for System Engineers
8" Coax, in-ceiling, ported (64 Watt transformer for
25/70.7/100 Volt or voice coil/8 Ohm direct)
85 Hz - 22 kHz
60 Hz - 22 kHz
250 Watts
125 Watts
114.5 dB
93.5 dB
8 Ohm (nominal value)
100º
100º
5.00 (Averaged 100 Hz - 10 kHz); 8.05 @ 2 kHz
6.08 dB (Averaged 100 Hz - 10 kHz); 9.06 dB @ 2 kHz
6-Position rotary switch with voice coil/8 Ohm direct
Output 25 V
111.5 dB 4 W
108.5 dB 2 W
105.5 dB 1 W
102.5 dB .5 W
1 x 203 mm (8.0 in) Polypropylene cone, butyl rubber surround
25 mm (1.0 in) Convex aluminum tweeter with waveguide
30.4 mm (1.2 in)
3 kHz
12 dB per octave, 2nd order
12 dB per octave, 2nd order
Drawn aluminum backcan with ABS baffle
Cast aluminum
Iridite-plated steel with powder-coat finish
4 Pin, 5 mm Euroblock for individual or daisy chain connection
Black or white
296.7 mm / 11.68 in
201.7 mm / 7.94 in
27.5 mm / 1.08 in
375.0 mm / 14.76 in
5.7 kG / 12.5 lbs
17.7 kG / 39 lbs (2 per box, includes tile bridges)
Tile bridge, Euroblock connector & installation aid
Pre-Construction Bracket (AC-CM8-PCB), Junction Box
(AC-CM-JBOX) & architectural Square Grille (AC-CM8-SG)
2 Per box
Tile bridge included
Output
99.5 dB
96.5 dB
93.5 dB
90.5 dB

Key Features

®
• BroadBeam11 waveguide technology
delivers a consistent BroadBeam
persion pattern for maximum coverage
area per speaker (up to 10 kHz, EASE
documented).
• One 203 mm (8.0 in) polypropylene
woofer and one 25 mm (1.0 in) convex
aluminum tweeter with FerroFluid™
cooling mounted to a proprietary cast-
™
aluminum M8 baffle and heat sink.
• Rapid-installation blind-mount, fixed-
wing mounting mechanism with con-
stant-tension design affixing to ceiling
thickness tolerances ranging from 6.4
mm (0.25 in) to 42.9 mm (1.69 in).
• Separate tool-free magnetic grille &
bezel assembly for ease of install &
in-field painting.
• Iridite-plated steel grille with protective
powder-coated finish for lasting durability.
• Easy access 6-position selectable tap
switch for 25, 70.7 and 100 Volt applica-
tions with voice coil/8 Ohm direct sim-
plifies ordering & inventory tracking.
• 93.5 dB average sensitivity offers high-
output capabilities & reduced amplifi-
cation costs.
• UL 1480 & 2043, CE (EMC Directive
89/366/EEC, EN55020, EN55013), Mil-
spec 810 & IEC529 approval pending.
• Included accessories: Tile bridge,
Euroblock connector & paint mask.
• Optional accessories: Pre-Construction
Bracket, Junction Box and Square Grille
for architectural specifications.
• High-quality black or white paint
finish. Custom paint colors optional.
Description

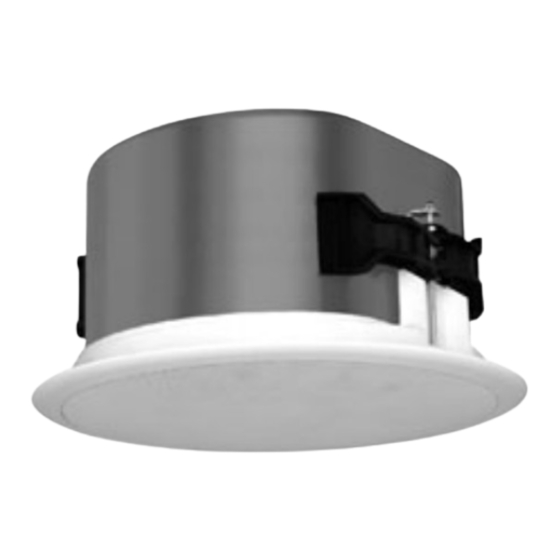

The CM800i is an 8" 2-way blind-mount
in-ceiling speaker design that delivers
extended low-end response (60 Hz) and
optimal off-axis performance (up to 10
™
kHz, EASE documented). SoundTube's
®
proprietary BroadBeam11
tweeter system delivers consistent high-
performance audio across the operating
bandwidth. The CM800i speaker design
incorporates a low-profile grille, propri-
™
etary M8 motor-board and 6-position
tap switch with voice coil/8 Ohm direct.
Mounting hardware is included & features
a fast & secure constant tension fixed-wing
mounting system.
™
dis-
™
waveguide
