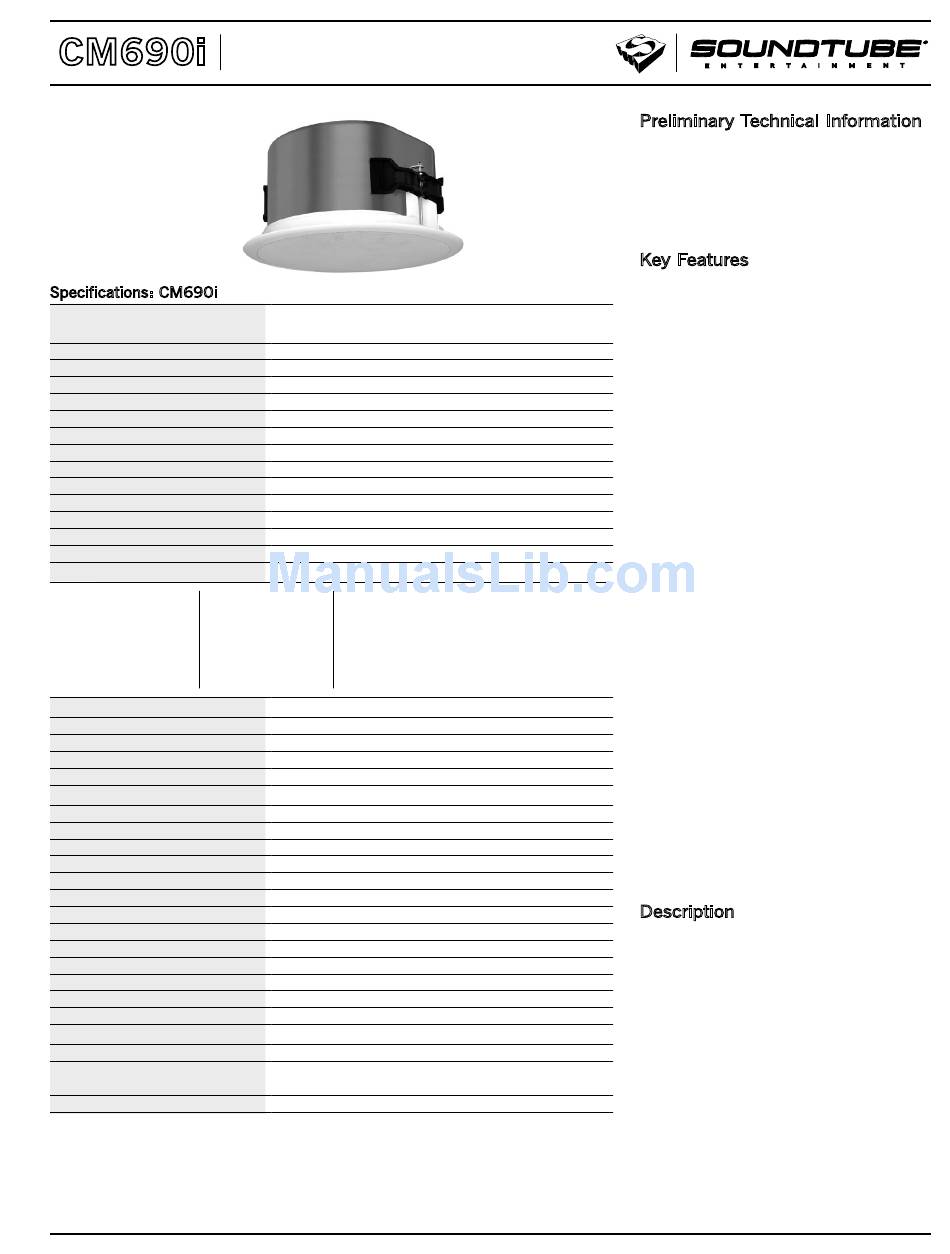

SoundTube CM690i Technical Information

CM690i
Specifications: CM690i
System Type
Frequency Response (- 3 dB) 1
Low Frequency (-10 dB)
1
Max. Program Power
Max. Continuous Power RMS
2
Max. UL program power
3
Max. SPL dB @ 1 M
Sensitivity dB @ 1W/1M
4
Impedance (nominal)
Coverage Angle (-6 dB @ 2 kHz)
Coverage Angle (-6 dB @ 8 kHz)
Directivity Factor (Q)
Directivity Index (DI)
Tap Selector
Transformer Taps
70.7 V Output 100 V
66 W 111 dB 66 W
35 W 108.5 dB 35 W
19 W 106 dB 19 W
10 W 103 dB 10 W
5 W 100 dB
Transducers
Low Frequency
High Frequency
Low Frequency Voice Coil
Crossover Frequency
Network Type
Low Pass
High Pass
Enclosure Material
Motor-Board
Grille
Inputs
Colors
Backcan Diameter
Backcan Height
Visible Diameter
Visible Height
Weight
Shipping Weight
Accessories
Included
Optional
Packaging
1
Frequency response is measured in half space and includes a low-frequency peak > + 3 dB.
2 Continuous power rating, EIA-426-B test.
3
UL testing specifies band-limited pink noise over the indicated frequency spectrum.
4 2.83 Volts at a distance of 1 meter.
SoundTube continually develops new product innovations and improvements. Updates to existing
products without prior notice are an example of SoundTube's drive for constant improvement.
© 2006 SoundTube Entertainment. All rights reserved. PN TS-CM690 REV 04.04.06
In-Ceiling Speaker
Preliminary Technical Information for System Engineers
6.5" Coax, compression tweeter w/ 1" exit, in-ceiling, ported (66
Watt transformer for 25/70.7/100 Volt or voice coil / 8 Ohm direct)
72 Hz - 22 kHz
64 Hz - 22 kHz
200 Watts
100 Watts
70 Watts
113 dB
93 dB
8 Ohm
120º
150º
4.97 (Averaged 100 Hz - 10 kHz); 6.47 @ 2 kHz
6.22 dB (Averaged 100 Hz - 10 kHz); 8.11 dB @ 2 kHz
6-Position rotary switch with voice coil direct (8 Ohm)
Output 25 V Output
111 dB 5 W 100 dB
108.5 dB 2.5 W 97 dB
106 dB 1.25 W 94 dB
103 dB 0.75 W 92 dB
1 x 165 mm (6.5 in) Treated fiber cone, cloth surround
1 Compression driver with waveguide and a 25.4 mm (1") exit
34 mm (1.36 in)
3 kHz
18 dB per octave, 3rd order
18 dB per octave, 3rd order
Drawn aluminum backcan with ABS baffle
Cast aluminum
Iridite-plated steel with powder-coat finish
4 Pin, 5 mm Euroblock for individual or daisy chain connection
Black or white
296.7 mm / 11.68 in
201.7 mm / 7.94 in
375.0 mm / 14.76 in
27.5 mm / 1.08 in
5.8 kG / 12.8 lbs
N/A
Tile bridge, Euroblock connector, back cover plate & installation aid
Pre-Construction Bracket (AC-CM8-PCB),
Junction Box (AC-CM-JBOX)
2 per box
Preliminary Technical Information
The information in this document reflects
preliminary data. Items including polar
plots, frequency, phase and impedance
response graphs will be added when final
data are available.

Key Features

• BroadBeamHP® waveguide technology
Tile bridge included
delivers a consistent dispersion pattern
for maximum coverage area per speaker
(up to 10 kHz, EASE™ documented).
• 66 Watt transformer and high output
(113 dB) for the sound reinforcement
and PA markets.
• One 165 mm (6.5 in) treated fiber driver and
one compression driver with a 25.4 mm
(1 in) exit mounted to a proprietary cast-
aluminum M6™ baffle and heat sink.
• 93 dB Average sensitivity offers high-
output capabilities and reduced amplifi-
cation costs.
• Separate tool-free magnetic grille &
bezel assembly for ease of install and
in-field painting.
• Iridite-plated, steel grille with protec-
tive powder-coated finish for lasting
durability.
• Rapid-installation blind mount fixed
wing mounting mechanism with con-
stant tension design affixes to ceiling
thickness tolerances ranging from 6.4
mm (0.25 in) to 42.9 mm (1.69 in).
• UL 2043 pending.
• Included accessories: Tile bridge, Euroblock
connector & paint mask/installation aid.
• Optional accessories: Pre-Construction
Bracket & Junction Box.
• High quality black or white paint finish.

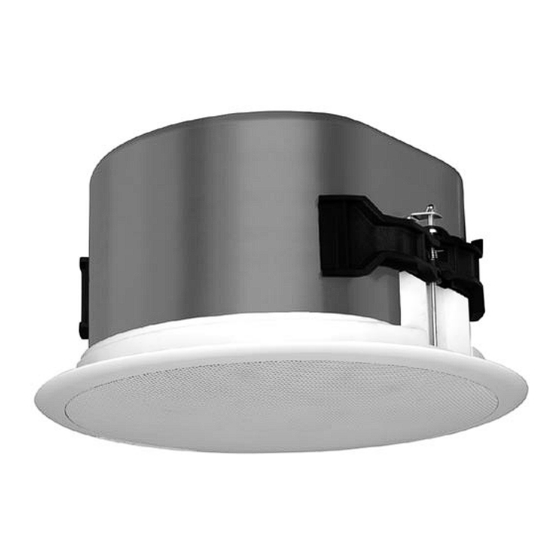

Description
The CM690i is a premium 6.5" 2-way,
in-ceiling, high-efficiency, high-SPL
loudspeaker for distributed or 8 Ohm
applications. The CM690i incorporates
a dedicated 6.5" treated fiber driver and
high-power compression transducer with
a BroadBeamHP® waveguide to deliver a
consistent dispersion pattern and superb
intelligibility for the foreground music,
sound reinforcement and PA markets. The
CM690i incorporates a 66 Watt transformer
with a 6-position tap switch and voice
coil/8 Ohm direct position. Mounting
hardware and tile-bridge are included and
feature a fast and secure constant-tension
fixed wing mounting system.
