Secure anchor point
Tile bridge
Grille and bezel
seismic restraint
Box contents
1 Speaker
1 Euroblock connector
1 Grille and bezel
1 Styrofoam installation aid/paint mask
1 Conduit cover plate
1 Tile bridge
1 Suspension cable

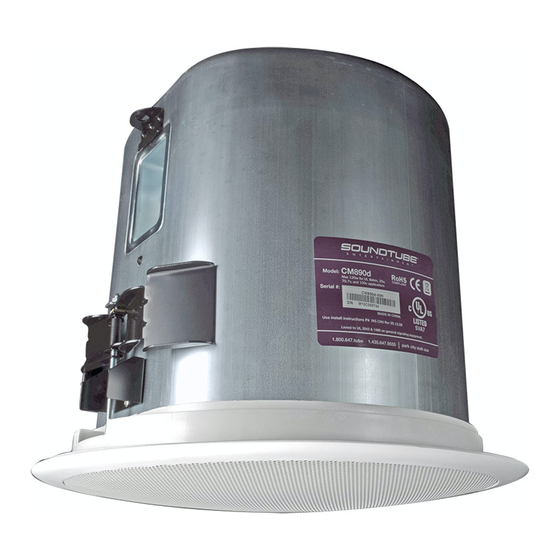

CM800d, CM890d, and CM1001d-
Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
Install Instructions For:
CM800d, CM890d and CM1001d speakers
SpeedClamp™
Euroblock connector
Cover plate clamping screw
Suspension cable
Carabiner
Euroblock jack
© 2008 SoundTube Entertainment, Inc. All rights reserved. PN INS-CMd Rev09.15.08
Ceiling thickness tolerances
Max
42.9 mm (1.69 in)
Seismic restraint anchor tab
Conduit cover plate
Signal wire
Speed Wing™ mounting arms
Baffle
Grille and bezel
Strain relief (not included)
may be used with conduit cover plate.
|
1.435.647.9555
800.647.TUBE
Warning
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Min
6.4 mm (0.25 in)
|
www.soundtube.com
Advertisement
Table of Contents
Related Manuals for SoundTube CM800d
Summary of Contents for SoundTube CM800d
- Page 1 Warning Warning SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for Do not spec or install speaker near support beam, ventilation duct or optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
- Page 2 Droptile Ceiling Install Instructions For: 1.435.647.9555 800.647.TUBE www.soundtube.com CM800d, CM801d, CM890d and CM1001d speakers 1. Unpack speaker & set Keep Styrofoam 3. Use included tile bridge 4. Use Rotozip or other tool aside grille assembly. installation aid/paint to mark cutout in tile.
- Page 3 Sheetrock Ceiling Install Instructions For: 1.435.647.9555 800.647.TUBE www.soundtube.com CM800d, CM890d and CM1001d speakers 1. Unpack speaker & set 2. Keep Styrofoam 3. Use included tile bridge 4. Use Rotozip or other tool aside grille assembly. installation aid/paint mask to mark cutout in sheetrock.
- Page 4 Pre-Construction Bracket Instructions For: i Series i Series 1.435.647.9555 800.647.TUBE www.soundtube.com CM800d, CM890d and CM1001d speakers 2. Complete Finish work. 3. Use Rotozip or other tool 1. Nail or screw bracket to 4. Thread signal wire through to cut hole.
