SoundTube CM590i Technical Information

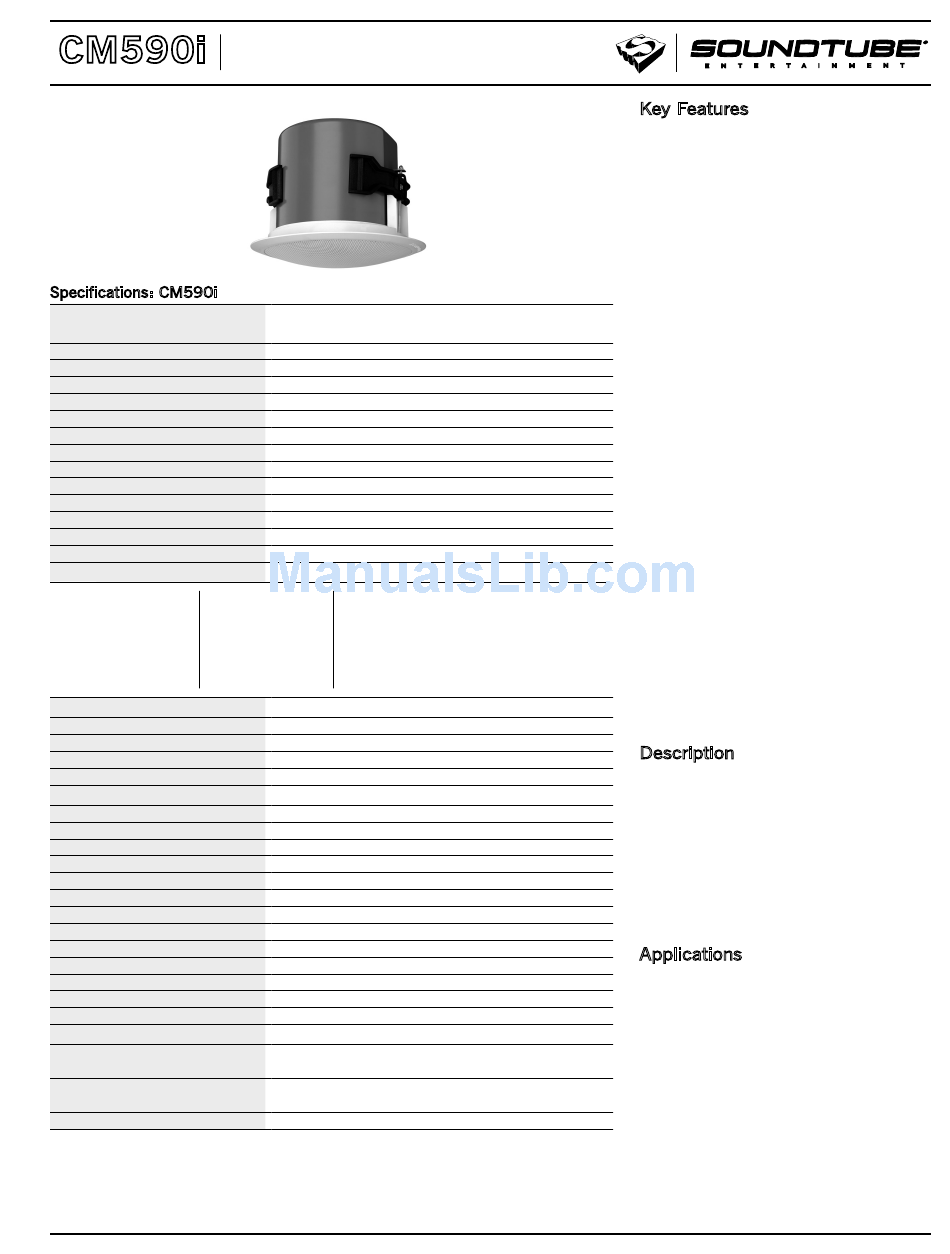

CM590i
Specifications: CM590i
System Type
1
Frequency Response (- 3 dB)
Low Frequnecy (-10 dB) 1
Max. Program Power
Max. Continuous Power RMS
Max. UL Power Rating
3
Max. SPL dB @ 1 M
4
Sensitivity dB @ 1W/1M
Impedance (nominal)
Coverage Angle (-6 dB @ 500 Hz)
Coverage Angle (-6 dB @ 4 kHz)
Directivity Factor (Q)
Directivity Index (DI)
Tap Selector
Transformer Taps
70.7 V Output 100 V
33 W 105 dB 33 W
17 W 102.5 dB 17 W
9 W 99.5 dB 9 W
6 W 98 dB 6 W
3 W 95 dB
Transducers
Low Frequency Driver
High Frequency Driver
Low Frequency Voice Coil
Crossover Frequency
Network Type
Low Pass
High Pass
Enclosure Material
Motor Board
Grille
Inputs
Colors
Backcan Diameter
Backcan Height
Visible Diameter
Visible Height
Weight
Shipping Weight
Accessories
Included
Optional
Packaging
1 Frequency response is measured in half space and includes a low-frequency peak > + 3 dB.
2
Continuous power rating, EIA-426-B test.
3 UL testing specifies band-limited pink noise over the indicated frequency spectrum.
4
2.83 Volts at a distance of 1 meter.
SoundTube continually develops new product innovations and improvements. Updates to existing
products without prior notice are an example of SoundTube's drive for constant improvement.
© 2006 SoundTube Entertainment. All rights reserved. PN TS-CM590 REV 03.03.06
In-Ceiling Speaker
Technical Information for System Engineers
5.25" Coax, in-ceiling, ported (33 Watt transformer
for 25 /70.7/100 Volt or voice coil / 8 Ohm direct)
77 Hz - 22 kHz
69 Hz - 20 kHz
160 Watts
80 Watts
55 Watts
109 dB
90 dB
8 Ohm (nominal value)
180º (average)
102º (average)
7.7 (Averaged 100 Hz - 10 kHz); 11.17 @ 2 kHz
8.04 dB (Averaged 100 Hz - 10 kHz); 10.48 dB @ 2 kHz
6-Position rotary switch with voice coil/8 Ohm direct
Output 25 V Output
105 dB 5 W 97 dB
102.5 dB 2.5 W 94 dB
99.5 dB 1.3 W 91 dB
98 dB 0.63 W 88 dB
1 x 133 mm (5.25 in) Polypropylene cone, butyl rubber surround
25 mm (1.0 in) Convex aluminum horn-loaded tweeter
25 mm (1.0 in)
3 kHz
N/A
12 dB per octave, 2nd order
Drawn aluminum backcan with ABS baffle
Cast aluminum
Iridite-plated steel with powder-coat finish
4 Pin, 5 mm Euroblock for individual or daisy chain connection
Black or white
197 mm / 7.75 in
219.2 mm / 8.63 in
271.9 mm / 10.71 in
24.5 mm / .96 in
3.4 kG / 7.5 lbs
10.7 kG / 23.5 lbs (2 per box, includes tile bridges)
Tile bridge, Euroblock connector, installation aid, paint mask
& conduit plate
Pre-Construction Bracket (AC-CM5-PCB),
Junction Box (AC-CM-JBOX)
2 Per box, can ship as single

Key Features

• High power output (109 dB) for longer
throw and higher SPL requirements.
• One 133 mm (5.25 in) polypropylene
woofer and one 25 mm (1.0 in) horn-
loaded convex aluminum dome tweeter
mounted to a proprietary cast-alumi-
num HP5
• 90 dB Average sensitivity offers high
output capabilities and reduced amplifi-
Tile bridge included
cation costs.
• Rapid installation blind-mount, fixed-
wing mechanism with constant tension
design affixing to ceiling thickness tol-
erances rangeing from 6.4 mm (0.25 in)
to 42.9 mm (1.69 in).
• Magnetic grille attachment with
safety cable.
• Easy access 6-position selectable tap
switch for 25, 70.7 & 100 Volt applica-
tions with voice coil/8 Ohm direct sim-
plifies ordering and inventory tracking.
• UL 1480 rev. 5 & 2403, CE (EMC Directive
89/366/EEC, EN55020, EN55013), Milspec
810 or IEC529 approval pending.
• Included accessories: Tile bridge, Euro-
block connector, installation aid, paint
mask and conduit plate.
• Optional accessories: Pre-Construction
Bracket and Junction Box.
• High quality black or white paint finish.
Custom paint colors optional.
Description

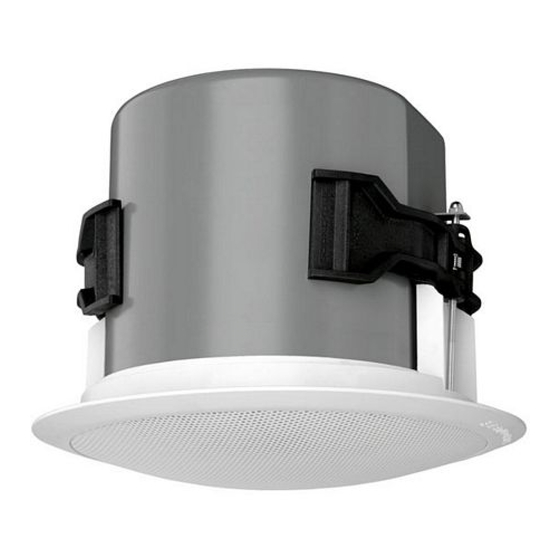

The CM590i is a high-powered 5.25"
2-way loudspeaker in a ported in-ceiling
enclosure design. The CM590i incorporates
a low-profile grille, proprietary HP5
motor-board and 6-position tap switch
with voice coil/8 Ohm direct. A tile bridge
is included and the speaker features a fast-
action SpeedWing
installation.
Applications
Engineered for high-SPL and effective
low-end response (69 Hz @ - 10 dB), the
CM590i delivers consistent high-perfor-
mance music and paging for applications
requiring longer throw or higher volume
above the existing ambient noise level. The
CM590i is ideal for in-ceiling sound rein-
forcement/PA in applications with high
ambient noise levels including casinos,
warehouses, airports, transportation & ship-
ping centers, schools, gyms, arenas and sta-
diums. For additional bass down to 43 Hz
(-10 dB) the CM801i subwoofer may be used.
baffle & heat sink.
