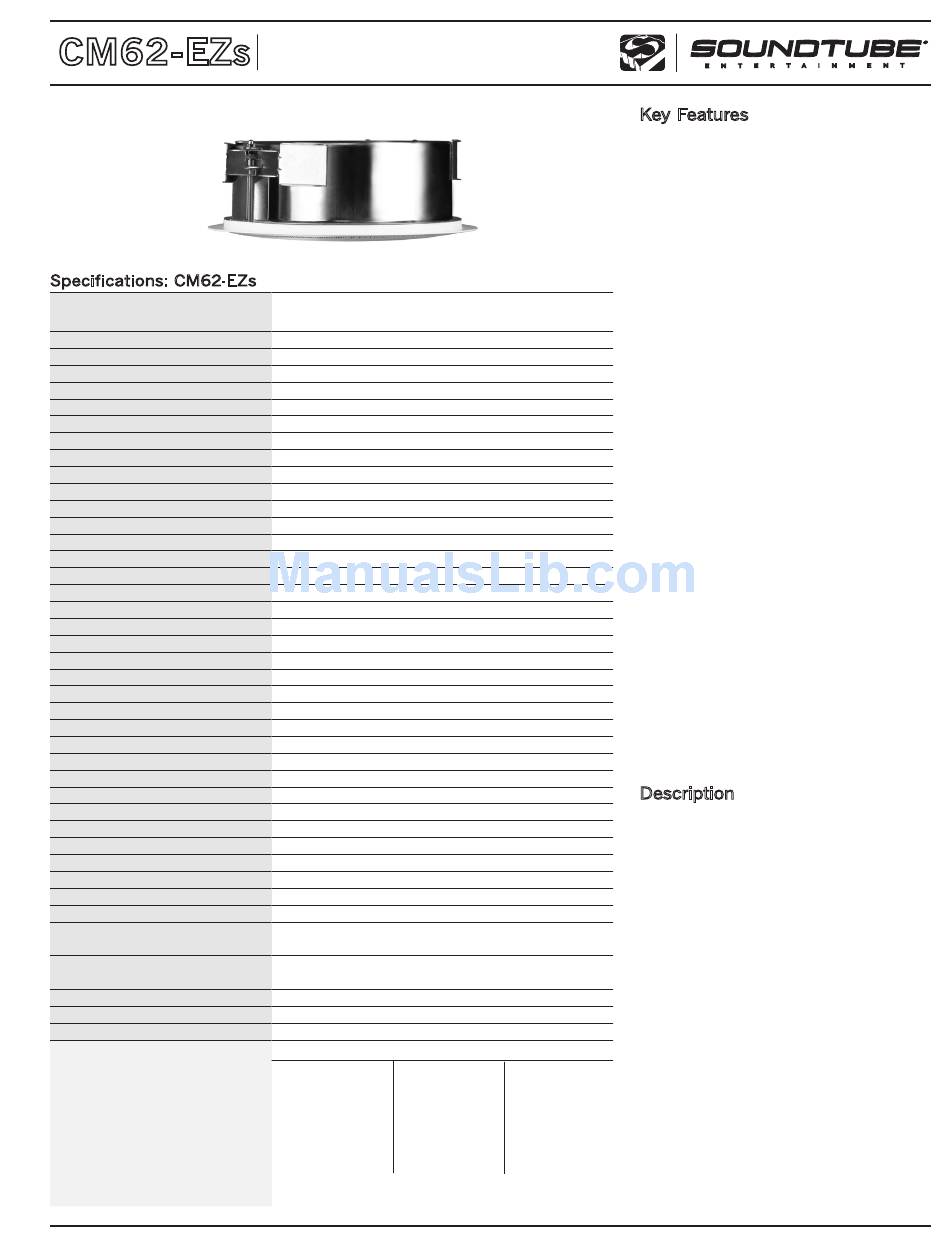

CM62-EZs

Specifications: CM62-EZs

System Type

Impedance (nominal)

Sensitivity dB @ 2.83V/1M

Sensitivity dB @ 1W/1M

Frequency Response (- 3 dB)

Frequency Response (-10 dB)

Max. Program Power

Max. Continuous Power RMS

Max. Power SPL @ 1 M

Max. SPL @ 3 dB Distortion

Coverage Angle (-6 dB @ 2 kHz)

Coverage Angle (-6 dB @ 10 kHz)

Coverage Angle

Directivity Factor (Q)

Directivity Index (DI) dB

Tap Selector

Transducer - Low Frequency Driver

Transducer - High Frequency Driver

Low Frequency Voice Coil

Crossover Frequency

Network Type: Low Pass

Network Type: High Pass

Enclosure Alignment

Enclosure Material

Grille

Inputs

Colors

Backcan Diameter

Backcan Height

Visible Diameter

Visible Height

Mounting Hole Diameter

Min / Max Ceiling Thickness

Weight

Shipping Weight

Accessories

Included

Optional

Packaging

Regulatory - UL

Regulatory - CE

1w1m sensitivity determined using nominal

impedance

Frequency response measured in half or

full space as dictated by speaker mounting

configuration

Max program power is 3 dB above max

continuous power

Continuous power rating, EIA-426-B test

Max output based on max continuous power

Max useable SPL based on testing

by NWAA Labs

In-Ceiling Speaker

Technical Information for System Engineers

6.5" Coax, in-ceiling, sealed (32 Watt transformer for

25/70.7/100 Volt or 16 ohm direct)

16 ohm

87.6 dB

90.5 dB

135 Hz - 22 kHz

75 Hz - 22 kHz

100 w

50 w

107.5 dB

50 w

140º

105º

80º (Avg. from 2 - 10 kHz)

3.7 Avg. (100 Hz - 10 kHz) ; 3.8 (2 kHz)

5.3 dB Avg. (100 Hz - 10 kHz) ; 5.8 dB (2 kHz)

5-Position rotary switch with 16 ohm direct

165 mm (6.5 in) Treated Fiber cone, cloth surround

25 mm (1in) Silk tweeter

25.4 mm / 1.00 in

4.0 kHz

12 dB per octave, 2nd order

6 dB per octave, 1st order

Sealed

Drawn steel backcan with ABS baffle

Painted Steel

18-Gauge hard wired leads

Black or white

9.67 in / 245.6 mm

3.75 in / 95.3 mm

11.75 in / 298.5 mm

0.34 in / 8.6 mm

10.50 in / 266.7 mm

0.035 in / 0.9 mm – 1.60 in / 40.6 mm

7.0lb / 3.2kg

8.0lb / 3.6kg

Tile bridge, UL listed flex conduit clamp, paint shield,

hole template, wire nuts

Pre-Construction Bracket (AC-CMEZ6/8-PCB); Junction

box (AC-CM-EZ-JBOX)

1 per box

1480 & 2043 Approved

Approved

Transformer Taps

70.7 V Output

100 V Output

32 w 105.5 dB

16 w 102.5 dB

8 w

99.5 dB

8 w

4 w

96.5 dB

Tile bridge included

25 V

Output

4 w 96.5 dB

2 w 93.5 dB

99.5 dB

1 w 90.5 dB

0.5 w 87.5 dB

Key Features

• Engineered for applications with limited

plenum space incorporating a Sound-

Tube-specific shallow backcan with an

installed depth of only 3.5 inches.

• One 165 mm (6.5 in) treated fiber woofer

with cloth surround and one 25.4 mm

(1.0 in) silk tweeter.

• Reduced amplification costs with maxi-

mum efficiency including 90.5 dB sensi-

tivity and 16 Ohm impedance.

• Superior voice intelligibility with a 10

kHz coverage angle of 80° (Indepen-

dently verified).

• Easy-access 5-position tap switch for

25/70.7/100 Volt and 16 Ohm settings

allows for easy ordering, stocking and

installation.

• Incorporates a painted steel grille for

lasting durability.

• UL 1480 & 2043, cUL, CE (EMC Direc-

tive 89/366/EEC, EN55020, EN55013)

approved.

• Adaptable to material thicknesses rang-

ing from 0.04 in (0.9 mm) to 1.60 in (40.6).

• Included accessories: Tile bridge, UL

listed 0.5" flex conduit clamp, paint

shield & 2 wire nuts.

• Optional accessories: Color-coded

(green) pre-construction bracket (AC-

CMEZ6/8-PCB) ; Junction box (AC-CM-

EZ-JBOX).

• High-quality black or white painted fin-

ish. Custom colors available.

Description

The CM62-EZs is a 6.5" coaxial 2-way

blind-mount in-ceiling speaker which

delivers true high efficiency and perfor-

mance across the operating bandwidth.

By incorporating a 6.5" treated-fiber

driver with cloth surround in a sealed

drawn steel backcan, this speaker deliv-

ers maximum frequency response (75 Hz

– 22 kHz, - 10 dB) in a compact design.

Mounting hardware is included and

features a constant-tension mounting

system with a 21 gauge "full-metal" steel

tile bridge ensuring rapid and secure

installation in any sheetrock or drop-tile

application. For easy ordering, stock-

ing and installation, this series includes

a color-coded (green) tile bridge and

optional pre-construction bracket and a

5-position tap switch for 25, 70.7 &

100 V applications with voice coil/16

Ohm bypass.

Need help?

Do you have a question about the CM62-EZ and is the answer not in the manual?

Questions and answers

Summary of Contents for SoundTube CM62-EZ

Page 1: Key Features
Transformer Taps impedance 70.7 V Output Frequency response measured in half or 32 w 105.5 dB full space as dictated by speaker mounting configuration 16 w 102.5 dB Max program power is 3 dB above max continuous power Continuous power rating, EIA-426-B test...
Page 2 CM62-EZs In-Ceiling Speaker Technical Information for System Engineers Frequency Response dBSPL Phase/Impedance Reponse Ohms Impedence Phase Beamwidth Angle -3dB -6dB -9dB Hz 500 Directivity Index (DI) Applications Developed specifically for the pag- ing and background music applica- tions where cost, quality and fit are paramount, the CM62-EZs is ideal for hotels, retail stores, restaurants, airports, churches (under eave) or boardrooms. Indeed, the entire CM-EZ series is engi- neered for installations where high-effi- ciency and rapid installation are critical attributes. For applications requiring additional bass response, SoundTube’s CM1001d subwoofer provides true low- end response down to 50 Hz.
Page 3 CM62-EZs In-Ceiling Speaker Technical Information for System Engineers Independent Data Acquisition & Verification All data for SoundTube speakers is independently collected from and veri- fied by NWAA Labs (www.nwaalabs. com) using their proprietary MACH testing system. All data is collected and analysed according to ASTM, ISO and AES standards using EASERA, TEF and MLSSA. Full balloon data including both phase and magnitude is compiled into a variety of formats including EASE 4.x, GLL and CLF. Architectural Specifications The loudspeaker shall consist of one 165 mm (6.5 in) low-frequency transducer and one 25.4 mm (1.0 in) high-frequency transducer with a fre- quency dividing network installed in a sealed enclosure. The low-frequency voice coil diameter shall be 25 mm (1 in). The low-frequency transducer shall have a treated fiber cone material with cloth surround. The high-frequency transducer shall be constructed of silk material using a balanced-dome con- figuration. Polar Plots...
Page 4: Mechanical Drawings
CM62-EZs In-Ceiling Speaker Technical Information for System Engineers Mechanical Drawings Side 95.3 mm (3.75 in) 266.7 mm (10.50 in) Included Accessories Paint Mask Optional Accesories Pre-Construction Bracket (AC-CMEZ6/8-PCB) SoundTube Entertainment manufactures a complete line of speakers for: Open-Ceiling • In-Ceiling • Surface-Mount • Outdoor • Sound-Focusing All SoundTube products are designed and engineered in the USA.
