Summary of Contents for Bartscher KV 270L

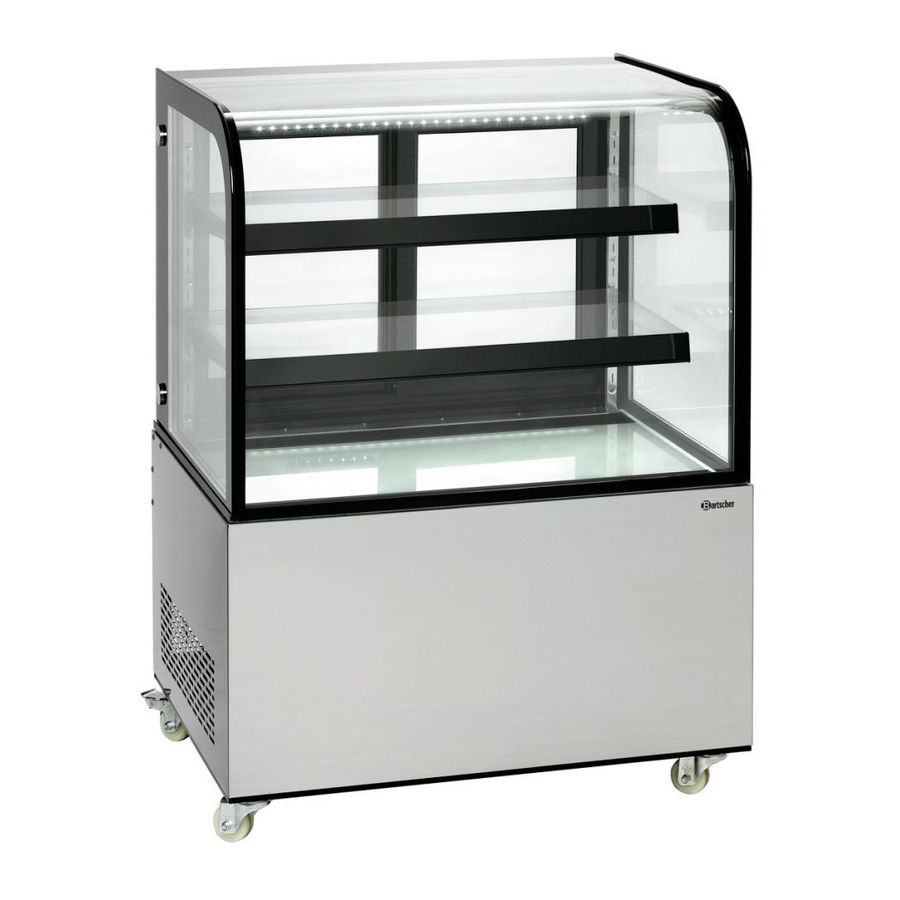

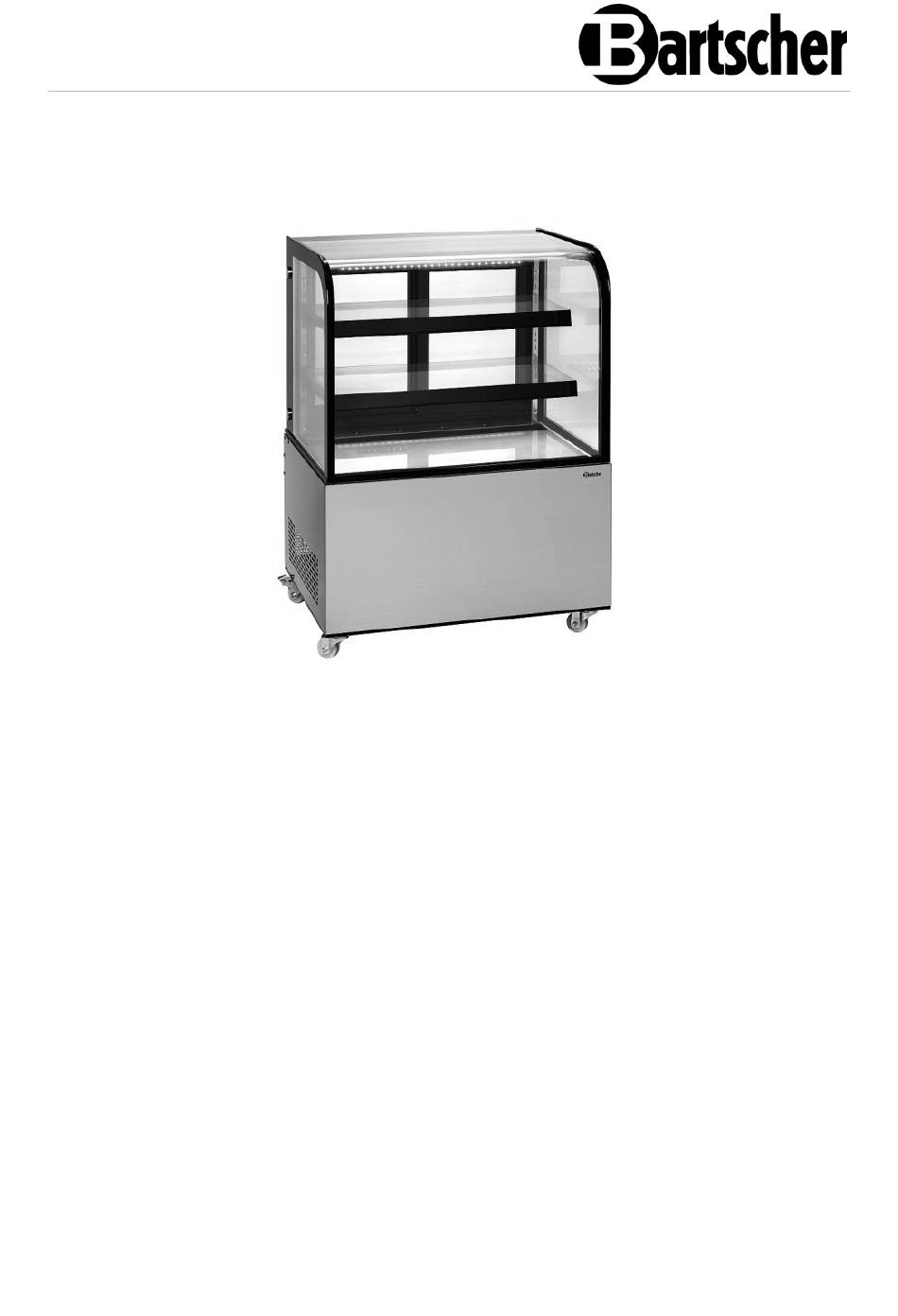

- Page 1 KV 270L 700562...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-11-09...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hi nweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling food (e.g., snacks, cakes) and beverages. The appliance is intended for operation in maximum ambient temperature of 30 °C and relative humidity of 65%. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Name: Display fridge KV 270L 700562 Art. No.: Material: stainless steel, glass, plastic Volume, in l: Temperature range, min.–max., in °C: 2 - 10 Amount of coolant, in kg: R290 / 0,140 Climate class: Energy efficiency class: C (EU Nr. - Page 12 • Internal usable height: variable More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2019/2024, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model. 10 / 22...
-
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Side (right/left) glass pane 2. Front glass pane 3. LED lighting strips (2 pcs) 4. Shelf with price strip (2 pcs) 5. Internal air outlet openings 6. Internal air inlet openings 7. -
Page 14: Functions Of The Appliance
Installation and operation Functions of the Appliance The display fridge is ideally suited a product counter area in any sales hall. The height adjustable shelves with price strips offer attractive display surface for chilled beverages, snacks and food courses. Installation and operation Installation Unpacking / Positioning •... - Page 15 Installation and operation • Do not place the appliance in direct sunlight or in the vicinity of heat sources (cooker, radiator, heating devices, etc.). Heat sources may negatively affect power consumption, and restrict functions of the appliance, too. • The el ectric soc ket s hould be easil y accessibl e s o it is pos sibl e to quic kl y disconnect the power c ord when nec ess ar y. The el ectric soc ket s hould be easil y accessibl e s o it is pos sibl e to quic kl y disconnect the power c ord when nec ess ar y.
-
Page 16: Operation
Installation and operation Operation • Przed pier wsz ym uż yciem wycz yś cić urządz eni e i wypos ażenie zgodni e z e ws kazówkami z awartymi w pu nkcie 6 „Cz yszczen ie” . M ake s ure no water enters elec tric ins tall ati on and connection box. N as tępni e dokładni e os usz yć urz ądzenie i elementy wyposaż enia. •... - Page 17 Installation and operation Digital temperature control / button functions 1. LCD cooling indicator 2. LCD defrosting indicator 3. Lighting / defrosting button 4. SET function button 5. Digital display 6. Temperature decrease button 7. Temperature increase button LCD indicators LCD cooling indicator This indicator is lit over cooling process;...
- Page 18 Installation and operation • Settings Setting the Set Value (Set Temperature Value) The optimum temperature setting is factory default and it equals the appliance operating temperature of approx. 2–10°C. The set temperature may be changed the following way: – press button shortly;...
-
Page 19: Cleaning And Maintenance
Cleaning and Maintenance Switching the LED Lighting On/Off The appliance is equipped with 2 LED lighting strips in the top section of glass panes. 1. If needed, press button shortly to switch the LED lighting on. 2. Press the button again, to switch the LED lighting off. Switching the Appliance Off 1. -
Page 20: Maintenance
Possible Malfunctions 7. Use a soft, damp cloth to clean the bottom baseplate, housing and frame of the appliance. 8. Wipe cleaned elements and surfaces with a cloth moistened in fresh water. 9. Finally, thoroughly dry all cleaned parts and surfaces with a soft cloth. 10. - Page 21 Possible Malfunctions Malfunction Possible Cause Solution Insufficient cooling Direct sunlight or heat Move the appliance away efficiency sources in immediate vicinity from heat sources Poor air circulation around Keep sufficient clearance the appliance from walls or other objects Glass pane sliding doors are Close glass pane sliding not closed properly or they doors;...
-
Page 22: Disposal
Disposal Error Messages in the Digital Display Error Description Outcomes Solution 'HH' Overheating (over 45°C) or Compressor starts to Contact the shorting of room temperature work for 45 minutes and service sensor company then switches off for 15 minutes 'LL' Temperature is too low Compressor starts to Contact the...
