Summary of Contents for Bartscher K3110-200U

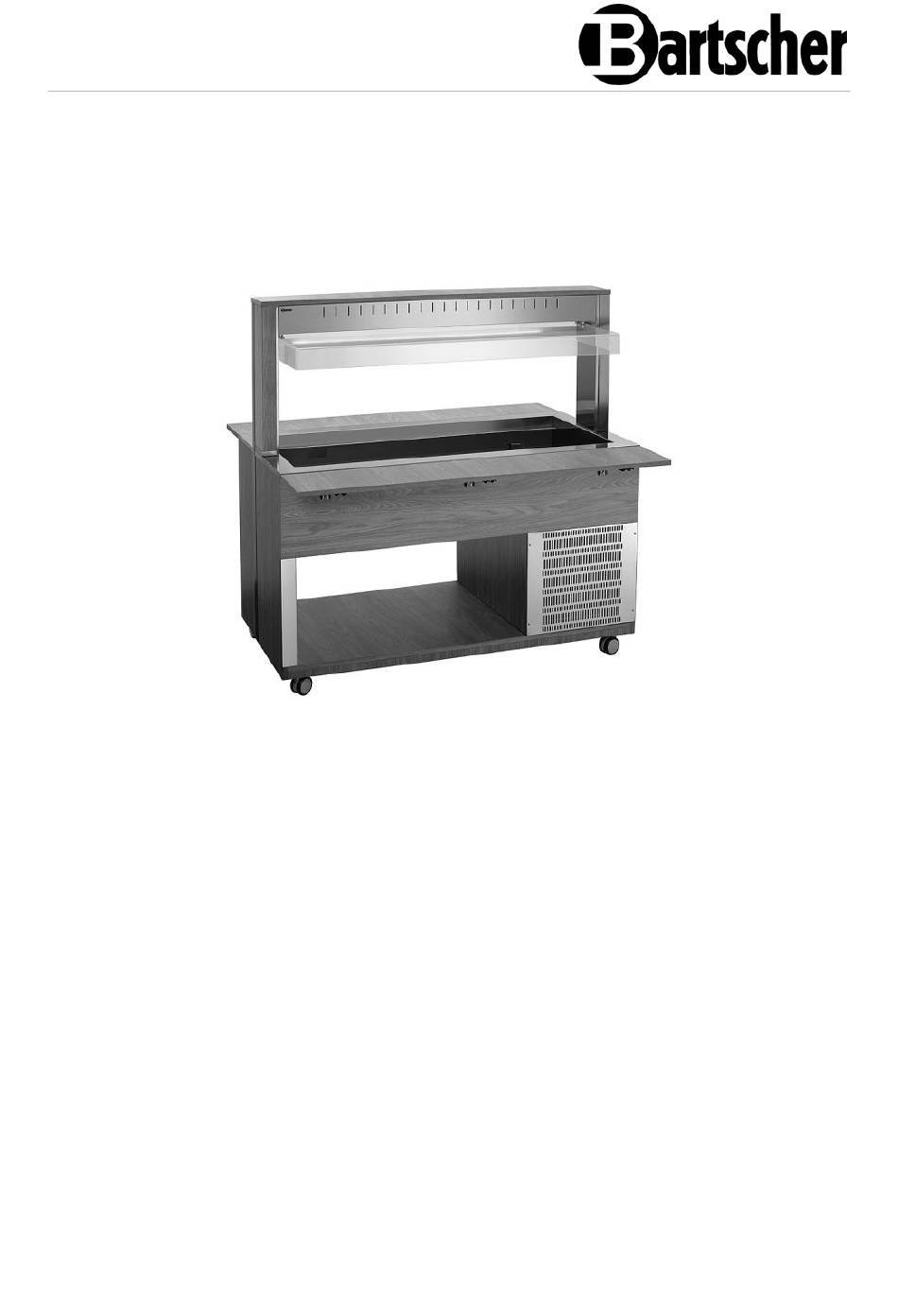

- Page 1 K3110-200U/200W/200A - K4110- 200U/200W/200A 125543-125543V1-125543V2 - 125544- 125544V1-125544V2...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-10-08...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltende n ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Improper Use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling food products in suitable GN containers. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Version / characteristics of buffet trolley for cold dishes • Cooling: static • Folding tray slide shelf • Sneeze guard • Lighting: – LED – it turns on when the mains plug is inserted •... - Page 12 Technical Data Name: Buffet trolley K3110-200U / 200W / 200A 125543-125543V1-125543V2 Art. No.: laminated wood / stainless steel / Material: plastic Colour: elm / wenge / anthracite Number of slits: Basin size, GN format 3 x 1/1 GN Max. GN container depth, in mm: Temperature range, min.–max., in °C:...
-
Page 13: Functions Of The Appliance
Technical Data Name: Buffet trolley K4110-200U / 200W / 200A 125544-125544V1-125544V2 Art. No.: laminated wood / stainless steel / Material: plastic Colour: elm / wenge / anthracite Number of slits: Basin size, GN format 4 x 1/1 GN Max. GN container depth, in mm: Temperature range, min.–max., in °C: 2 - 4 Climate class:... -
Page 14: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. ON/OFF switch with integrated 2. Digital temperature controller power indicator light (green) 3. LED lighting button 4. LED lighting 5. Hygienic cover bracket 6. Sneeze guard 7. Shelves for moving trays (2 pcs.) 8. -
Page 15: Installation And Operation
Installation and operation Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law. - Page 16 Installation and operation • Do not place the appliance in direct sunlight or in the vicinity of heat sources (cooker, radiator, heating devices, etc.). Heat sources may negatively affect power consumption, and restrict functions of the appliance, too. • The el ectric soc ket s hould be easil y accessibl e s o it is pos sibl e to quic kl y disconnect the power c ord when nec ess ar y. The el ectric soc ket s hould be easil y accessibl e s o it is pos sibl e to quic kl y disconnect the power c ord when nec ess ar y.
-
Page 17: Operation
Installation and operation Operation Indications for User • Do not place any heavy objects on the sneeze guard (for example, do not place a stack of plates). • To place the utensils, etc., use the bottom working surfaces. • Avoid large amounts of water coming into contact with the wooden parts to prevent blistering and scratching. - Page 18 Installation and operation Preparation of Appliance 1. Before use, clean the appliance observing instructions in section 6 'Cleaning'. 2. Make sure the drain tap is closed. 3. Plug the appliance into a suitable single socket. The LED lighting integrated into the hygiene cover is activated as soon as the mains plug is plugged in or is switched on via the lighting switch.
- Page 19 Installation and operation Digital Temperature Controller Fig. 2 Name Functions 1) HACCP data display 2) Pressed for 5 seconds to start or stop manual defrost (if LFc = 0) without waiting for dSd or to turn on/off the controller (if LFC = 1) Function key 3) in the programming mode: to exit the parameter menu without saving the new...
- Page 20 Installation and operation LED Indicators The LED indicators in the digital display show the status of the active function: Status of the Meaning active function the compressor is running (K1 output relay is on, illuminates Act = 0) flashes during compressor start delay the heater is working (the K1 output relay is on, illuminates Act = 1)
- Page 21 Installation and operation 1. If there is a need for the change of automatic defrosting phases, press the button and hold it for more than 5 seconds. The appliance will start defrosting immediately, and the next defrosting process will commence after 6 hours. Manual Defrosting Additionally, aside of the automatic defrosting, manual defrosting may be activated: 1.
- Page 22 Installation and operation Button lock 1. Press and hold the buttons simultaneously for 6 seconds to lock and unlock the keypad (the top point to the left of the temperature gauge is blinking). When "Pof" appears on the digital display, the keypad is locked. When “Pon” is displayed, the keypad is unlocked.
- Page 23 Installation and operation Parameter alarms Country Description Value Initial settings 0..1 Alarm type values 0: ALo, AHi are absolute temperatures; 1: ALo, AHi are the temperature values related to the SEt value. -40 °C Low temperature alarm (ex LoA). If the AtP=0, temperature drops below this value (ALo-0,4), -50..
-
Page 24: Cleaning
Cleaning Cleaning Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. Do not clean the appliance with a pressurized water jet. - Page 25 Cleaning 5. Clean the hygienic cover with a soft, damp cloth and dry it thoroughly. 6. Only clean laminated wooden surfaces with a slightly damp cloth. For stubborn stains, use a little alcohol. 7. Clean the GN container in use thoroughly with running hot water, a soft cloth and mild cleaning agent.
-
Page 26: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
