AJAX FireProtect Plus Quick Start Manual page 2

Quick Start Guide
Smoke, heat & CO detector
Model Name: Ajax FireProtect Plus
Wireless smoke and heat detector with carbon monoxide
sensor
FireProtect Plus is a wireless smoke, inflammation and
carbon monoxide detector with a buzzer. It is designed for
use indoors and can operate up to 4 years from the
bundled batteries. FireProtect Plus is connected to the
Ajax security system via the protected Jeweller protocol,
with an effective communication range of up to 1,300
meters without obstacles. It can work autonomously.
IMPORTANT: This Quick Start Guide contains general
information about the FireProtect Plus. Before using the
device, we recommend to reviewing the User Manual on the
website: ajax.systems/support/devices/fireprotectplus

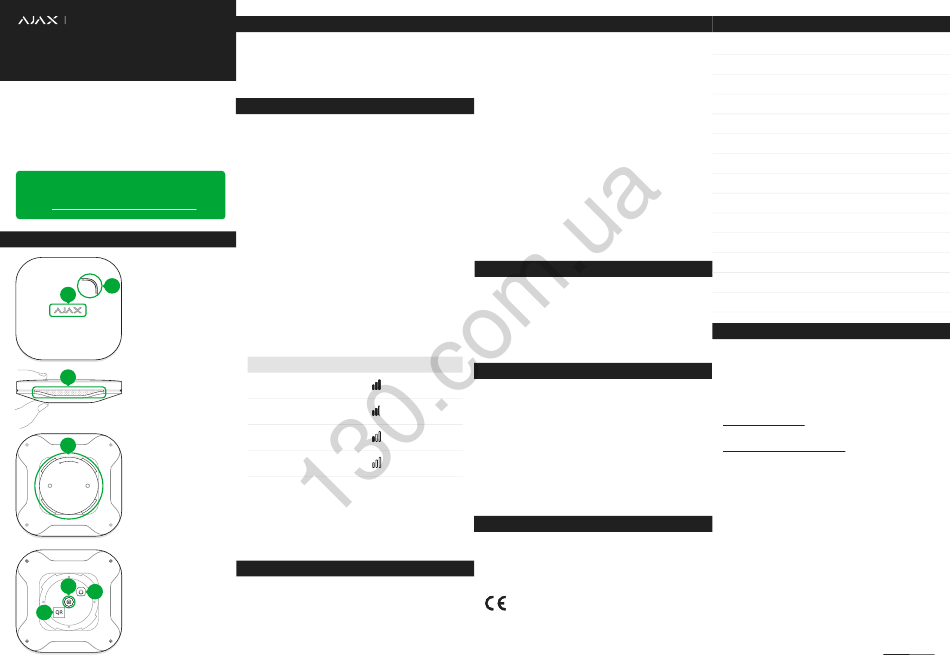

FUNCTIONAL ELEMENTS
1
"Test". "Test".
2 1 - Siren hole.
2 - Light indicator combined
with the touch button
"Test".
3
3 - Smoke chamber window.
4
4 - SmartBracket
attachment panel.
5 - On/off button.
6
5
6 - Tamper button.
7 - QR code.
7
EN
FUNCTIONAL ELEMENTS
To switch on the detector - press the On/off button for 3
seconds. The device is switched off in the same manner.
E
To switch off the siren sound, press on the logo or eliminate
the cause of the actuated alarm.
LOCATION SELECTION
When selecting a FireProtect Plus installation location, take
into account the device remoteness from the Hub and
presence of any objects hindering the radio signal
transmission.
The detector should be installed at the ceiling in the highest
point where hot air and smoke will concentrate.
Do not install the detector:
1. Outside the premises (outdoors).
2. In places with fast air circulation (near a ceiling fan, air
conditioner, air exhaust, open doors and windows).
3. Nearby any metal objects and mirrors causing radio signal
attenuation or screening it.
4. In room with the humidity exceeding the allowable value.
Prior to the attachment of the detector to a surface with
screws, please perform signal level test in the Ajax Security
System application for at least a minute. This will
demonstrate communication quality between the detector
and the hub and ensures proper installation place selection.
Status indicator
Lights with interruptions
once every 1.5 seconds
Blinks 5 times per second
Blinks 2 times per second
Lights up for a short time
once every 1.5 seconds
Prior to installing FireProtect Plus, check the smoke detector.
Switch on the device and press the touch
up to 6 seconds - the detector will test the smoke chamber
with electronic simulation of smoke presence and in case of
successful test will switch on the siren for 5 seconds. If you
didn't hear the sound - do not use the detector.
COMPLETE SET
1. FireProtect Plus.
2. Batteries CR2 (pre-installed) - 2 pcs.
3. Battery CR2032 (pre-installed) - 1 pcs.
4. Installation kit.
5. Quick Start Guide.
CONNECTING AND SETTING UP
The detector is connected to the Hub and set up via the Ajax
Security System mobile application. To establish connection
please locate the detector and the Hub within the
communication range and follow the device adding
procedure.
To connect the detector to a third party security central unit
using the Ajax uartBridge or Ajax ocBridge Plus integration
module, follow the recommendations in the user manual of
the respective device.
You can disable actuation of the alarm in the FireProtect Plus
settings in case of the exceeded temperature threshold
(above 60°С) and fast temperature increase in the room.
If several FireProtect and/or FireProtect Plus sensors are
installed on the object (with firmware versions 3.42 and
higher), you could enable interconnect in the Ajax Hub
settings. This function enables simultaneous activation the
fire detectors buzzers when a fire, smoke or dangerous CO
concentration is detected by one of them.
MOUNTING THE DEVICE
1. Fix the SmartBracket panel on the surface using the
bundled screws or other no less reliable attachment
hardware.
2. Put the detector on the panel - single blink of the indicator
will confirm that the tamper has been actuated. Turn the
detector clockwise to fix it in SmartBracket.
Signal level
AUTONOMOUS USE
Excellent
signal level
The FireProtect Plus detector can be used autonomously,
without connecting to a security system.
Good
signal level
1. Switch on the detector and test the smoke chamber.
Bad
2. Determine the optimal location.
signal level
3. Install FireProtect Plus on the surface.
No signal
In case of the autonomous use, the detector will notify of the
detected fire, smoke, carbon monoxide, as well as any events
insistent for the user with a sound signal and light of the logo.
For more information, please see the User Manual.
"Test" button (logo)
IMPORTANT INFОRMATION
This product can be used across all EU member states.
This device in compliance with the essential requirements and
other relevant provisions of Directive 2014/53/EU. All
essential radio test suites have been carried out.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY
AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS
Autogoods "130"
TECH SPECS
Photoelectric sensor,
Sensitive elements
CO sensor, thermocouple
Sound notification
85 dB at a distance of 1 m
volume
Alarm threshold
at the temperature
Anti-tamper switch
868.0-868.6 mHz
Frequency band
Up to 20 mW
Maximum RF output power
Modulation
Up to 1,300 m
Radio signal
(any obstacles absent)
2 x CR2 (main batteries),
Power supply
CR2032 (backup battery), 3 V
Battery life Up to 4 years
Operating temperature
From 0°С to +65°С
range
Operating humidity
Overall dimensions 132 х 132 x 31 mm
Weight
WARRANTY
Warranty for the Ajax Systems Inc. devices is valid for 2
years after the purchase and does not apply to the supplied
battery. If the device does not work correctly, you should first
contact the support service—in half of the cases, technical
issues can be solved remotely!
The full text of the warranty is available on the website:
ajax.systems/warranty
User Agreement:
ajax.systems/end-user-agreement
Technical support:
support@ajax.systems
Manufacturer: Research and Production Enterprise "Ajax" LLC
Address: Sklyarenko 5, Kyiv, 04073, Ukraine
By request of Ajax Systems Inc.
www.ajax.systems
60°С
Yes
FM
Up to 80%
216 g
