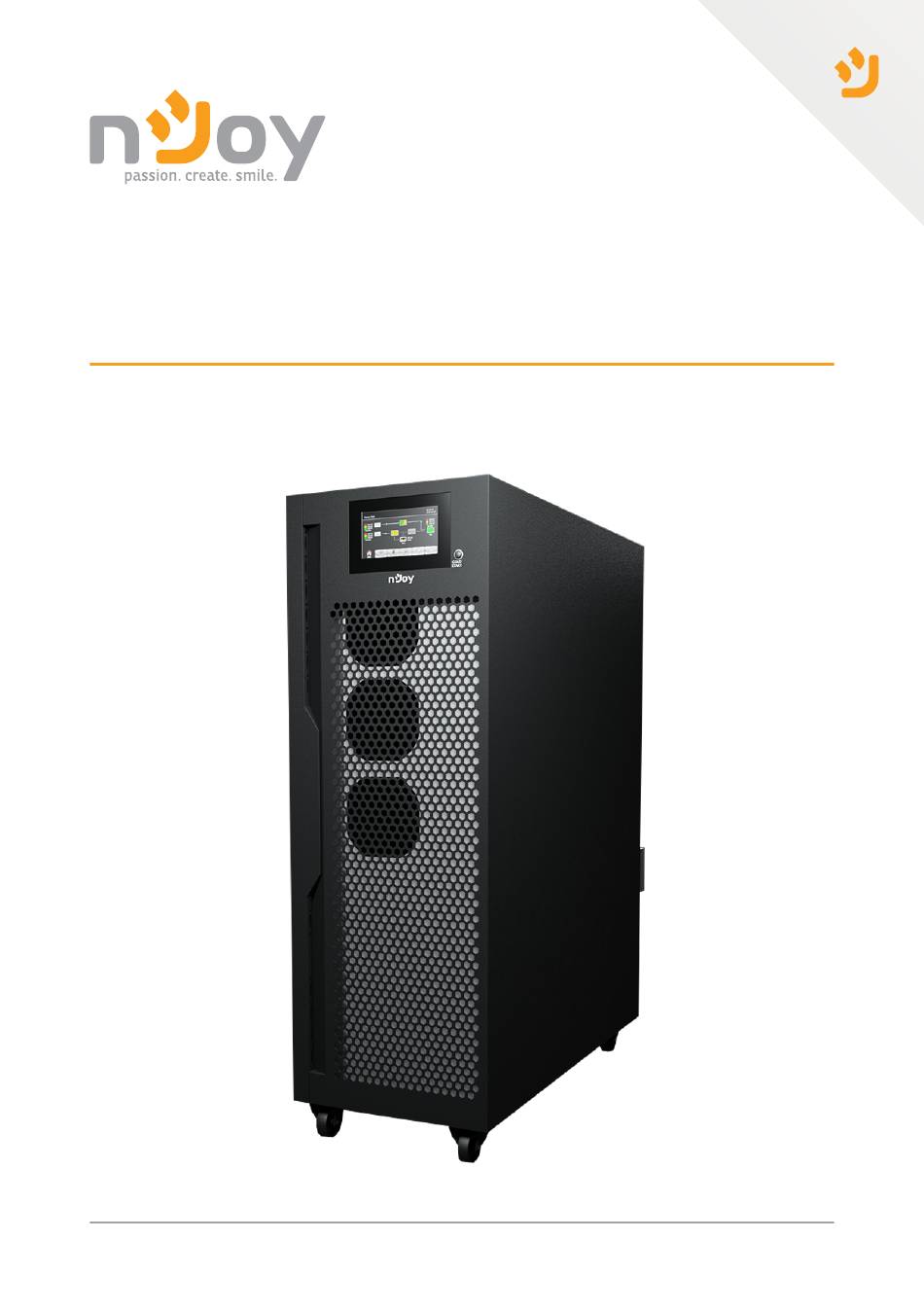

- Page 1 Ranger Series 60KT 3 Phase IN / 3 Phase OUT UPS UP33TOP160KRAAZ01B User Manual Before using this product, carefully read all product documentation and retain it for future reference. 234.35.21.0...
-
Page 2: Table Of Contents
3. Operations ......................15 3-1. Initial operation ....................... 15 3-2. Screen description ....................15 3-2.1. Main screen ....................16 This User Manual is compatible with the following Ranger Series models: 3-2.2. Control screen ....................17 3-2.3. Measure screen ..................... 20 60K VA Ranger 60KT 3-2.4. -
Page 3: Safety And Emc Instructions
WARNING Safety and EMC instructions Please comply with all warnings and operating instructions in this manual. All safety instructions in this document must be read, understood and This equipment should only be installed, serviced, and maintained by followed. qualified personnel. If you are the beneficiary of this UPS and you encounter any problem with it, please contact authorized personel who installed the 1.1. -
Page 4: Connection Warnings
1.4. Connection warnings Before working on this circuit 1. Isolate Uninterruptible Power Supply (UPS) • There is no standard backfeed protection inside of the UPS. However, 2. Then check for Hazardous Voltage between all terminals including the there are relays on the Input to cut off line voltage while the neutral is still protected earth. -
Page 5: Installation And Operation
2.2. Wiring terminal view Installation and operation RS-232 communication port USB communication port 2.1. Unpacking and inspection Emergency power off function connector (EPO connector) Unpack the package and check the package contents. The shipping package Share current port should contain: Parallel port Intelligent slot •... -
Page 6: Ups Positioning
2.3. UPS Positioning The UPS should be installed in the environment with free ventilation, less dust, optimum ambient temperature and humidity. The recommended ambient temperature is 20°C~25°C with 50% humidity. • Ambient temperature: 0°C~+40°C • Storage temperature: -15ºC ~ 60ºC •... -
Page 7: Single Ups Installation
2.4. Single UPS installation NOTE! Please install the output breaker between the output terminal and the load, Installation and wiring must be carried out in accordance with the local and the breaker should be qualified with leakage current protective function electric laws and regulations by trained professionals. -
Page 8: Ups Installation For Parallel System
2.5. UPS installation for parallel system Operations If the UPS is only available for single operation, you may skip this section to the next. 3.1. Initial operation Step 1. Install and wires the UPS according to the section 2.3 Step 1. Before operation, make sure that the two strings of batteries Step 2. - Page 9 NOTE! 3.2.2. Control screen Maintainer Menu is detailed only in ‘Addendum to User manual’. If you need Touch the icon to enter control sub-menu. assistance or have any warning or fault codes on your UPS screen, please contact the technician that installed the UPS. DO NOT attempt to modify any settings of the UPS unless you are a trained technician.
- Page 10 Battery test ON/OFF Charger It will show “Battery Test” if the UPS is not in test. Touch “Yes” to start It will show “Turn on Charger?” when charger is off. battery test. Then, it will show “Battery testing..…” during battery test period. It will show “Turn off Charger?”...
- Page 11 3.2.3. Measure screen OUTPUT W: R, S and T output power in watt. OUTPUT VA: R, S and T output power in VA. Touch the icon to enter measure page. Touch the icon OUTPUT W (%): R, S and T output power watt in percentage. browse information.
- Page 12 WARNING Language: Set the LCD language. Input Source: Select the input source. There are two options: Line (utility) DO NOT attempt to modify any settings of the UPS unless you are a and generator. Line is default setting. This setting value will show on the main trained technician.
- Page 13 Advance Advance Setting Menu page Advance Password page There are three sub-menus under “Advance ► User” setting: ELECTRONIC, It’s required to enter password (4 digits) to access to the “ADVANCE” page. BATTERY and MISCELLANEOUS. Advance - User • ELECTRONIC To access “Advance-User” settings menu page, the default password is “0000”.
- Page 14 CVCF Mode (constant voltage and constant frequency function) Bypass at UPS off: Select the bypass status when manually turning off the Enable: CVCF function is enabled. The output frequency will be fixed at UPS. This setting is only available when “Bypass forbid.” is set to “Disable”. 50Hz or 60Hz according to setting of “OP Freq.”.
- Page 15 Battery Warning Voltage: 3.2.5. Information screen HIGH: High battery warning voltage. The setting range is 14.0V ~ 15.0V. Touch the icon to enter information page. Touch the icon 14.4V is default setting. browse information. Touch the icon to return to main screen. Touch the LOW: Low battery warning voltage.
- Page 16 PAR State: The information of parallel state. • PARAMETER information PAR ID: The UPS ID number in parallel state. Customer code: Customer code for UPS DynamicPasword: if Enabled, maintainer password is dynamic • RATED information Parameter Information Page1 Line Voltage Range: The acceptable line input voltage range. Line FRE Range: The acceptable line input frequency range.
-
Page 17: Audible Alarm
Shutdown Voltage: If battery voltage is lower this point, UPS will automatically 3.4. Single UPS operation shut down. WARNING Battery Age: It shows battery age. Battery AH: It shows battery AH This UPS should be started by authorized personal only. Please contact Battery Number: It shows battery number. - Page 18 • If the UPS is overload, the buzzer will beep twice every second. 3.4.6. Test the batteries • If the UPS is overloaded, please remove some loads immediately. It is • If you need to check the battery status when the UPS is running in AC recommended to have the total loads connected to the UPS less than 80% of mode/CVCF mode, you could touch “CONTROL”...
-
Page 19: Parallel Operation
3.5. Parallel operation NOTE! Ranger series supports parallel operations up to 4 units. Parallel operation should be done only by authorized personal only. Please contact technician that installed the UPS if you need to start parallel operations. -
Page 20: Fault Code
• Turn on the parallel system in Battery mode: d) Turn on the input breaker of the remaining UPS and the system will a) Turn on the battery breaker and output breaker of each UPS. transfer to Bypass mode. Set the maintenance switches from “BPS” b) Turn on any UPS. -
Page 21: Warning Code
3.7. Warning Code Inverter C-A output (line Bypass O/P short to line) short circuited circuited Warning Warning Bypass O/P line to line Warning event Warning event Inverter A negative code code short power fault circuited Line situations are different in Battery unconnected parallel system Inverter B negative... -
Page 22: Troubleshooting
Problem Possible cause Solutions Troubleshooting The UPS shut Fault code is down automatically Check output wiring and if If the UPS system does not operate correctly, please solve the problem by shown as 14, because short circuit connected devices are in short using the table below. -
Page 23: Storage And Maintenance
• Batteries may cause electric shock and have a high short-circuit current. Storage and maintenance Please remove all wristwatches, rings and other metal personal objects before maintenance or repair, and only use tools with insulated grips and 5.1. Storage handles for maintaining or repairing. Before storing, charge the UPS at least 7 hours. - Page 24 DAI-TECH SRL 28 Popa Șapcă 300057, Timișoara Romania declare that the products UPS Ranger Series: UP33TOP160KRAAZ01B Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate are in conformity with collection systems)
- Page 25 Memo...
