- Page 1 OPERATING MANUAL BMR-25P VERSION 1.0...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ............................3 2. Machine Description ..........................3 3. Safety ..............................4 Safety Precautions ..........................4 Safety Regulations ..........................4 Safety Instructions ..........................5 Engine Safety ............................6 4. Initial Operation............................. 7 Checkpoints of Machine Safety: ......................7 5. -
Page 3: Introduction

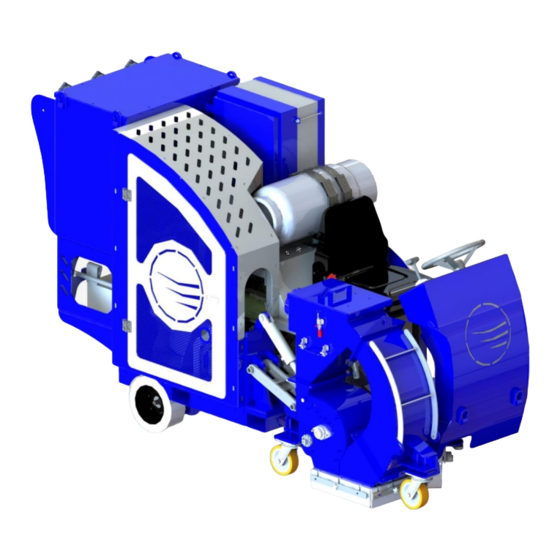

Only authorized and trained personnel may operate this machine. 2. Machine Description The Blastrac BMR-25P ride-on shot blaster is ideally suited for medium and large sized applications with the added benefit of being propane operated for increased versatility. It is very maneuverable with zero turn radius, non- mark tires and complete hydraulic control. -
Page 4: Safety
3. Safety It is important that all persons who are working with or maintaining this machine must read the manual carefully and understand it fully. Always keep this manual with the machine, so it can be referenced to at any time. Safety Precautions Make sure that persons who are not operating the machine are not in the surrounding area of the ▪... -
Page 5: Safety Instructions
Turn key to OFF when machine is parked. ▪ Park the machine always on a flat horizontal and levelled surface. The weight of the BMR-25P is 3205lbs (1451kg). Only use an appropriately sized lift to move/hoist the ▪ BMR-25P. The forklift pockets are shown below (1). -
Page 6: Engine Safety
Do not run the machine in unsafe environments. ▪ Only operate this machine when sitting in the operator seat. ▪ DO NOT OPERATE THIS MACHINE WHEN STANDING IN FRONT OF IT! Engine Safety DANGER: Engine exhaust gases contain poisonous carbon monoxide. Carbon monoxide is odorless and colorless and can cause injury or death if inhaled. -
Page 7: Initial Operation
4. Initial Operation Before using the machine, it is essential to inspect the machine every day. It is not permitted to use the machine if it does not pass all of the checkpoints below. Checkpoints of Machine Safety: Shifter should be in the neutral position. ▪... -
Page 8: Operation
5. Operation During the operation of the BMR-25P, the following additional safety instructions must be followed closely. Turning on the Machine: Sit in the driver’s seat. The operator must sit in the seat or the machine will not drive due to safety seat ▪... -
Page 9: Driving The Machine
Driving the Machine The drive wheels are controlled by the shifter (1). Pushing the shifter (1) forward makes the machine go forward and pulling it back makes the machine go in reverse. The driving speed depends on the position of the shifter. The steering wheel (2) controls the front wheel, controlling the direction the machine goes. -
Page 10: Controlling The Blasthead
Controlling the Blasthead • Pressing the free flow button (button will illuminate) (1) will lower the Blasthead down to the ground. There is a 5 second delay for the blast head to lower. • To raise the Blasthead make sure the “Blasthead Free Flow” button is not illuminated, then press and hold the “blasthead up”... -
Page 11: Order Of Operation
Order of Operation Start up • Start the BMR-25P • Run the machine up to 3600-3700 RPM • Press the free flow button and wait for the head to lower (approximately 5 seconds) • Once all casters on the blasthead are on the ground, press the clutch on button. -
Page 12: Maintenance
Store the cleaned and dry machine in a dry and humid free room. Protect the components from moisture, heat, dust and shocks. All repair work must to be done by qualified Blastrac personnel, this is to guarantee a safe and reliable machine. Any guarantee on the machine is void when: Non original Blastrac parts have been used ▪... -
Page 13: Hydraulic System Instruction
To check the oil level there is an indicator (1) installed on the side of the tank. The indicator can be seen from the driver side of the BMR-25P under the seat behind the side panel. The level shouldn’t be lower than half the range of the indicator. -
Page 14: Blasthead
7. Blasthead Blasthead Removal 1. Disconnect shot valve actuator wiring. 2. Remove blasthead belt guard. 3. Remove blasthead belt. 4. Remove the hydraulic cylinder pin. 5. Remove head pivot pin. 6. Roll the head away from the machine. Use CAUTION when removing the head. -
Page 15: Technical Data
8. Technical Data BMR-25P Working Width 10” (25 cm) Motor Power 25 HP Drive System/ Speed Hydraulic - up to 320 ft/min (98 meter/min) Machine Type Ride-on Application Asphalt / Concrete / Steel Length 112” (284 cm) Width 42” (107 cm) Height 64”... -
Page 16: Contact
9. Contact Blastrac NA 13201 North Santa Fe Avenue Oklahoma City, OK 73114 Tel: 800-256-3440 Fax: 405-478-8608 www.blastrac.com...
