IV. Protection function
3.1 Frost Protection Function:
In cooling, dehumidifying or economic power saving mode, if the temperature of the exhaust pipe is
too low, the machine will automatically enter protection status; if the temperature of the exhaust
pipe rises to a certain temperature, it can automatically revert to normal operation.
3.2 Overflow Protection Function:
When water in the water pan exceeds the warning level, the machine will automatically sound an
alarm, and the "FULL" indicator light will flash. At this point, you need to move the drainage pipe
connecting the machine or the water outlet to sewer or other drainage area to empty the water
(details see Drainage Instructions at the end of this chapter). After the water is emptied, the
machine will automatically return to the original state.
3.3 Automatic Defrosting (cooling models have this function): The machine has
automatic defrosting function.Defrosting can be achieved through four - way valve reversing.
3.4 Protection Function of the Compressor
To increase the service life of the compressor, it has a 3-minute delay booting protection function
after the compressor is turned off.
V.Installation and adjustment
1.Installation ：
Warning: before using the mobile air conditioning, keep it upright for at least two hours.
The air conditioning can be easily moved in the room. In the moving process, ensure that the air
conditioning is in the upright position and the air conditioning should be placed on a flat surface.
Do not install and use the air conditioning in the bathroom or other humid environments.
1.1 Install the heat pipe assembly
1 ）take out the outer connector assembly and the exhaust pipe assembly, and remove the
plastic bags;

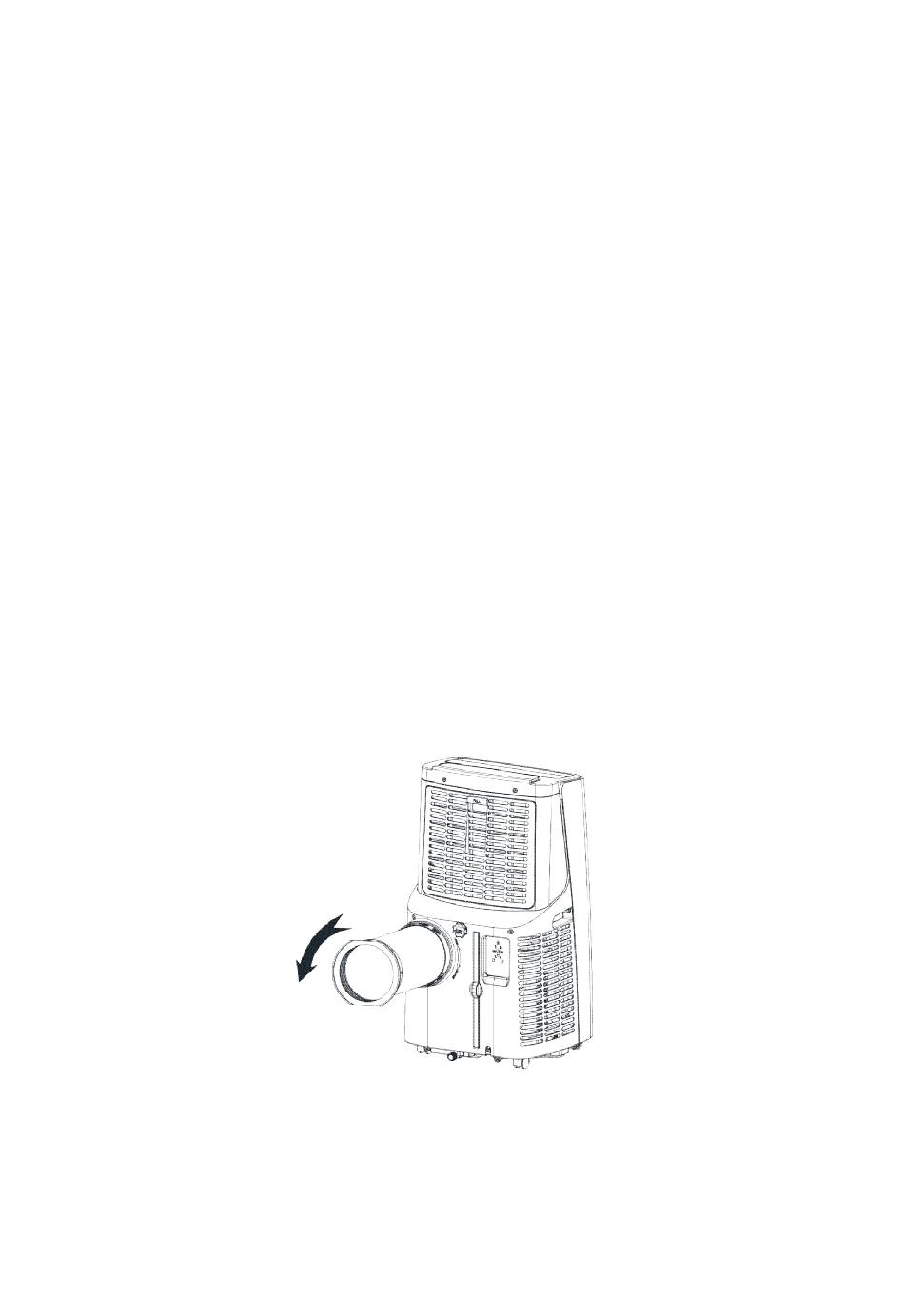

2） insert the heat pipe assembly (the end of the exhaust joint) into the back panel vent slot
(push to theleft) and complete the assembly (as shown in figure 1).
1.2 Installation of window sealing plate components
（as shown in Fig.1）
1
Figure
