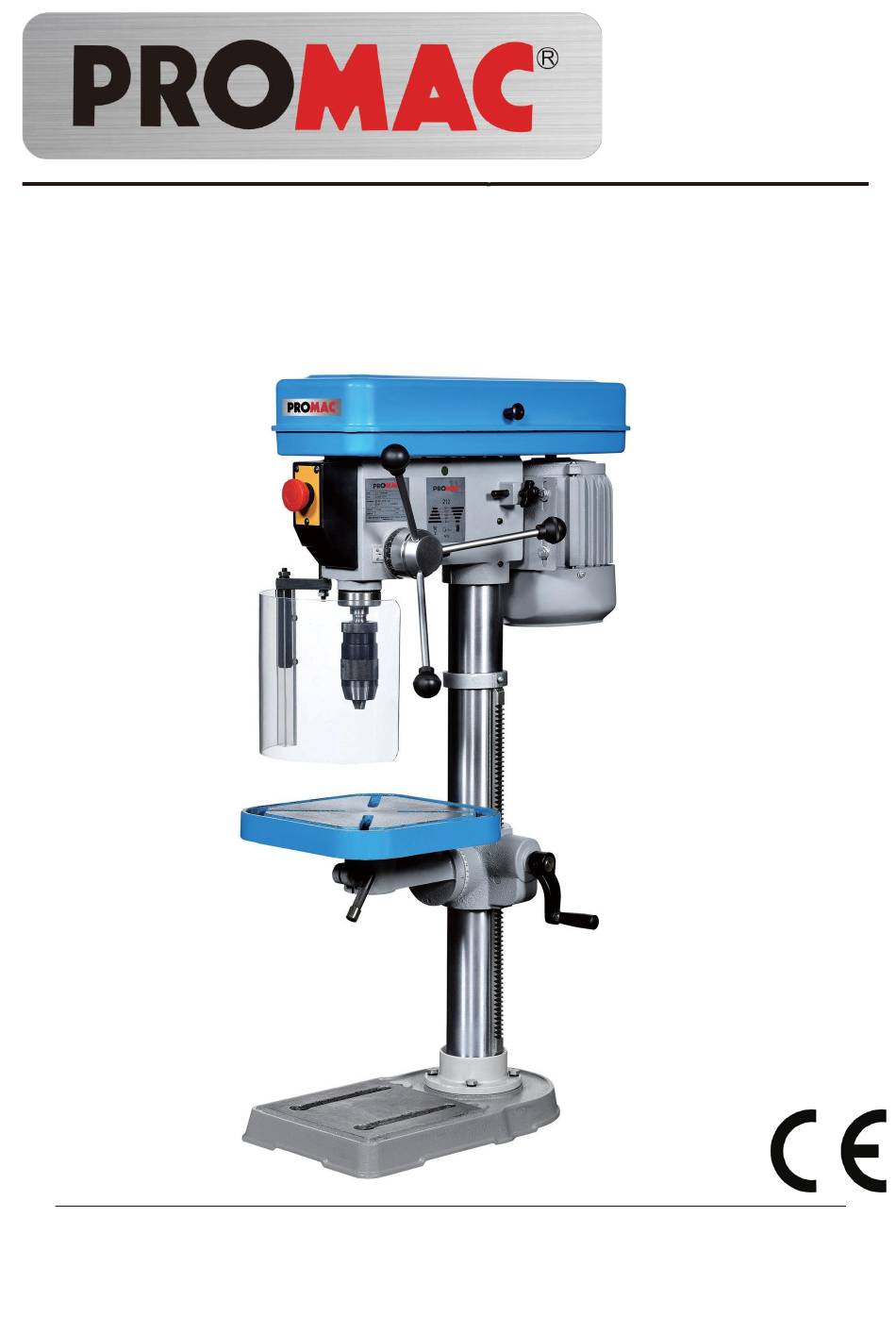

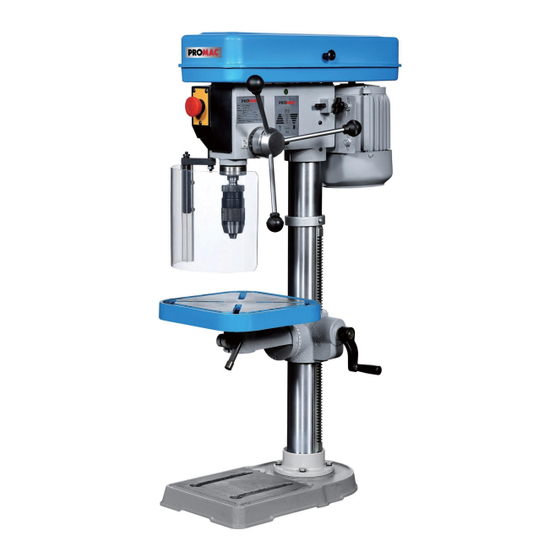

- Page 1 07-2016 Drill Press Säulenbohrmaschinen 212Z Perceuses à colonne TOOL FRANCE SARL 9 Rue des Pyrénées, 91090 LISSES, France www.promac.fr...
- Page 2 CE-Konformitätserklärung Déclaration de Conformité CE Product / Produkt / Produit: Drill Press / Säulenbohrmaschine / Perceuse à Colonne 212 / 212Z Brand / Marke / Marque: PROMAC Manufacturer / Hersteller / Fabricant: TOOL FRANCE SARL, 9 Rue des Pyrénées, 91090 LISSES, France We hereby declare that this product complies with the regulations Wir erklären hiermit, dass dieses Produkt der folgenden Richtlinie entspricht...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS 212 / 212Z Warning: Failure to follow this warning can result in death or serious injury to yourself or to third persons As with all machines, there are typical dangers associated with the operation and handling of this machine. -
Page 4: General Safety Rules
Electrical mains connection The machines model 212 and 212Z are supplied with a mains cable with plug, 230V, 50Hz. Connections as well as changes of the mains connection must be carried out by a qualified technician, in accordance with standard EN60204-1, Point 5.3. -
Page 5: Electrical System
Electrical system 212 / 212Z ELECTRICAL SYSTEM The wiring diagram, 230Volt, which can also be found in the motor cover, contains all necessary information for the correct connection of your machine to the mains. If the mains connection (plug) has to be changed, this task must be carried out by a qualified technician. -
Page 6: Technical Data
TECHNICAL DATA 212 / 212Z 212 / 212Z Drilling capacity 16mm Attachment MT 2 Throat depth 168mm Spindle stroke 80mm Speeds & speed range 5 speeds, 490-2510 min- Distance spindle nose-table 445mm Distance spindle nose-base 640mm Spindle diameter 40mm Column diameter... - Page 7 ASSEMBLY 212 / 212Z Unpacking the machine Unpack the machine with all its parts, and check the parts according to the list below. 13mm Drill chuck with key Clamping lever Adapter MT2/B18 Turning handle Handle with rod (3) Screw with spring lock washer (3)
-
Page 8: Main Controls
Main controls 212 / 212Z 1. “Start” switch 7. Crank of the table 2. Emergency stop switch 8. Drill chuck 3. “Stop” switch 9. Chip guard 4. V-belt tension lever 10. Clamping lever 5. Depth stop 11. Swivel table 6. Spindle feed handle... -
Page 9: Installation Of The Machine
Before final connection to the mains, check that the motor rotates clockwise. The Model 212 must be mounted on a stable workbench or on a pedestal base. It is essential that the workbench used for the installation is free of distortion. It should also be rigid enough to prevent any oscillation or vibration during operation. - Page 10 For safe working, the workpiece must always be firmly clamped on the cross table using a suitable clamping tool. The T-slots in the worktable have a dimension of 12 mm. A large selection of suitable clamping tools can be found in the PROMAC metalworking machines catalogue.
-
Page 11: Speed Setting
SPEED SETTING 212 / 212Z By shifting the V-belt, the desired speed can be set according to the table below. 1. Switch off the machine and disconnect it from the mains. 2. Open the V-belt cover. 3. Loosen the set screw. -
Page 12: Maintenance
MAINTENANCE 212 / 212Z Below are the main maintenance operations, which can be divided into daily, weekly, monthly and half-yearly operations. Failure to carry out the scheduled operations will result in premature wear and reduced machine performance. Daily maintenance - General cleaning of the machine from chips. - Page 13 EXPLODED VIEW - 212 36 37 69-2 69-1 69-4 69-3 69-5 20 19 97-1 99-1...
-
Page 14: Exploded View
EXPLODED VIEW - 212Z 44 43 Z46-1 45 Z46-2 Z53-1 67 66 69-1 69-4 69-5 69-2 2 2 6 5 69-3 97-1 99-1... -
Page 15: Spare Parts List
SPARE PARTS LIST 212 / 212Z Base V-belt guard PM-212001G PM-212052 PM-212002G Flange Microswitch 212Z PM-212003 Washer Z52 PM-212052Z Screw PM-212004 Screw PM-212053 Switch 55A PM-210034B PM-212005 Column 56A PM-210036 Screw PM-212006 Rack PM-212057 7-9 PM-212007 Crank (complete) PM-212058 Spindle pulley... - Page 16 SPARE PARTS LIST 212 / 212Z Washer 97-1 PM-212097A 99-1 PM-212097B Screw PM-212099 Guard 100 PM-2110021 Cover 101 PM-210092B Screw 102 PM-211059B Plate 103 PM-210092B Screw 104 PM-210091B Emergency Stop 105 PM-210084B Fastener 106 PM-210085B Screw 107 PM-210086B Nut 108 PM-210087B Cable grommet...
-
Page 17: Warranty / Garantie
Les CG peuvent être envoyées sur demande par poste ou par e-mail. TOOL FRANCE SARL se réserve le droit d'effectuer des changements sur le produit et les accessoires à tout moment. TOOL France SARL 9 Rue des Pyrénées 91090 LISSES France www.promac.fr...
