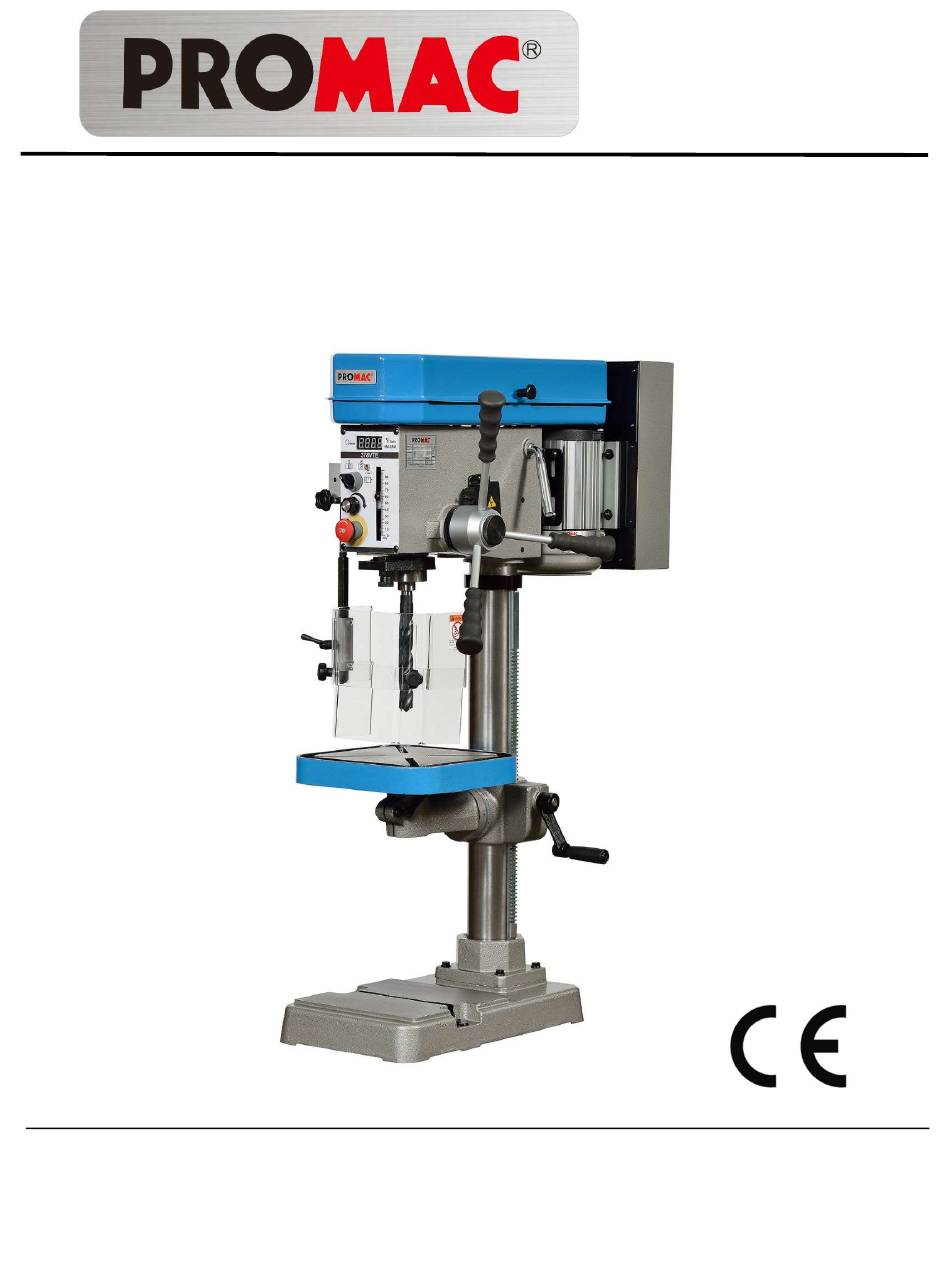

- Page 1 11-2018 Drill Press 378VTE France Schweiz / Suisse TOOL FRANCE SARL JPW (TOOL) AG Tämperlistrasse 5 9 Rue des Pyrénées, 91090 LISSES, France CH-8117 Fällanden Switzerland www.promac.fr www.promac.ch...
- Page 2 CE-Konformitätserklärung Déclaration de Conformité CE Product / Produkt / Produit: Drill Press Säulenbohrmaschinen Perceuses à colonne 378VTE Brand / Marke / Marque: PROMAC Manufacturer / Hersteller / Fabricant: TOOL FRANCE SARL 9 Rue des Pyrénées, 91090 LISSES, France We hereby declare that this product complies with the regulations Wir erklären hiermit, dass dieses Produkt der folgenden Richtlinie entspricht...
-
Page 3: Table Of Contents
12. Trouble – Shooting .................... 16 13. Maintenance ...................... 17 14. Feed Shaft Spring Tension ................18 15. Specification ....................... 19 16. Control circuit diagram and component part list..........20 378VTE Exploded View................... 21 378VTE Part List ...................... 22 Warranty / Garantie ....................25... -
Page 4: Unpacking
1. Unpacking Before unpacking, make sure the carton configuration not damaged, broken or parts extruded, if any above defect case is found, contact your retailer to change a new one as soon as possible. Unpacking procedure: 1-1. Carefully open the carton. (Pull it from the bottom to the top) 1-2. -
Page 5: Setting The Machine Instruction
The outlined procedures of setting the machine MODEL AREA SETTED SCREW 378VTE X=770×580 3-2. The dimension of setting hole and Working Clearances. Consider existing and anticipated needs, size of material to be processed through each machine, and space for auxiliary stands, work tables or other machinery when establishing a location for your machine. -
Page 6: Major Parts
4. Major Parts A= Pulley Cover J= Base B= Motor Handle K= Locks table rotation C= Switch cover L= Table D=Tapping Sensor M= Chuck Guard E= Feed Handle N= Spindle F= Table Lock O= Control panel G=Table Handle P= ON/OFF Switch H= Displays current table-tilt angle Q= Belt Tension Lock I= Floor Mounting Points... -
Page 7: Items Needed For Set Up
5. Items Needed for Set Up 5-1.The downfeed handles must be installed to operate the drill press. To install the downfeed handles: Thread the handles into the spindle hub, as shown in Figure 02, and tighten. Spindle Hub Figure 02 Wrench Locked to the reference line Downfeed handles... -
Page 8: To Assemble The Drill Chuck And Mount It To The Spindle
6. To assemble the drill chuck and mount it to the spindle 6-1. Use mineral spirits to thoroughly clean the drill chuck, arbor, and spindle sockets and dry all surfaces before assembly. Follow all safety warnings on the container of the mineral spirits. Failure to clean the mating surfaces may cause the tapered fit to loosen during operation, resulting in separation and an unsafe condition. -
Page 9: Safety Instruction
7. Safety Instruction Please read the safety instruction and operation instruction carefully. Please do wear a safety glass to avoid any material from coming into the eyes whilst operation. Please do wear ear mufflers or earplugs to avoid any noise from hurting the listening whilst operation. - Page 10 7-1. Make sure the power voltage is for the machine. Before connecting the plug to socket, it is necessary to check the power spec. to avoid any damage occurring. 7-2. If the machine is not used for a long time, the plug should be disconnected.
- Page 11 E- When change or remove the drilling bit or tooling. 7-27. Working temp.5 --- 40℃, Humidity 40--- 50, Elevation 0 ---1000 M Storage temp -25--- 55℃ 7-28. Operate location diagram for reference. Diagram 1 Diagram 2 MODEL Ultimate loading 378VTE 30 kg...
-
Page 12: Control Panel Instruction
8. Control panel instruction A. min-1 or /min (R.P.M.) Indicator B. Drill / Tap Switch C. Speed Control Switch D. Emergency Stop Button E. Feed Depth Indicator F. Fault Light G. Start Button H. Power Light I. Stop Button J. LED Work Lamp Switch (Option) 1. -
Page 13: Operation Illustration And Procedure
9. Operation illustration and procedure 9-1. There are four T grooves in the worktable. It is used to fix the work piece. 9-2.There is a T grooves in the base, too. It is convenient for fixing the longer, heavier and larger working piece. -
Page 14: Figure
9-5. Adjustment of feeding limit To prevent unwanted penetration to work piece, the feeding limit shall be set by adjusting the appropriate position of feeding depth fixing button as long as the distance between the end of tool and top surface if work piece is measured. -
Page 15: Operation Tips And Sound Pressure
10. Operation tips and sound pressure Speed Selection Opening the pulley cover is for Hi-Lo speed change only. The spindle speed is adjusted by speed control switch ”C”. Recommended Material Drill Cast Iron Steel Iron Aluminum Alloy Copper 4780 2390 1275 635 3980 1910 7960 3980 4460 2230 ... - Page 16 378VTE 1. Loosen knob B on both sides of headstock. 2. Push handle A forward as arrow sign to get belt tension. 3. Lock knob B firmly to fix belt tension. When speed change is required. Loosen lead bolt (parts no. 22-S2) on both side of headstock. Pull belt handle (parts no.
-
Page 17: Withdraw Drill Bit
11. Withdraw drill bit Both Slots Aligned 1. Bracket bar. 4. Completely insert bracket bar and ready for operating. 2. Setting hole for bracket bar 4-1. Rotate the spindle until the inner drift-key slot is aligned with the outer slot, as shown in (Figure 4-1). You will see through the spindle when the slot is properly aligned. -
Page 18: Trouble - Shooting
12. Trouble – Shooting Warning: Switch off power and remove plug from power source outlet before trouble shooting. SYMPTOM DISPOSITION 1. Push emergency button 2. Turn off the power 3. Use hand to turn the spindle shaft countermarch. Drill insert in working piece and Let the tool withdraw from the working piece. -
Page 19: Maintenance
13. Maintenance Warning: Switch off power and remove plug from power source outlet before maintenance. ISO 68 LUBRICANT NLGI #2 grease 1 Month 1 Month 1 week Everyday... -
Page 20: Feed Shaft Spring Tension
14. Feed Shaft Spring Tension The feed shaft return spring is adjusted at the factory; however, during the life of the drill press you may want to adjust the feed shaft return spring so the feed shaft return pressure suits your operating needs. To adjust the feed shaft spring tension: 1. -
Page 21: Specification
15. Specification Model 378VTE Item 20mm Drilling capacity Tapping capacity M3~M10 Spindle taper M.T.#2 Spindle travel 90mm Spindle speed 50Hz 150 – 1250 / 350-2500min (rpm) Number of speeds Variable Speeds Motor 0.75 kW 230V 3ph Net weight (kgs) 103Kg... -
Page 22: Control Circuit Diagram And Component Part List
AC 400V / 0.75kW 1 Braking Resistor QSOJ013 200W150Ω 200W250Ω Speed Adjusting Knob RV24YN DC 10V 104-B Motor Main Spindle 378VTE 0.75kW/AC 0.75kW/AC 230V/3Ph 400V/3Ph Motor Cooling Fan 125AP22 AC 240V / 1PH AC 24V / 1PH Micor Switch Chuck Guard... -
Page 23: 378Vte Exploded View
378VTE Exploded View 378VTE... -
Page 24: 378Vte Part List
378VTE Part List Index Part Description Size Qty. 1 ......PM-378001 ......Base ............... T470×280-3/8×T12 .......... 1 2-S1 .......PM-378004 ......Hex Bolt ............3/8×1-1/2" ............4 2-S2 .......PM-374202 ......Spring Washer ..........S 3/8 ..............4 2Z ......PM-378003 ......Column Set ........... Ø80×805mm ............. 1 5Z ......PM-379005A ...... - Page 25 Index Part Description Size Qty. 78BZ .....PM-379078D ......Rpm Display Unit Set ........RPM108-230V ..........1 78C ......PM-378B78C ......Speed Sensor ..........ES-18045E13P2.5B ........1 78E ......PM-379078E ......Transformer ..........................1 78F ......PM-379078F ......Terminal Blocks ..........TBH-10 9P ............1 78-S1 ....TS-2172012 ......
- Page 26 114-S1 ....PM-834114S1 ......Screw ............. 5/32×1" ............... 2 115 ......PM-833115 ......Micro Switch Cover ........................1 115-S1 ....PM-834115S1 ......Screw ............. 3/16×3/8" ............2 803 ......PM-379803 ......Switch Cover ..........378VTE .............. 1 803-S1 ....TS-2172021 ......Mach Screw Flat HD ........3/16×3/8" ............4 Environmental protection Protect the environment.
-
Page 27: Warranty / Garantie
Les CG peuvent être envoyées sur demande par poste ou par e-mail . TOOL FRANCE SARL se réserve le droit d'effectuer des changements sur le produit et les accessoires à tout moment. Tool France PROMAC, JPW Industries-Europe 9 Rue des Pyrénées ZI du Bois Chaland 91090 LISSES / EVRY, France www.promac.fr...
