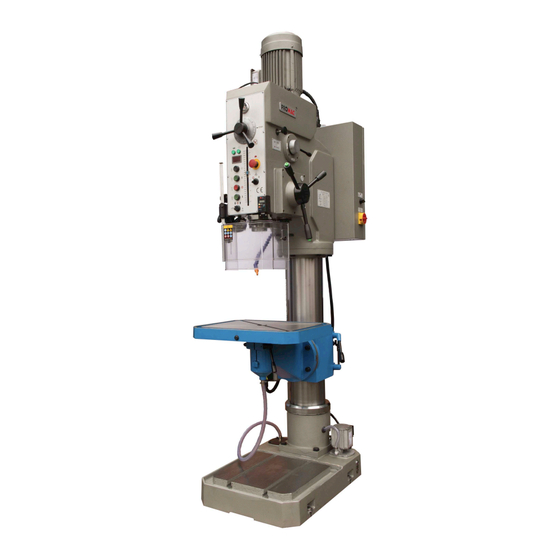

Promac JDT-5030 Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Drill Press
Bohrmaschinen
Perceuses
Schweiz / Suisse
JPW (TOOL) AG
Ackerstrasse 45, CH-8610 Uster,
Switzerland
www.promac.ch
France
TOOL FRANCE SARL
9 Rue des Pyrénées, 91090 LISSES, France
www.promac.fr
05-2019
JDT-5030

Advertisement

Table of Contents
loading

Related Manuals for Promac JDT-5030

Summary of Contents for Promac JDT-5030

  • Page 1 05-2019 Drill Press JDT-5030 Bohrmaschinen Perceuses Schweiz / Suisse France JPW (TOOL) AG TOOL FRANCE SARL Ackerstrasse 45, CH-8610 Uster, 9 Rue des Pyrénées, 91090 LISSES, France Switzerland www.promac.fr www.promac.ch...
  • Page 2 CE-Conformity Declara on CE-Konformitätserklärung Déclara on de Conformité CE Product / Produkt / Produit: JDT-5030 Drill Press / Säulenbohrmaschinen / Perceuses à colonne Brand / Marke / Marque: PROMAC Manufacturer / Hersteller / Fabricant: TOOL FRANCE SARL 9 Rue des Pyrénées, 91090 LISSES, France We hereby declare that this product complies with the regula Wir erklären hiermit, dass dieses Produkt der folgenden Richtlinie entspricht...

  • Page 3: Table Of Contents

    Total Operation Manual page Contents 1. Main use and features of the machine 2. Main technical data 3. Brief description of the driving system and its structure 4. Electrical system 5. Lubrication and coolant system 6. Hoisting and installation 7. Use and operation of the machine 8.
  • Page 4 Total Operation Manual page Dear end-user, Thank you very much for choosing our products. Please let us have the model of your machine, series number, as well as the name, address and correspondence method of your company in order to facilitate us to let you have a good service. Important notice: 1.

  • Page 5: Main Use And Features Of The Machine

    Total Operation Manual page 1.Main use and features of the machine: JDT series vertical drilling machines are our new products designed and developed by our- self based on our accumulated experience in so many years in this field. It is really a multi-function universal machine which could be widely used for small and middle sizes of work pieces for drilling, spot facing, reaming, tapping etc.
  • Page 6 Total Operation Manual page 1.10 A safety protection guard under the spindle box is available as it is not only prevent coolant splash while cutting but also could observe the machining status. The guard is interlocked with the spindle, so when the guard is opened, the spindle could not be running until the protection guard keeps his position.

  • Page 7: Brief Description Of The Driving System And Its Structure

    Total Operation Manual page 2.2 For the machine appearance and its main technical data, see diagram 1. 3. Brief description of the driving system and its structure: The machine consists of spindle box, column, machine base, worktable and its bracket, electric cabinet, coolant device and machine accessories, total seven component parts.
  • Page 9 Total 26 Operation Manual page 6 drawing 2 picture of transmission...
  • Page 10 Total 26 Operation Manual page 7 list of gear, worm wheel,worm and rack table（1） Number on the drawing Part 11016/ 12013/ 12011/Z 12012/ 32001/Z 31001/Z 32036/Z 32064/ 32041/ 32042/Z drawing ZY5050 ZY5050 Y5050 ZY5050 Y5050A Y5050A Y5050 ZY5050 ZY5050 Y5050 Number of teeth and starts...
  • Page 11 Total 26 Operation Manual page 8 4.1 list of gear, worm wheel,worm and rack table（1） Number on the drawing Part 32012/Z 32012/Z 32010/Z 32011/Z 30007/Z 32006/Z 32008/Z 32002/Z 32003/Z 32001/Z drawing Y5050 Number of teeth and starts Module Direction of helical angle Class of 7-6-6...
  • Page 12 Total 26 Operation Manual page 9 drawing 3 picture of rolling bearing...
  • Page 13 Total Operation Manual page Roller bearing table Table (2) Model Name Specification Q’ty Accuracy GB276,102 Deep racing ball bearing 15×32×9 GB276,104 Deep racing ball bearing 20×42×12 GB276,106 Deep racing ball bearing 30×55×13 GB276,108 Deep racing ball bearing 40×68×15 GB276,303 Deep racing ball bearing 17×47×14 GB276,304 Deep racing ball bearing...

  • Page 14: Electrical System

    Total Operation Manual page 4. Electrical system 4.1 Brief description The machine with foreign advanced single chip and superior quality electric element is controlled by electric system, the software system not only realize all kinds movement control ,but also has many protective function with catenation, the capability of this system is very good ,and the movement of this system is jarless and reliable.
  • Page 15 Total 26 Operation Manual Page 12 motor of spindle M1 High-speed spindle motor SQ8 signal switch limit switch SQ2 button of hand lever SB4 digital lable electric box B1 operation panel mm/r limit switch SQ3 switch of coolant pump SX2 limit switch SQ1 instruction switch（QS1）...
  • Page 16 Total Operation Manual page 4.5 Emergency stop operation: If emergency stop is necessary during operation, press emergency push button SB1,so the machine is completely stopped .After eliminating the breakdown ,release the lock of the push button then restart the machine. 4.6 Coolant pump Revolving the switch of coolant pump right, then the coolant pump is moving and working with the spindle.
  • Page 18 FU21(1A) High-speed signal switch for spindle motor emergency stop reverse rotate brown black limit position (below) for feed blue brown black limit position(above) for feed blue start/stop for feed out/in for tapping tapping switch for spindle stop rotate in clockwise FU22(3A)
  • Page 19 Total Operation Manual page Electric components list: Table (3) Name Specification Q’ty Remark Code of elements Breaker GV2-ME14 Breaker GV2-ME04 Breaker GV2-ME06 Instruction switch JCH13-20 SX1,2 Selection switch C2SS2-10B-10 CE4T-10R-02 Emergency stop button CP1-10G-10 SB2,5 Push button CP1-10B-10 Push button Push button CP1-10R-01 HL1,HL2...

  • Page 20: Lubrication And Coolant System

    Total Operation Manual page 5.Lubrication and coolant system: 5.1 Lubrication system: Parts and bearings inside of the spindle box are all automatically lubricated. Oil level shall be a little bit higher than the centerline of the oil window when you fill lubrication oil. Too much oil filling will cause overflowing.
  • Page 21 Total 26 Original Instruction page 18 drawing 6 picture of lubrication Chart of lubrication position No.of lubrication Grease designation lubrication period lubrication position position Grease up once every 3 oil pool of spindle box month Surface of main spindle Oiling once for each ISO VG33 machinery oil sleeve shift...
  • Page 22 Total 26 Operation Manual page 19 mm/r       drawing 7. picture of hoisting...

  • Page 23: Use And Operation Of The Machine

    Total Operation Manual page 6.2 Installation: Working area of the machine shall be the size when the worktable rounds its column in one cycle. Its diameter is about Ø2000mm. Further more, space for the work pieces, toolbox, and machine accessories as well as operating and maintenance space must be considered. The machine should be placed on a solid ground.
  • Page 24 Total 26 Operation Manual page 21 mm/r       1600x1000 drawing 8 picture of installation of machine...
  • Page 25 Total Operation Manual page In case too tight mesh between tool shank and spindle taper and the tool cutter could not fall down after several strokes, then you have to use the normal way by using a taper wedge to dismounting the tool cutter.
  • Page 26 Total Operation Manual page Manual micro feed: Spindle micro feed needs two steps. First, put the feed rate lever( 5 )in the “idle” position. Secondly, push button ( SB4 ), then push up the micro feed hand wheel( 3 ) and make sure that the clutch is engaged, now the micro feed hand wheel could be turned and micro feed of the spindle works.

  • Page 27: Machine Adjustment

    Total Operation Manual page 7.7 Adjustment of worktable position: Symbols multi-use and convenience of the machine also reflects multi function of its worktable. Except its normal manual and auto up and down function, it can also be turned around the table itself, around the column and tilt in ±45°in horizontal position. Operation method for the table tilting Using a special tool to take out the taper pin and loosening four screw nuts on the bracket and manually turn the worktable to the required position then fastening the four screw nuts,...

  • Page 28: Machine Use And Maintenance

    Total Operation Manual page 9 Machine use and maintenance: 9.1 Before running the machine, carefully read the Operation Manual first, fully understand the structure of the machine and its performance and needs to familiar with locations for all levers and buttons. 9.2 Lubrication of the machine is very important.

  • Page 29: Machine Accessories

    Total Operation Manual page 9.10 Do not extend spindle quill too much, instead, a proper working table height is suggested .Clean the spindle taper hole and tool taper shank first before tool mounting. Unqualified or rusted or damaged taper shank is forbidden to use. 9.11 Dry agent inside of the electric box and regularly removing dustiness are necessary.
  • Page 30 Total Packing list page Case No.: 1/1 Dimension ( L ×W × H): 110×67 ×225 CM Gross weight:726kg Net weight: 696kg Name Specification and marks Q’ty Remark Machine 1 piece Drill chuck with lever 1-13: GB6087 1 piece Drill chuck adaptor 1 piece 4-3: JB3477 1 piece...
  • Page 31 3� 玄 : : : I "- 22 产 7�. 岑 1 夕 "' " " °'---- 多 ＼ 歹 气 · 三 、 感 丿 』 』 」 �ll , 、 Parts Breakdown For JDT-5030 Drill Press Drawing (1)
  • Page 32 Part List for JDT-5030 DRILL PRESS Part no. Descirption Size Qty. 1 JDT5030-1-001 Knurled screw bolt 2 JDT5030-1-002 Knurled knob 3 JDT5030-1-003 3X26 4 JDT5030-1-004 Scaled screw 5 JDT5030-1-005 Scaled nut 6 JDT5030-1-006 Support for the vernier 7 JDT5030-1-007 Slotted cheese head screws...
  • Page 33 Part List for JDT-5030 DRILL PRESS Part no. Descirption Size Qty. 49 JDT5030-1-049 Handle 50 JDT5030-1-050 Handle seat 51 JDT5030-1-051 Slotted set screw M6X20 52 JDT5030-1-052 Slotted set screw M5X10 53 JDT5030-1-053 Handle shaft 54 JDT5030-1-054 Indicator dial JDT5030-1-055-1 JDT5030-1-055-2...
  • Page 34 Part List for JDT-5030 DRILL PRESS Part no. Descirption Size Qty. 93 JDT5030-1-093 94 JDT5030-1-094 Feed gear 95 JDT5030-1-095 Slotted countersunk head screw M3X6 96 JDT5030-1-096 Knurlied knob 97 JDT5030-1-097 Bearing 98 JDT5030-1-098 Spline shaft（Ⅰ） 99 JDT5030-1-099 Gear 100 JDT5030-1-100...
  • Page 35 Part List for JDT-5030 DRILL PRESS Part no. Descirption Size Qty. JDT5030-1-140-1 Shaft JDT5030-1-140-2 141 JDT5030-1-141 O-ring 110X3.1 142 JDT5030-1-142G Feed cover 143 JDT5030-1-143 Hexagon socket head cap screws M5X25 144 JDT5030-1-144 Block 145 JDT5030-1-145 Hexagon socket head cap screws...
  • Page 36 Part List for JDT-5030 DRILL PRESS Part no. Descirption Size Qty. 187 JDT5030-1-187 Bearing 188 JDT5030-1-188 Washer 189 JDT5030-1-189 Bearing 190 JDT5030-1-190 Washer 191 JDT5030-1-191 seal ring 192 JDT5030-1-192 Worm shaft 193 JDT5030-1-193 194 JDT5030-1-194 Sleeve 195 JDT5030-1-195 Bearing 196 JDT5030-1-196 197 JDT5030-1-197 Spline shaft（Ⅳ）...
  • Page 37 Part List for JDT-5030 DRILL PRESS Part no. Descirption Size Qty. 235 JDT5030-1-235 Core bar JDT5030-1-236-1 Konb JDT5030-1-236-2 Spring JDT5030-1-236-3 External circlip 237 JDT5030-1-237 Slotted cheese head screws M4X30 238 JDT5030-1-238 Cover 239 JDT5030-1-239 Slotted cheese head screws M4X8 240 JDT5030-1-240...
  • Page 38 Parts Breakdown For JDT-5030 Drill Press Drawing (2) 沁 ＼...
  • Page 39 Part List for JDT-5030 DRILL PRESS Part no. Descirption Size Qty. 1 JDT5030-2-01G Base 2 JDT5030-2-02 Drainage plate 3 JDT5030-2-03 Slotted countersunk head screw M3X8 4 JDT5030-2-04 Cover 5 JDT5030-2-05 Water strainer 6 JDT5030-2-06 Plate 7 JDT5030-2-07 Slotted countersunk head screw...
  • Page 40 Part List for JDT-5030 DRILL PRESS Part no. Descirption Size Qty. 50 JDT5030-2-50 B Worktable 51 JDT5030-2-51 Drainage plate 52 JDT5030-2-52 Cross Recess Head Screw 53 JDT5030-2-53 Cover plate 54 JDT5030-2-54 Small shaft 55 JDT5030-2-55 Worm gear 56 JDT5030-2-56 Sleeve...
  • Page 41 Les CG peuvent être envoyées sur demande par poste ou par e-mail . TOOL FRANCE SARL se réserve le droit d'effectuer des changements sur le produit et les accessoires à tout moment. TOOL FRANCE SARL 9 Rue des Pyrénées, 91090 LISSES, France www.promac.fr...
