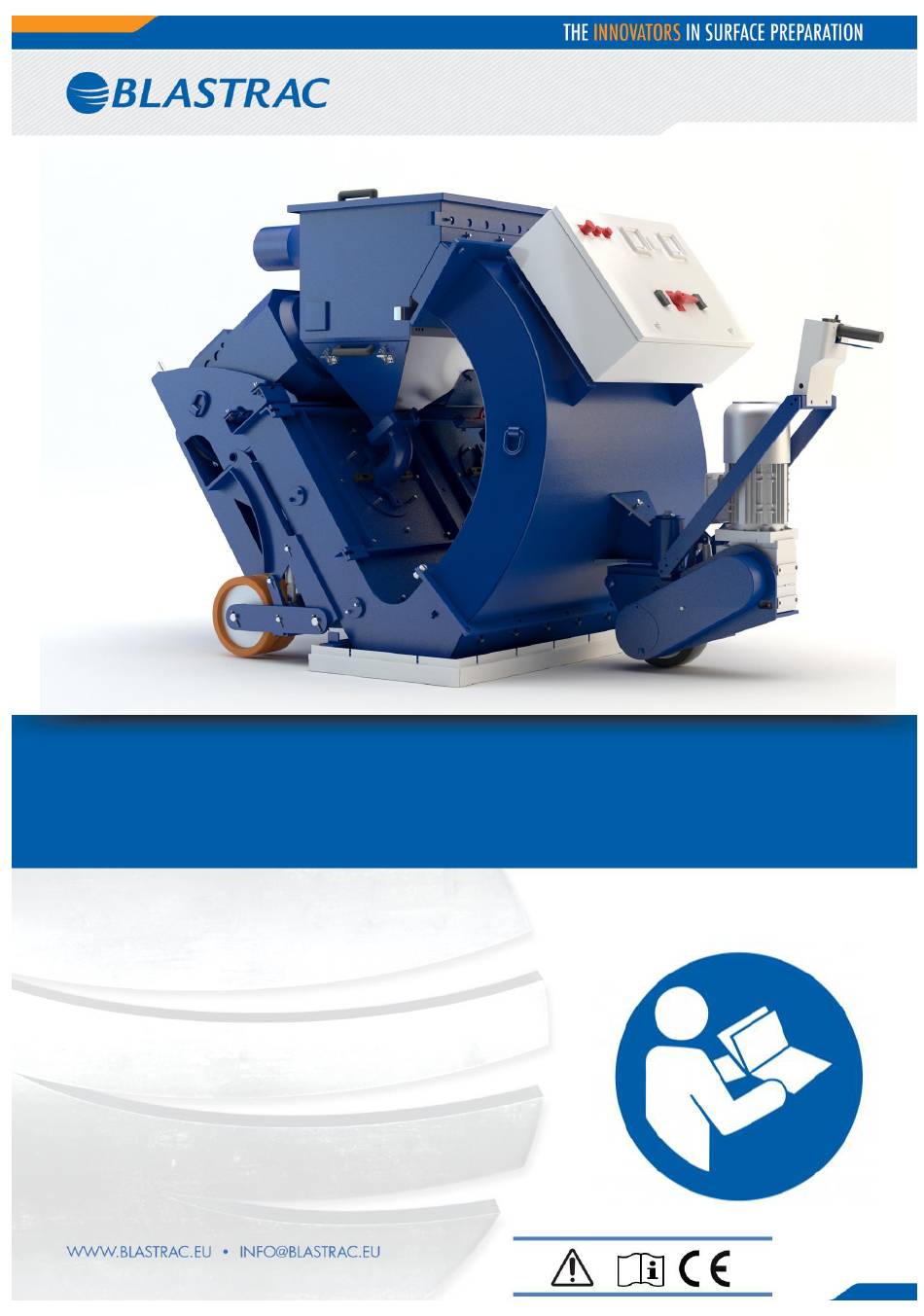

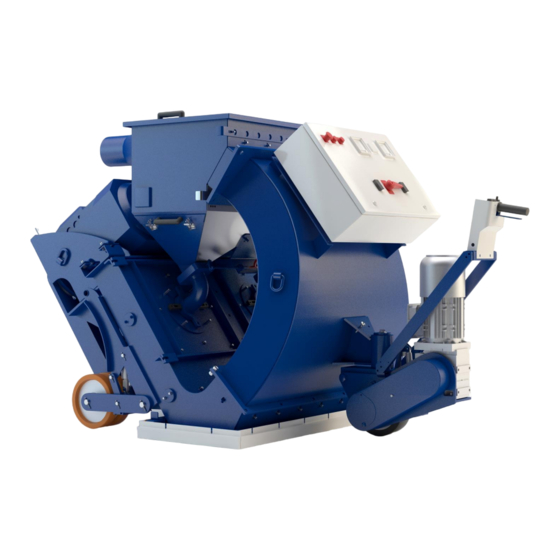

- Page 1 Original Instructions in English language OPERATING INSTRUCTIONS 2-48DS VERSION 3.3...
-
Page 2: Maintenance Log
Inspection comments Inspection before initial operation on: __________________________________________ __________________________________________ Date of initial operation: __________________________________________ Serial number & Year of manufacture: __________________________ _____________ Recurring inspections / maintenance log Date / Hour counter Findings Repairs / Cleaning Test *Competent person... -
Page 3: Table Of Contents
Table of contents Maintenance log 1. Introduction 2. Machine description 3. Safety Work area safety Electrical safety Personal safety Machine safety Shot / steel blasting safety Dust collector safety Maintenance safety Transport safety Signs on the machine 4. Before operation Checkpoints of electrical safety Checkpoints of machine safety Checkpoints of the surface to be treated... -
Page 4: Introduction
This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Blastrac BV offers a course on the use of the machine in order to make the operating and maintenance personnel familiar with all elements of the machine. -
Page 5: Safety
Electrical cables must be rolled entirely off of the reels. c) Any damage to the electric cables and/or electrical components is not permitted. d) If the power supply cable or plug is damaged, it must be replaced immediately. Only use original Blastrac parts. -
Page 6: Personal Safety
If the length of the brushes is, due to wear, less than 5mm or they are extremely deformed, the brushes have to be replaced. Check the Service Manual for the order numbers. All repair work has to be done by qualified Blastrac personnel, this guarantees a safe and reliable machine. -
Page 7: Shot/Steelblasting Safety
Be aware of your surroundings and machine operating level. Do not side hill, do not run on steep incline, this could cause machine to tip over. b) The weight of the 2-48DS is 1350 kg. Use a crane or lift when transporting the machine, use the lifting eyes / lugs of the machine. - Page 8 e) Pay attention that the drive unit does not turn away during lifting of the machine. Hold on to the steering handle until the machine is of the ground. When lifting the machine from the ground, always use the lowest lifting speed. The cables must first be tensioned at this speed;...
-
Page 9: Signs On The Machine
Signs on the machine The following stickers are placed on the machine. Meanings of these symbols are: DANGER Hazardous voltage in motor even when solid state controller is OFF. Disconnect main power before servicing motor, controller or associated wiring. Hearing protection is obliged. No lifting point. -
Page 10: Before Operation
4. Before operation Before using the machine it is of great importance to inspect the machine. It is not permitted to use the machine if the machine safety is not according the checkpoints below. Checkpoints power supply Use only extension cables for extending the main cable that are sized and marked in accordance with ... -
Page 11: Control Box
Control box The control box is equipped with all control elements and instruments for monitoring and controlling the machine. Closed Open Ammeters for left & right blast motor Hour counter Emergency shutdown Control lamp FAILURE Control lamp CONTROL VOLTAGE Control voltage ON / OFF Main switch Blasting ON / OFF (4) Ammeter... -
Page 12: Drive Control
Drive control Dial for setting the drive speed Buttons for: Forward driving (Hold to run) Overdrive (Hold to run) Drive handle (Hold to run) to activate the drive motor. When the lever is released the drive motor switches off. Manual moving of the machine Driving without connected drive motor (front wheel) When the traction wheel is not connected to the drive motor you can tilt the complete drive unit downwards, by pressing down on the handgrip of the drive unit. -
Page 13: Connecting The Drive Motor
Connecting the drive motor to the traction wheel Danger of crushing! Insert the quick release Use common sense, do pin inside the hole. not get distracted during the activities. Make sure the magnetic !WARNING! valves are CLOSED. Use only 1 finger to press the button of the Make sure the Blast quick release pin, and... -
Page 14: Blast Wheels
Blast wheels The heart of the blast cleaning machine are two blast wheels that throw the abrasive onto the surface to be cleaned by using centrifugal force. The blast wheels are placed in a protective housing lined with replaceable wear parts. The blast wheels are driven by two electric motors. Control cage Impeller Blades (set of 6) -
Page 15: The Abrasive Valves
Front magnets Side magnets Front brush Side brushes Flow bar Rear seal rubber Airflow adjuster 4.11 The abrasive valves Between the abrasive storage hopper and the feed spouts there are valves incorporating permanent magnets in order to control the abrasive flow towards the blastwheels. Any change in the opening of the magnetic valve causes the amount of abrasive fed to the blastwheel to change. -
Page 16: Operating
5. Operating During operating the machine, the following additional safety instructions must be followed closely. Before switching on the machine make sure that no-one can be endangered when the machine starts up. Make sure that no vehicles, such as forklift trucks and other equipment run over the electric cable and the dust hose. -
Page 17: Operation
Operation Carry out blasting in parallel tracks in such way that the dust hose and electric cable do not become twisted. The next figure shows the recommended blast paths leading away from the dust collector. Dust collector Dust hose and electric cable Blast cleaning machine Make sure that no vehicles, such as forklift trucks and other equipment run over the electric cable and the dust... -
Page 18: The Blast Pattern
The blast pattern The cast grooves on the control cage show the position of the control cage opening. The following adjustment standard value is valid: the control cage opening is approximately opposite to the throwing angle. The abrasive grain size plays an important role here. Different types of abrasive have different throwing characteristics due to their different weights and frictional resistance. - Page 19 Now the blasting procedure can be started. When a concrete surface is to be blasted, check the blast pattern again after some meters and re-adjust slightly if necessary. WARNING! Never loosen the cage clamps lever or try to adjust the blast wheel cover when the machine is in operation!!
-
Page 20: Maintenance
Pay attention to unusual noises or strong vibrations. Check for the cause of every big change. Call a technician if you have doubts about the cause or when a repair without a technician seems not possible without damages. Only use genuine Blastrac spare parts. Our specialists will be happy to assist you with more advice. -
Page 21: Changing The Liners
Store the cleaned and dry machine in a dry and humid free room. Protect the electrical motors from moisture, heat, dust and shocks. All repair work must to be done by qualified Blastrac personnel, this to guarantee a safe and reliable machine. Any guarantee on the machine is expired when: Non original Blastrac parts have been used ... -
Page 22: The V-Belt
The toothed belts The belt drives are designed for the installed driving power. To force a higher output through an excessive high tension of the belts will result in broken belts, damage to the bearings and causes loss of the total efficiency. Too low belt tension will cause slipping with the result of a very high temperature of the belt and a premature destruction of it. -
Page 23: The Chain Drive
6.6 The chain drive A chain drive needs relatively little maintenance when the correct chain is selected, when it is mounted correctly and, in this case of application, is not lubricated. The drive chain is protected by a chain guard. The chain guard prevents excessive contamination and prevents accidents. -
Page 24: Troubleshooting
Incorrect height adjustment of the Adjust the magnetic seals. surface or escaping magnetic seals. abrasive at the blast head Worn magnetic and/or brush seals. Replace the magnetic and/or brush seals. Poor abrasive quality. Contact Blastrac. Worn tune-up kit. Replace the tune-up kit. - Page 25 Check and clean the dust hose Ripped or damaged dust hose Replace dust hose Excessive wear in blast Wrong abrasive. Contact Blastrac. housing and rebound plenum The thrown abrasive blasts the housing Incorrect setting of the control cage and not the surface to be blasted. Adjust the blast pattern.
-
Page 26: Selection Of Abrasive
The Blastrac blast cleaning machines are designed and built to operate with Blastrac abrasive. Blastrac abrasive has a very high quality and has the rebouncing ability required for the efficient use of the machine. The selection of abrasive is very important since this is the material to carry out the surface treatment. -
Page 27: Technical Data
2x Ø150 mm The electrical diagrams of the electrical system are placed inside of the control panel. Design and specifications are subject to change without notice by Blastrac BV IMPORTANT NOTES: The indicated values are measured on new machines. Noise and vibration levels will vary in different circumstances. - Page 28 BLASTRAC EUROPE WE’RE READY TO ASSIST YOU! BLASTRAC THE NETHERLANDS BLASTRAC POLAND BLASTRAC FRANCE EUROPEAN HEAD OFFICE SALES & SERVICE CENTRE SALES & SERVICE CENTRE Utrechthaven 12 Golina, ul. Dworcowa 47E ZI - 29, Av. des Temps Modernes NL - 3433 PN Nieuwegein...
