Snapmaker Quick Start Manual page 13

3-in-1 3D Printer Quick Start Guide
Assemble the 3D Printer
RJ45 Cable
x 1
RJ25 Cable
x 1
Power Adapter
x 1
The RJ25 Cable (Heated
Bed Cable) is comparatively
smaller than the RJ45 Cable
(Module Cable).
All manuals and user guides at all-guides.com
10

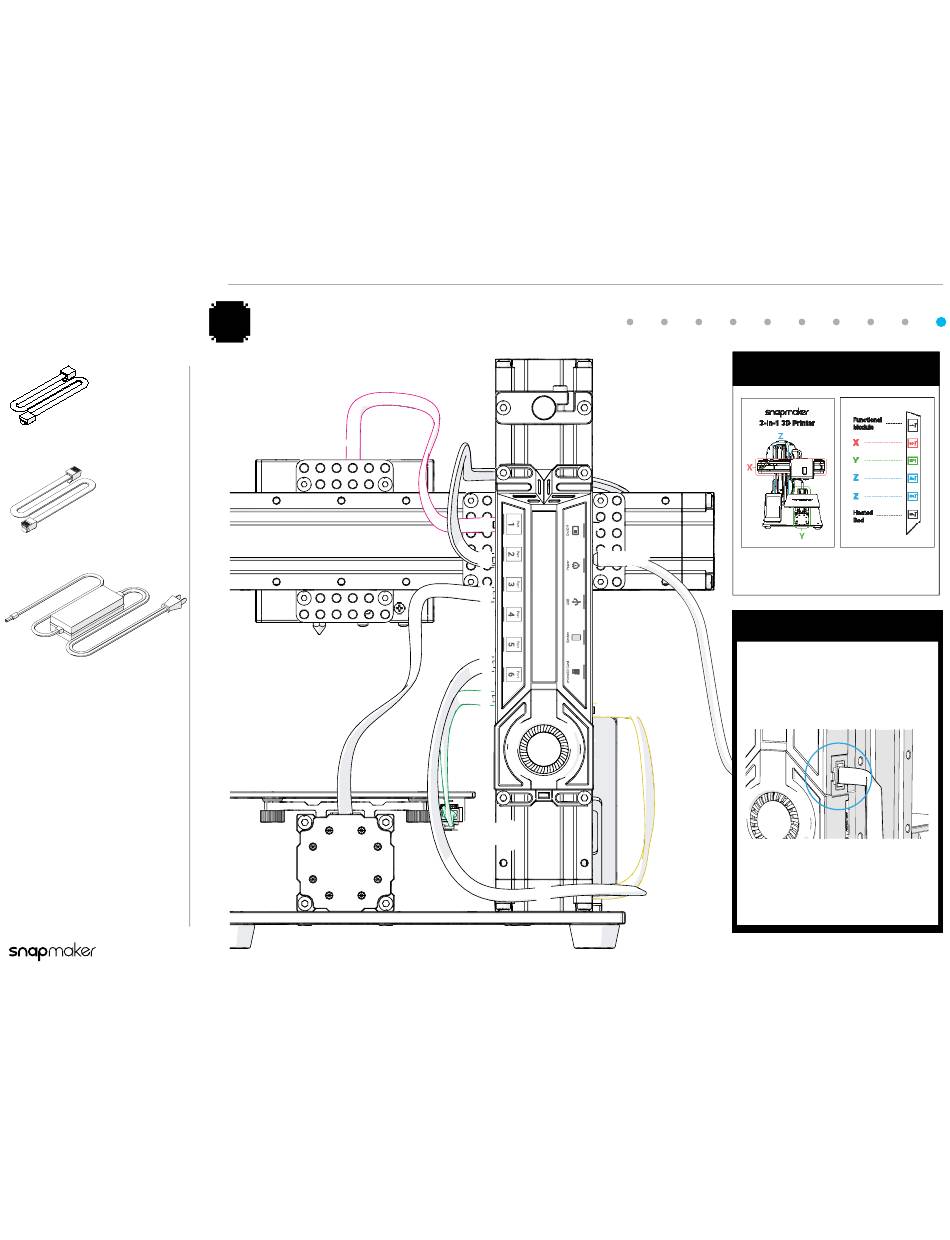

Connect the Modules to the Controller and Power On
1
(RJ 45)
3
1
Power
2
3
5
6
Screen
6
(RJ 25)
5
Notice
2
You can also connect the cables
according to the provided card.
!
Caution
Make sure all the cables are
correctly and properly connected as
illustrated before you power on the
machine.
Do NOT connect or disconnect the
cables or USB when the machine
is powered on.
13
