Moon Valley M-1900 Assembly Instructions

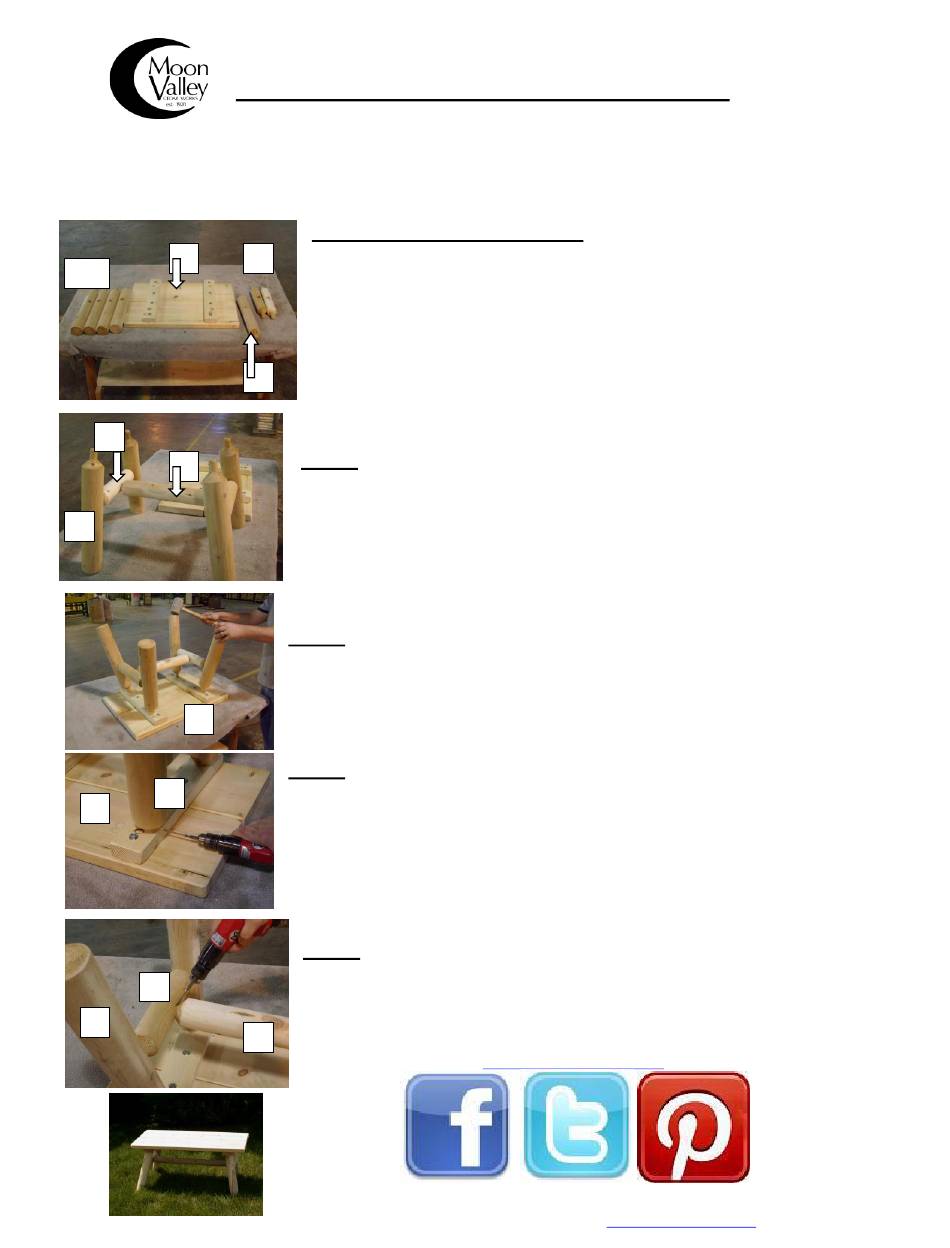

M-1900 42" Cocktail Table Assembly Instructions
NOTE: Please check contents and read directions carefully before assembly. If any items are missing or damaged, do
not take the product back to the store. Call Moon Valley customer service at 313-766-4950 and we will correct the
problem as promptly and as efficiently as possible. Also, checking or cracking of the logs is a natural part of the
drying aspect of cedar. This does not affect the structural integrity of the wood. This natural occurrence enhances the
D
A
B
C
A
D
A
D
B
A
rustic beauty of the product.
42" Cocktail Table Components
(4) Legs (A)
B
(2) Doweled Leg Braces (B)
(1) Doweled Cross-Brace (C)
(1) Pre-Assembled Table Top (D)
2" Screw
see attached hardware sheet
2 ½" Screw
see attached hardware sheet
C
Square-Head Bit
Tools Needed:
Rubber Mallet or Hammer (with padding),Drill or screwdriver
Step 1:
Insert doweled leg braces (B) into legs (A), join both leg sets with
the doweled cross-brace (C) (as shown). Use rubber mallet to tap dowels
into pre-drilled holes. If using hammer, be sure to pad impact area to avoid
Step 2:
Insert leg assembly into holes on bottom of table top (D) (as
shown). Use rubber mallet to tap leg dowels into pre-drilled holes. Then,
set table on level surface and adjust legs accordingly to ensure table is level.
Drill 2 ½" screws (N) into each leg dowel (A) (4 total), attaching
Step 3:
them to the table bottom (D) (as shown).
Drill 2" screws (O) into every leg assembly dowel (6 total),
Step 4:
securing the legs (A), leg braces (B) and the doweled cross-brace (C) (as
shown).
Thank you for your Moon Valley purchase and we hope that you enjoy your 42" Cocktail Table. To
C
view other Moon Valley products, please contact your local dealer or visit us at
Moon Valley Cedar Works 12717 Marlin Drive, Redford, Mi 48239
Phone: (313) 766-4950 Fax: (313) 766-4953
March 2012. Do not let children play with plastic bags.
see attached hardware sheet
damage.
www.moonvalleycedarworks.com.
www.moonvalleyrustic.com
