Moon Valley M-1500 Assembly Instructions

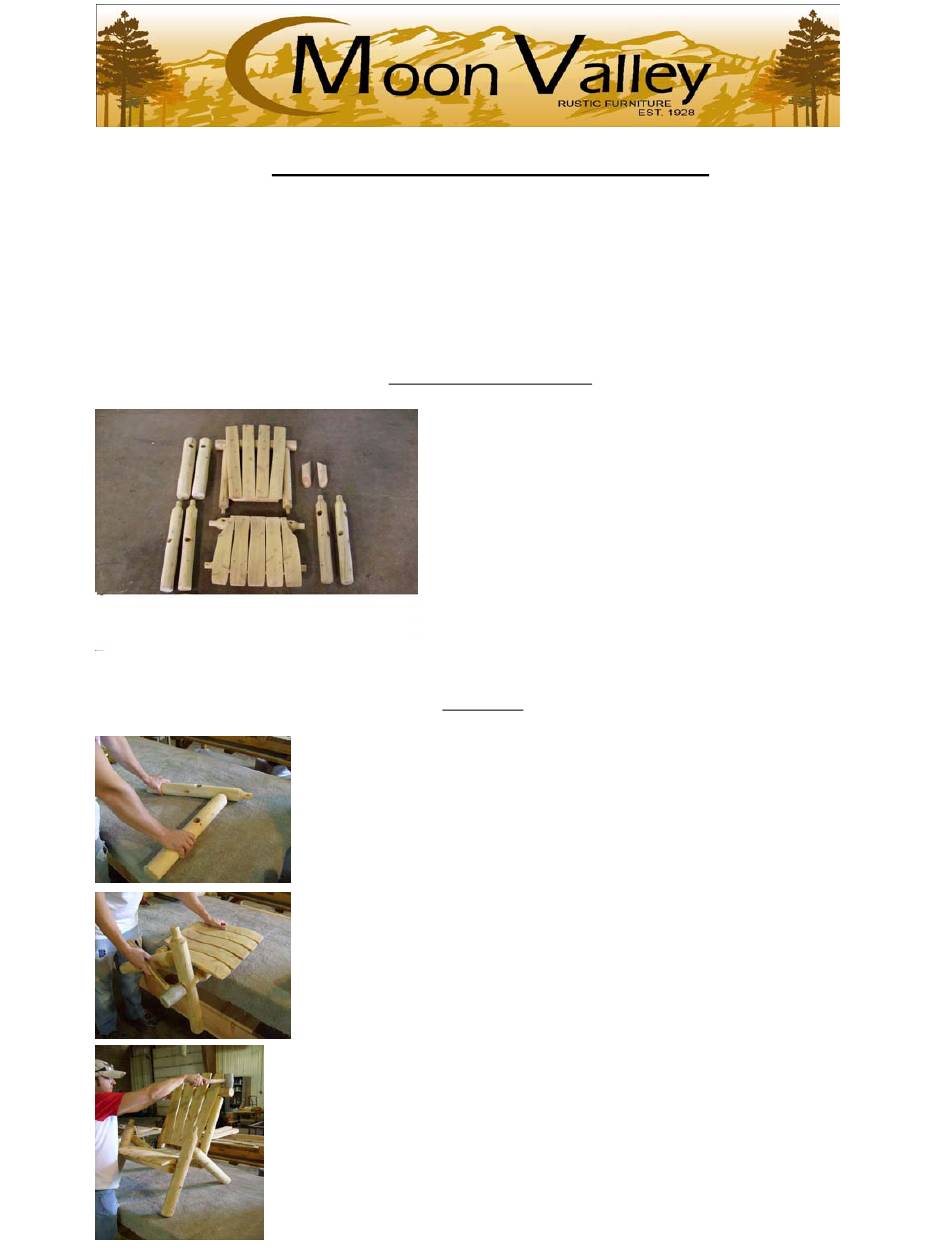

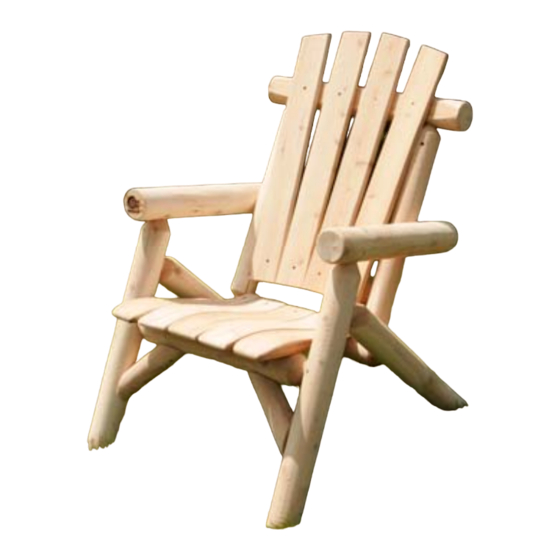

Lawn chair

NOTE: Please check contents and read directions carefully before assembly. If any items are

missing or damaged, do not take the product back to the store. Call Moon Valley customer service

at 866.332.1616 and we will correct the problem as promptly and as efficiently as possible. Also,

checking or cracking of the logs is a natural part of the drying aspect of cedar. This does not affect

the structural integrity of the wood. This natural occurrence enhances the rustic beauty of the

product. This item is in kit form which may require some light sanding.

M-1500 Lawn Chair Assembly Instructions

Lawn Chair Components

(1) Pre-Assembled Seat Back

(1) Pre-Assembled Seat

(2) Chair Arms

(4) Chair Legs (2 single-hole, 2 double-hole)

(2) 9" Braces

(2) 3 3/8" Lag Bolts

(4) 2 ½" Square Head Screws

(10) 2" Square Head Screws

Tools Required: Rubber Mallet or Hammer, ½"

Socket & Socket Wrench, Square-Head Screwdriver

Assembly

1. Insert doweled end of single-hole leg piece into double-hole leg

piece. Be sure that both remaining holes are facing the same

direction (as shown). Repeat process with remaining two leg pieces.

2. Attach leg assemblies to dowels on both sides of pre-assembled

seat (as shown). Use rubber mallet to ensure secure fit. If using a

hammer, be sure to pad impact area to prevent damage.

3. Insert doweled ends of pre-assembled seat back into the holes at the

rear of the seat assembly. If doweled ends do not line up, gently tap seat

back sidepieces in or out as needed. Tap top of seat back with rubber

mallet or hammer (with padding) to ensure secure fit (as shown).
