Moon Valley M-1601 Assembly Instructions

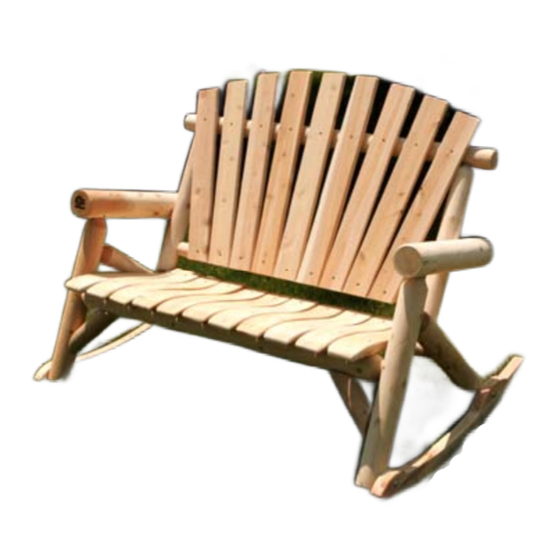

Settee rocker

Table of Contents

Download this manual

NOTE: Please check contents and read directions carefully before assembly. If any items are

missing or damaged, do not take the product back to the store. Call Moon Valley customer service

at 866.332.1616 and we will correct the problem as promptly and as efficiently as possible. Also,

checking or cracking of the logs is a natural part of the drying aspect of cedar. This does not affect

the structural integrity of the wood. This natural occurrence enhances the rustic beauty of the

Tools Required: Rubber Mallet or Hammer, ½" Socket & Socket Wrench, Square-Head

Screwdriver

M-1601 Settee Rocker Assembly Instructions

product.

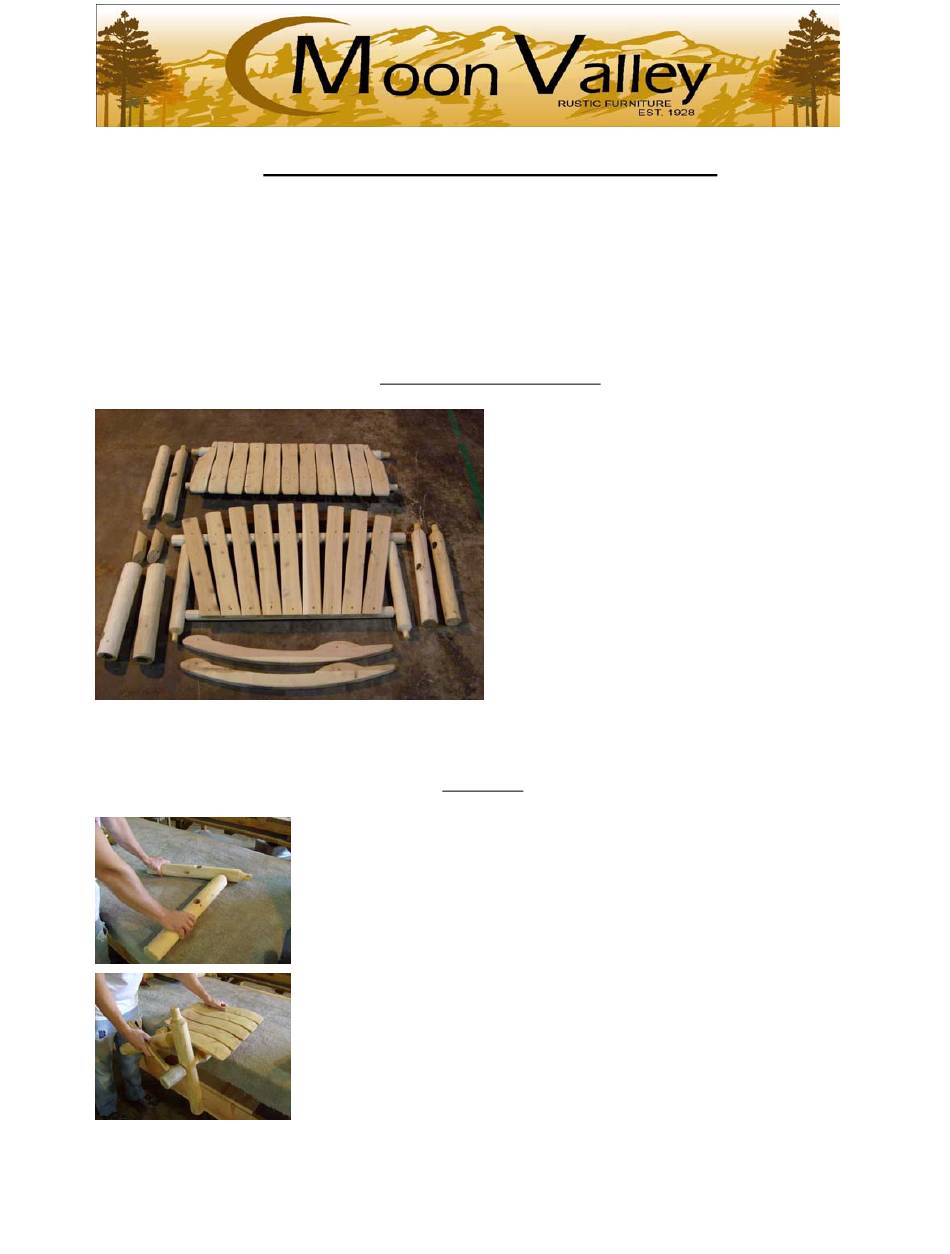

Settee Rocker Components

Assembly

1. Insert doweled end of single-hole leg piece into double-hole leg

piece. Be sure that both remaining holes are facing the same

direction (as shown). Repeat process with remaining two leg pieces.

2. Attach leg assemblies to dowels on both sides of pre-assembled

seat (as shown). Use rubber mallet to ensure secure fit. If using a

hammer, be sure to pad impact area to prevent damage.

(1) Pre-Assembled Seat Back

(1) Pre-Assembled Seat

(2) Chair Arms

(4) Chair Legs (2 single-hole, 2 double-hole)

(2) Rocker Runners

(2) 9" Braces

(6) 3 3/8" Lag Bolts

(4) 2 ½" Screws

(10) 2" Screws

Table of Contents

Do you have a question about the M-1601 and is the answer not in the manual?

Page 1 NOTE: Please check contents and read directions carefully before assembly. If any items are missing or damaged, do not take the product back to the store. Call Moon Valley customer service at 866.332.1616 and we will correct the problem as promptly and as efficiently as possible. Also, checking or cracking of the logs is a natural part of the drying aspect of cedar.
Page 2 3. Insert doweled ends of pre-assembled seat back into the holes at the rear of the seat assembly. If doweled ends do not line up, gently tap seat back sidepieces in or out as needed. Tap top of seat back with rubber mallet or hammer (with padding) to ensure secure fit (as shown).
Page 3 Attach rocker runners to legs using 3 3/8” lag bolts (as shown in both photos). Thank you for your Moon Valley purchase and we hope that you enjoy your Settee Rocker. To view other Moon Valley products, please visit us at www.moonvalleyrustic.com.
