Moon Valley M-1600 Assembly Instructions

NOTE: Please check contents and read directions carefully before assembly. If any items are
missing or damaged, do not take the product back to the store. Call Moon Valley customer service
at 866.332.1616 and we will correct the problem as promptly and as efficiently as possible. Also,
checking or cracking of the logs is a natural part of the drying aspect of cedar. This does not affect
the structural integrity of the wood. This natural occurrence enhances the rustic beauty of the
Tools Required: Rubber Mallet or Hammer, ½" Socket & Socket Wrench, Square-Head
Screwdriver

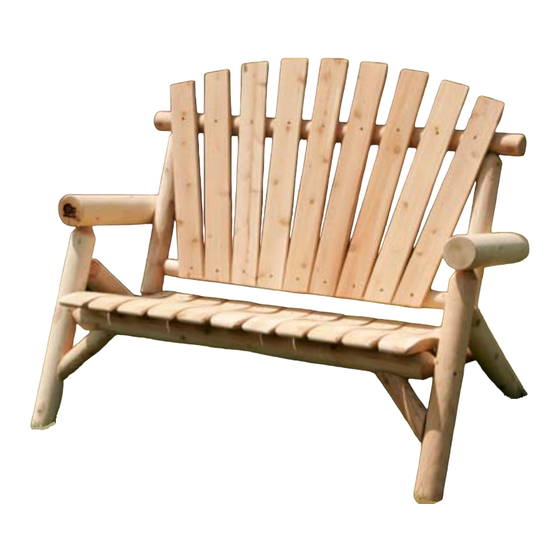

M-1600 Settee Assembly Instructions
product.

Settee Components

(1) Pre-Assembled Seat Back
(1) Pre-Assembled Seat
(2) Chair Arms
(4) Chair Legs (2 single-hole, 2 double-hole)
(2) 9" Braces
(2) 3 3/8" Lag Bolts
(4) 2 ½" Square Head Screws
(10) 2" Square Head Screws
Assembly
1. Insert doweled end of single-hole leg piece into double-hole leg
piece. Be sure that both remaining holes are facing the same
direction (as shown). Repeat process with remaining two leg pieces.
2. Attach leg assemblies to dowels on both sides of pre-assembled
seat (as shown). Use rubber mallet to ensure secure fit. If using a
hammer, be sure to pad impact area to prevent damage.
3. Insert doweled ends of pre-assembled seat back into the holes at the
rear of the seat assembly. If doweled ends do not line up, gently tap
seat back sidepieces in or out as needed. Tap top of seat back with
rubber mallet or hammer (with padding) to ensure secure fit (as
shown).
