The LMS3655xQEVM is specifically designed for automotive and high-performance industrial applications,
providing an output voltage of 5 V, 3.3 V, or an adjustable output at a continuous load of 5.5-A. The
LMS3635xQEVM is implemented using the same PCB board and components, but the IC current limit is
set for a maximum continuous load of 3.5-A. The LMS3655xQEVM can be used to evaluate both the
LMS3655-Q1 IC and the LMS3655 IC.

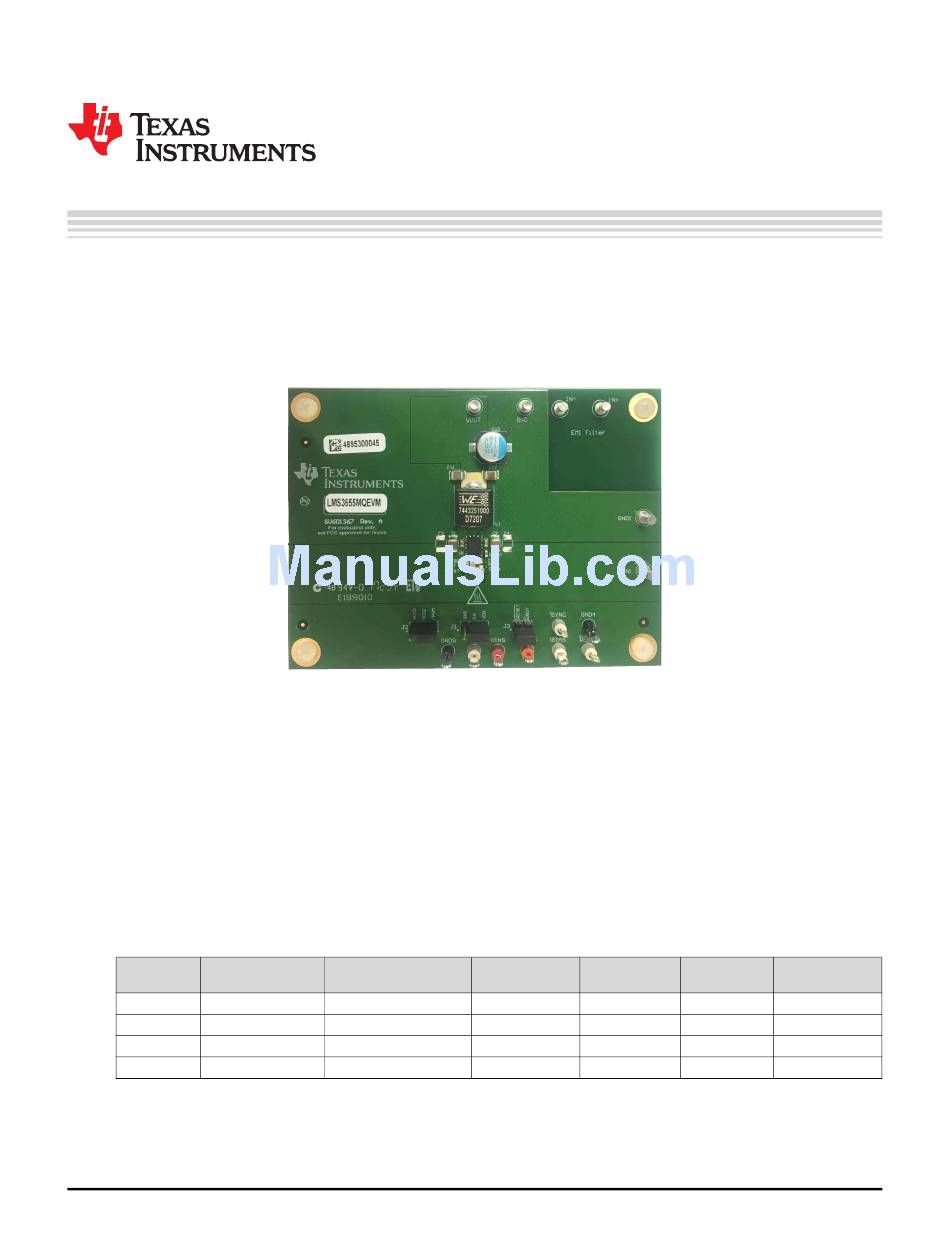

Figure 1. LMS3635xQEVM and LMS3655xQEVM Evaluation Board – Top View
All aspects of the LMS3635xQEVM and LMS3655xQEVM are optimized for high-performance industrial
and automotive markets. An input voltage range to 36 V eases the input surge protection design.
Exceptional dropout performance allows for the elimination of a boost stage in many designs for start and
stop applications. An open-drain RESET output, with filtering and Power Good delay, provides a true
indication of system status. This feature negates the requirement for additional supervisory circuitry,
saving cost, and board space. Seamless transition between PWM and PFM operation, along with a low
quiescent current, ensures high efficiency at all loads. The Texas Instruments LMS3655xQEVM and
LMS3635xQEVM help to evaluate the operation and performance of the LMS3655-Q1, LMS3655, and
LMS3635-Q1. The LMS36x5xQEVM is available for order in four variants.
See
Table 1
for orderable EVM variants and configurations.
Table 1. Orderable EVM Variants and Configuration for LM53625 and LM53635
EVM
EVM ORDERABLE
VARIANT
NAME
001
LMS3655AQEVM
002
LMS3655MQEVM
003
LMS3655NQEVM
004
LMS3635MQEVM
SNVU542 – July 2017
Submit Documentation Feedback
LMS36x5x-Q1 EVM User's Guide
CONTINUOUS
IC U1
LOAD
LMS3655AQRNLRQ1
5.5 A
LMS3655MQRNLRQ1
5.5 A
LMS3655NQRNLRQ1
5.5 A
LMS3635MQRNLRQ1
3.5 A
Copyright © 2017, Texas Instruments Incorporated
User's Guide
SNVU542 – July 2017
OUTPUT
SPREAD
VOLTAGE
SPECTRUM
5 V Adjusted
5 V Adjusted
Yes
3.3 V Fixed
Yes
5 V Adjusted
Yes
LMS36x5x-Q1 EVM User's Guide
AVAILABLE
Yes
Yes
Yes
Yes
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMS3655AQEVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments LMS3655AQEVM

  • Page 1 Seamless transition between PWM and PFM operation, along with a low quiescent current, ensures high efficiency at all loads. The Texas Instruments LMS3655xQEVM and LMS3635xQEVM help to evaluate the operation and performance of the LMS3655-Q1, LMS3655, and LMS3635-Q1.
  • Page 2: Table Of Contents

    Sense BIAS typical 3.3 V or 5 V RESET RESET output If J3 [RESET-VOUT], then RESET = VOUTS SYNC Switch node SYNC input External sync frequency source LMS36x5x-Q1 EVM User's Guide SNVU542 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 3: Schematics

    The fixed voltage option has an internal resistor divider, and the FB pin connects directly to the output capacitance. NOTE: Cvcc and Cbias must connect directly to AGND, pin 20. SNVU542 – July 2017 LMS36x5x-Q1 EVM User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 4 RFBB and RFBT must be placed as close to the FB pin as possible, and RFBB must be grounded to the AGND pin. LMS36x5x-Q1 EVM User's Guide SNVU542 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 5: Board Layout

    SNVU542 – July 2017 LMS36x5x-Q1 EVM User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 6 Figure 5. PCB Layout Top Layer 1 – Top View Figure 6. PCB Layout Mid Layer 2 GND Plane – Top View LMS36x5x-Q1 EVM User's Guide SNVU542 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 7 Figure 7. PCB Layer Mid Layer 3 – Top View Figure 8. PCB Layer Bottom Layer 4 – Flipped View (as Seen From Bottom of Board) SNVU542 – July 2017 LMS36x5x-Q1 EVM User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 8 Board Layout www.ti.com Figure 9. PCB Layer Composite Top Figure 10. PCB Layer Composite Bottom LMS36x5x-Q1 EVM User's Guide SNVU542 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 9: Operation And Test Setup

    NOTE: If the jumper J1 is set to [MODE-FPWM], the part will have a lower efficiency at light loads by maintaining the 400-kHz switch frequency. To measure the highest light load efficiency place the Jumper J1 in [AUTO-MODE]. SNVU542 – July 2017 LMS36x5x-Q1 EVM User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 10: Measure Load Transient

    If the common-mode choke is added, remove the bypass resistors R1 and R2. Figure 11. 3-Stage EMI Filter Schematic LMS36x5x-Q1 EVM User's Guide SNVU542 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 11: Posts, Probes, And Jumpers

    SYNC function can be used for custom frequency modulation techniques. Spread spectrum will always be disabled when a SYNC signal is present. SNVU542 – July 2017 LMS36x5x-Q1 EVM User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 12: Jumper J2

    Test Point, Miniature, Orange, TH 5013 TP3, TP4, TP6, TP7 Test Point, Multipurpose, White, TH 5012 TP5, TP8 Test Point, Miniature, Black, TH 5011 LMS36x5x-Q1 EVM User's Guide SNVU542 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 13 Table 3. Bill of Materials (continued) DESIGNATOR VALUE DESCRIPTION PART NUMBER Variant 001 LMS3655AQEVM Adjustable 5-V, 5.5-A Without Spread Spectrum 3.5/5.5-A Synchronous Buck Regulator for Automotive LMS3655AQRNLRQ1 Applications, RNL0022A 12.4 k RES, 12.4 k, 1%, 0.063 W, 0402 CRCW040212K4FKED 49.9 k...
  • Page 14: Efficiency And Line And Load Regulation

    LMS3 = 5 V AUTO = 5 V FPWM Figure 14. LMS3655MQEVM Load and Line Regulation Figure 15. LMS3655MQEVM Load and Line Regulation LMS36x5x-Q1 EVM User's Guide SNVU542 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 15: Load Transients

    The best starting point for an optimized design is the Texas Instruments WEBENCH Design Tool. Conducted EMI Figure 18. Conducted EMI Setup SNVU542 – July 2017 LMS36x5x-Q1 EVM User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 16 EMI Results for 5 Vout With Spread Spectrum. Blue- EMI Results for 5 Vout With Spread Spectrum. Blue- Average and Yellow-Peak Average and Yellow-Peak LMS36x5x-Q1 EVM User's Guide SNVU542 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
