Chapter 3 Operation
Loading Cassette Tray (Midwest Type)
To load a film cassette into a "Midwest" type cassette tray, proceed as fol-
lows:
CASSETTE GRIP
18
1. Float the table top fully back.
2. Pull cassette tray from receptor using tray handle (see Figure 8).
3. Pull back on front cassette grip to open both grips.
4. Position slide guides ("L" brackets seated in channels) to cassette
size using indicators on cassette tray (press center brass button
to allow movement).
5. Insert cassette into tray (back end first).
6. Lock cassette into tray.
7. Push front grip against cassette.
8. While pushing front grip against cassette, turn cassette lock han-
dle to lock position.
9. Push tray into receptor. The cassette is now in exposure position.
SLIDE GUIDES

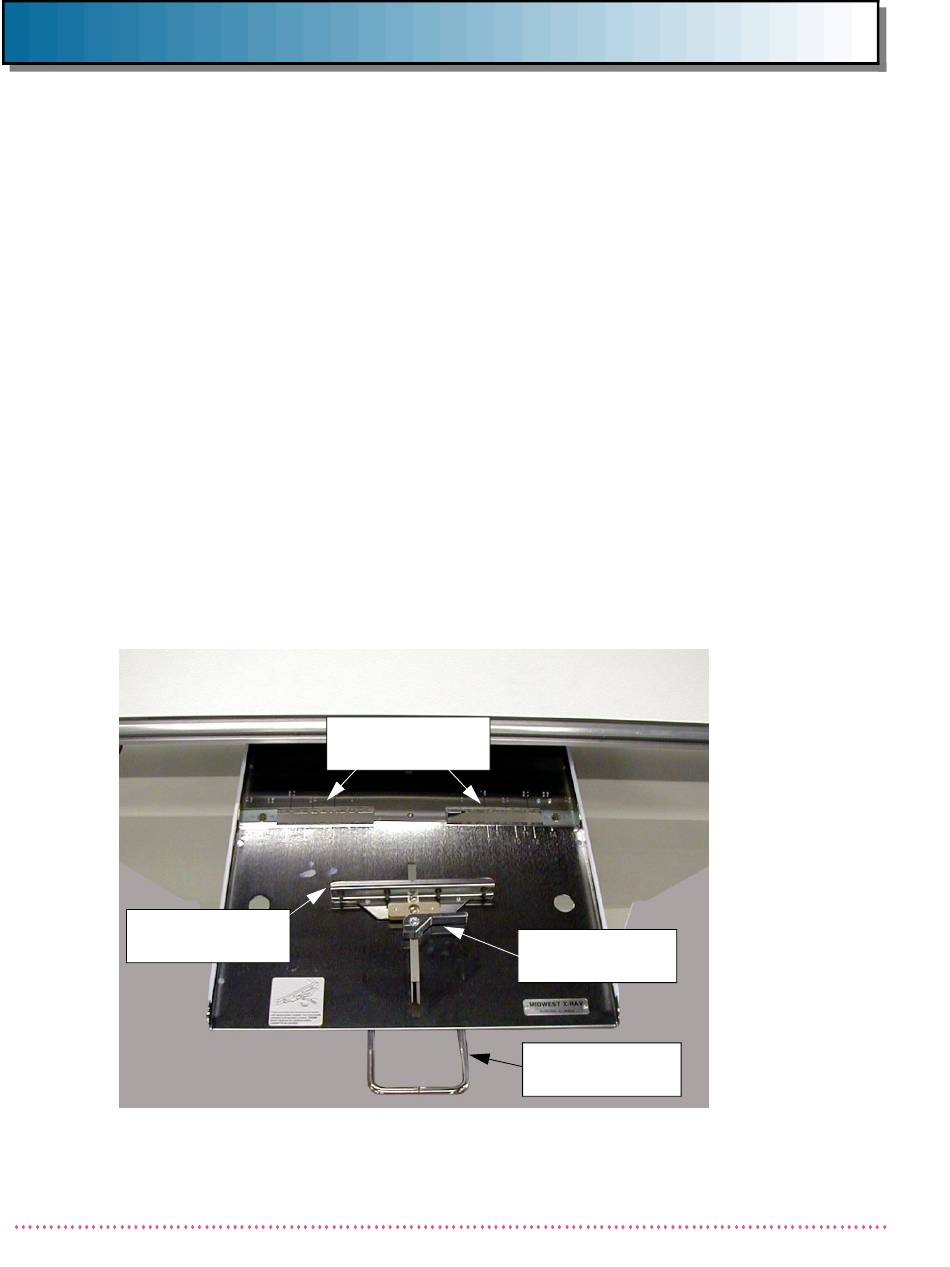

Figure 8. Midwest Cassette Film Tray

LOCK HANDLE

TRAY HANDLE
