CADD-legacy

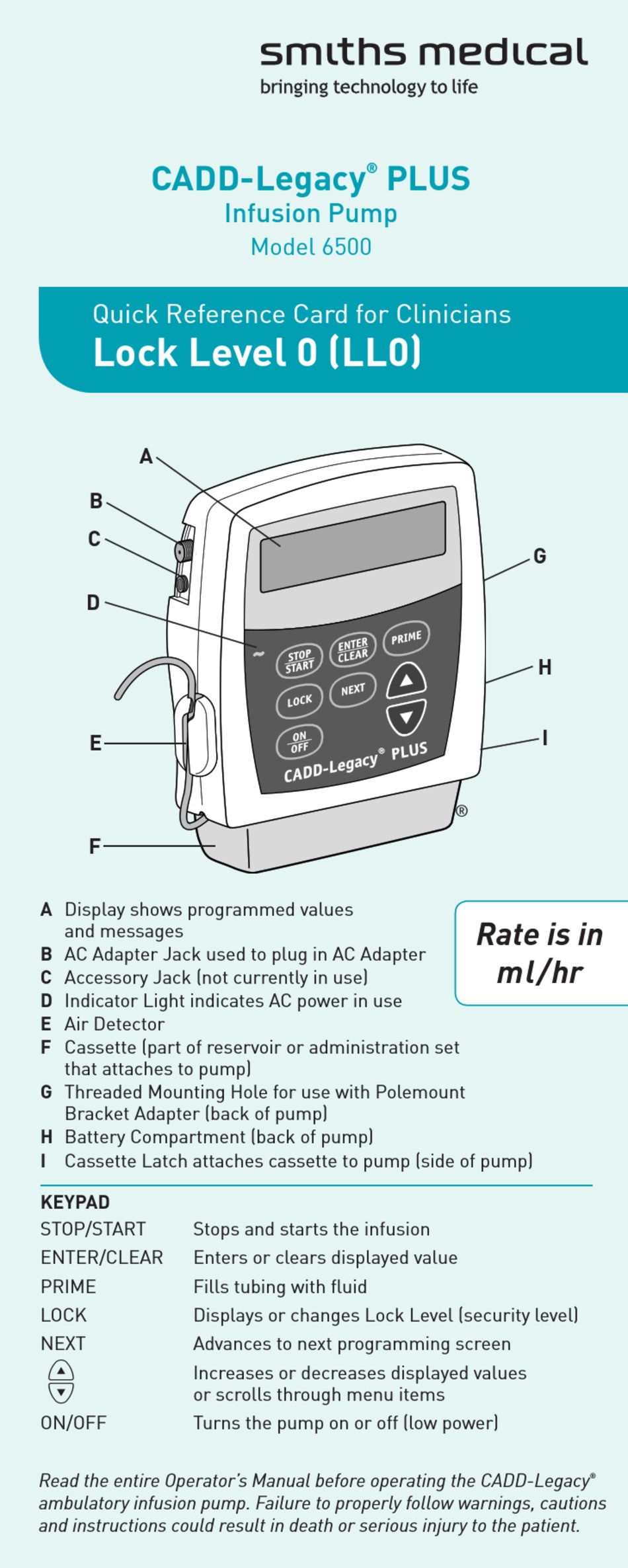

Quick Reference Card for Clinicians
lock level 0 (ll0)
A
b
C
D
e
F
A Display shows programmed values
and messages
b AC Adapter Jack used to plug in AC Adapter
C Accessory Jack (not currently in use)
D Indicator Light indicates AC power in use
e Air Detector
F Cassette (part of reservoir or administration set
that attaches to pump)
g Threaded Mounting Hole for use with Polemount
Bracket Adapter (back of pump)
h Battery Compartment (back of pump)
i Cassette Latch attaches cassette to pump (side of pump)
KeYPAD
STOP/START
ENTER/CLEAR
PRIME
LOCK
NEXT
´
Î
ON/OFF
Read the entire Operator's Manual before operating the CADD-Legacy
ambulatory infusion pump. Failure to properly follow warnings, cautions
and instructions could result in death or serious injury to the patient.

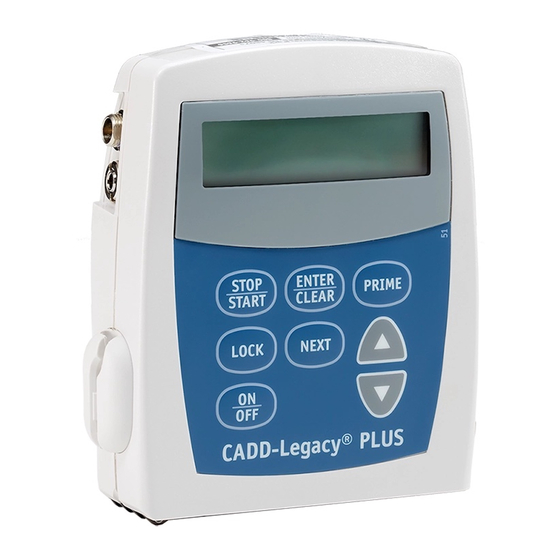

infusion Pump
Model 6500
Stops and starts the infusion
Enters or clears displayed value
Fills tubing with fluid
Displays or changes Lock Level (security level)
Advances to next programming screen
Increases or decreases displayed values
or scrolls through menu items
Turns the pump on or off (low power)
Plus
®
®
®
Rate is in
g
h
i
ml/hr
®
Advertisement
Table of Contents
Related Manuals for Smiths Medical CADD-legacy Plus 6500
Summary of Contents for Smiths Medical CADD-legacy Plus 6500
- Page 1 CADD-legacy Plus ® infusion Pump Model 6500 Quick Reference Card for Clinicians lock level 0 (ll0) ® ® A Display shows programmed values Rate is in and messages b AC Adapter Jack used to plug in AC Adapter ml/hr C Accessory Jack (not currently in use) D Indicator Light indicates AC power in use e Air Detector F Cassette (part of reservoir or administration set...
- Page 2 ProgrAmming / seT-uP seQuenCe ConTinuous DeliVerY batteries must be installed; pump must be stopped and in ll0. noTe: Value not saved is displayed if a value is scrolled and enTer/ CleAr is not pressed. Press neXT to continue programming. WArning: if the pump is dropped or hit, inspect it for damage. Do not use a pump that is damaged or is not functioning properly.
- Page 3 ProgrAmming / seT-uP seQuenCe CONTINUED 22. Verify the setting is correct. (To change Verify Air Detector status setting, see Biomed Functions section.) 23. Press NEXT. Verify upstream 24. Verify the setting is correct. (To change setting, see Biomed Functions section.) sensor status 25.
- Page 4 PumP oPerATions CONTINUED Pump must be stopped and in ll0. biomed Functions 1. Press LOCK. 2. Press LOCK or ENTER/CLEAR. To Access 3. Press ´ Î until the biomed code appears. 4. Press LOCK or ENTER/CLEAR. 5. Press NEXT to go through settings. To Turn Air 6.
- Page 5 ChAnging The CAsseTTe 1. Stop the pump. To remove used 2. Close all tubing clamps. Cassette 3. Disconnect tubing from patient. 4. Use coin to unlatch used cassette. 5. Remove and discard used cassette. 1. Close all tubing clamps. To Attach new 2.
- Page 6 United States. CADD, CADD-Legacy, the Medication Cassette Reservoir design and the Smiths Medical and CADD design marks are trademarks of Smiths Medical. The symbol ® indicates the trademark is registered in the U.S. Patent and Trademark Office and certain other...
