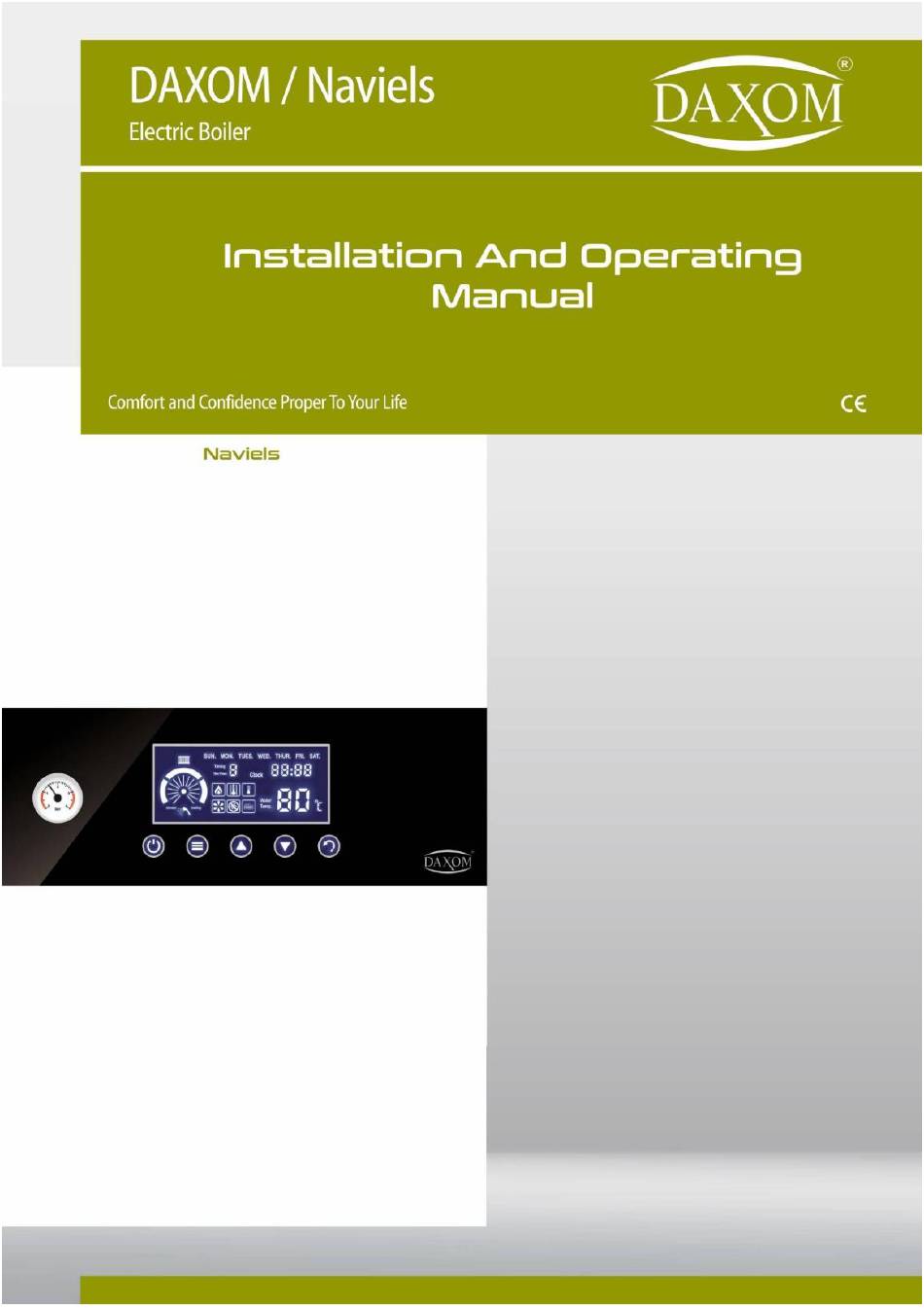

DAXOM UKDAX-10EDT Installation And Operating
  1. Manuals
  2. Brands
  3. DAXOM Manuals
  4. Boiler
  5. Naviels UKDAX-10EDT
  6. Installation and operating

DAXOM UKDAX-10EDT Installation And Operating

Hide thumbs Also See for UKDAX-10EDT:

Advertisement

Quick Links

Download this manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UKDAX-10EDT and is the answer not in the manual?

Questions and answers

Related Manuals for DAXOM UKDAX-10EDT

Summary of Contents for DAXOM UKDAX-10EDT

  • Page 2: Safety Warnings

    TO DAXOM USER In order to perform device’s function properly and for your safety follow the instructions mentioned in the user manual of the device during the mounting and the usage of the device. In case of an unauthorized mounting and maintenance, the device will be void from warranty cover.
  • Page 3  Remove all packing wastes carefully without giving damage to human and environment health.  In case of water leakage happens, water feed must be close and authorized service agency must be immediately informed.  Hydraulic system operation pressure must be between 1 and 2 bars therefore it must not exceed 3 bars.
  • Page 4       2. SUGGESTIONS FOR ECONOMICALLY USED  Adjust ambient temperature according to your need. Increasing 1 degree of ambient temperature increases your energy consumption about %6.  Having homogeneous heating at parts according to intended use that is placed at the heating place, increases saving.

  • Page 5: Configuration Of Device

     3. CONFIGURATION OF DEVICE Capacity 10-24 KW 30-48 KW 72-96 KW...

  • Page 7: Technical Informations

    4. TECHNICAL INFORMATIONS Technical Specifications Hot Water Power Dimensions Weight Expansion Amount Model (l/dak)(Δt=25 (kW) Y*G*D (mm) (Kg) Tank(l) 3~400 V 50 Hz Electrical Heating and Hot Water UKDAX-10EDT 700*400*220 23,5 UKDAX-12EDT 700*400*220 23,5 UKDAX-16EDT 700*400*220 25,0 UKDAX-18EDT 700*400*220 25,0 10,4 UKDAX-20EDT...
  • Page 8 Technical Specificitions Radiator Tap Water Min. Operation Pressure Max. Operation Pressure Min. Setting Temperature Max. Setting Temperature ¾ ½ Connections inch ETP Model Connections inch...
  • Page 9 5. INSTALALTION OF DEVICE BOILER INSTALLATION MUST BE MADE BY AUTHORISED PERSONNEL. 5.1. Installation Conditions and Safety Warnings Obey minimum distance that is anticipated for installation in order to reach the device for making maintenance and repair. For the right position of the device; ...
  • Page 10  When heating system increases over 3 bar, water disposal starts from safety valve.  There is no need to have safety valve for tap water cycle but be sure that water pressure is not exceed the 6 bar. If you suspect about this, you can have pressure reduce valve installed to device orflat entrance.
  • Page 11 5.2.1.1. Filling Heating System for EDT ve EDM Models UKDAX –xxEDT and UKDAX –xxEDM this process is made with blue colour filling tap under the device. Filling process must be done by implementing following instructions.  Make sure that cold water inlet tap is open. ...
  • Page 12  Discharge the accumulated air inside radiators by opening air relief cock  placed in side of radiators and close when water starts to flow.   When acumulated air from radiators is discharged, it can be decrease at heating system water pressure. Make sure that heating system water pressure is between 1-1,5 bar.
  • Page 13 5.2.2. Electric Connection Electrical installation must be done by authorized person according to device capacity and with suitable diameter cable which is determined according to cable length. Electrical installation must have suitable specification for cut off boiler power and residual current device that has ampere value and fuse separately. Fuse must be near to device.
  • Page 14 3~400 V. 50 Hz Electrical Heating and Hot Water 3~400 V.50 Hz Electrical Heating Only UKDAX UKDAX 5*2,5 5*2,5 3*15,2 3*16 3*15,2 3*16 10EDT 10ETT UKDAX UKDAX 5*2,5 5*2,5 3*18,2 3*20 3*18,2 3*20 12EDT 12ETT UKDAX UKDAX 5*2,5 5*2,5 3*24,3 3*25 3*24,3 3*25...

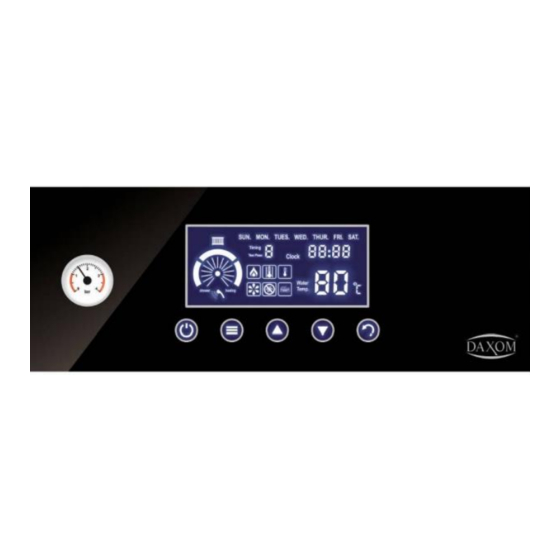

  • Page 15 6. DEVICE OPERATION AND USAGE 6.1. LCD Display Operating Condition and settings of the device can be follow from LCD panel. Radiator Operation Indicator Days Of Week Time programming. Can be made 3 pcs time programming Hour Capacity Indicator Ready to operation indicator Hot Water Heating Indicator Radiator Heating Indicator Over Temperature Indicator...
  • Page 16 6.2. Control Buttons Control of the device is done with buttons placed under the LCD Display. 6.3. Operation Od Device First operation of the device must be absolutely done by authorized service. Our company is not responsible from damages and accidents which can be occured with intervention to device by unauthorized people.
  • Page 17   .After all symbols on the LCD screen appear a few min, LCD screen will be as in the following       Hold 2-3 min to button for device ON . Device keeps last settings in its memory before OFF. When it is ON again, starts to operate with same settings.
  • Page 18  When operation of the device is radiator heating before OFF, device operates for is seen with “heating” word. after pump operates about 1 radiator heating. min, device starts to radiator heating. is seen. Warning beep is heard after process of pressing knob. For long time pressing knobs (forexample 2-3 seconds), before hearing warning warning beep, it does not mean pressing knob.
  • Page 19 6.4. Operation Parameter Setting 6.4.1. Day and Hour Setting   Switch of the device      button 5-6 seconds. Days start to blink. Hold ...
  • Page 20   Days are set by pressing with one second intervals to buttons.   button hour blinks. Press  By pressing one second interval hour is set between 0 and 23   ...
  • Page 21   button , minute blinks Press   By pressing button one second interval min set between 0 and 60. By pressing button or if not pressing any button for a 10 sec , exit from setting menu by saving settings.
  • Page 22 6.4.2. RADIATOR TEMPERATURE SETTING While symbols are seen at LCD Display, (when device is operating for radiato system) radiator heating setting can be made between C and 80 C by buttons. While radiator heating setting is made, “Water Temp” pressing expression fizzle out, setting temperature starts to blink.
  • Page 23 Tap Water Temperature Setting ; symbols are seen at LCD Display. symbol blinks. (when devşce water heating operates) setting can be When made between 30 C ile 65 C by pressing If operation mode is set as water heating, it is posiible to change water temperature at standby mode.
  • Page 24 Tap Water Heating is always priority. 6.4.4. Temperature Difference Setting Tempereature difference between Heating Exit and Heating return of device can be set. While the device is in normal operation mode,   Enter setting menu by pressing 2-3 seconds. ...
  • Page 25   ΔT temperature difference is set with buttons.   Exit setting menu by pressing 6.4.5. Room Thermostad Setting It is possible to command device with room thermostad. In this way, device operates according to temperature of environment of room thermostad place. Room thermostad temperature must be done by authorized service while first operation of device is making.
  • Page 26 consciously or by mistake. For radiator heating modes, is users want, they can provide operation of device max 55C by changing into heating mode to ground heating mode. While symbol is seen at radiator mode , it is not seen at floor heating mode.
  • Page 27   “0” is chosen with symbols for floor heating mode. “1” is chosen for radiator heating. For floor heating systems because of heating mode is set from inside device by authorized service, in this menu “0” set can not be changed. ...
  • Page 28 Definitely temperature must not set over 55C for floor heating systems. AyarIn case of setting our companies is not responsible from damages or accidents that may occur. 6.4.7. Capacity Setting Device can operate with 3 different capacities. P1 mean is 1/3 capacity, P2 mean is 2/3 capacity, P3 mean is full capacity.
  • Page 29  With buttons, device capacity can be set as P1,P2 or P3. Indicator lights change according to chosen capacity.
  • Page 30   Exit menu by pressing button. 6.4.8. Operation Mode Setting Device can operate 3 different operation mode.   Radiator Heating Mode: Device only makes radiator heating. Water heating does not occur.   Tap Water Operation Mode: Device only heats the tap water. This mode can be also named as “Heater”...
  • Page 31   button one second interval until “heating” and / or “shower” blink. Press    button preferred mode is chosen . If “heating” is chosen With  device only operates for radiator heating. If shower” is chosen device operates for only tap water heating.
  • Page 32 If “heating” and “shower” are chosen at the same time device operate for both tap water and radiator heating.    button. Exit setting menu by pressing 6.4.9. Time Programming Setting The device can be programmed daily and weekly for heating. With 7 different time programs, the start and end times of the program, the operating temperature of the device and the ΔT temperature difference can be adjusted.
  • Page 33   Press button 2-3 second and enter setting menu.  button one second interval until “Timing Time Phase” is seen. Timing Press  program blink.   By pressing buttons timing program is chosen between 1 and 7.
  • Page 34   Press button.  buttons timing program is “ON” position. If it stays at “OFF” With  position, can not be entered to timing program.   button week day / days are chosen. By pressing...
  • Page 35 With buttons, intended week day or days can be chosen. Week days are group as in the following.   All days can be chosen (SUN. MON. TUES. WED. THUR. FRİ. SAT.)    Weekends (SUN. SAT.)  Weekdays (MON. TUES. WED. THUR. FRI.)
  • Page 36   Days can be chosen one by one   button , program start hour blinks. Press   With buttons, program start hour is determined.
  • Page 37   Press button. Program start minute blink.   With buttons, program start minute is determined.    Press button. Program finish hour blink.
  • Page 38   With buttons program finish hour is determined.    button. Program finish min blink. Press  With buttons program finish minute is determined.
  • Page 39   Press button. Temperature indicator blink.    Operation range of intendent program is chosen with buttons.   Press button. symbol and exit / return temperature difference blink.
  • Page 40  Intendent ΔT (exit /return temperature difference ) is chosen with  buttons  . Other intetendent time program is chosen and repeat stating from 3 Press  step. ...
  • Page 41  Setting all time programs are not necessary. You can set time programs between 1 and 7 as much as you want. Because of unadjusted programs remain   “OFF” position, they will not be active.  After programming is finished, when it is pressed to button or not pressing ...
  • Page 42 For short time absence periods, provide the device OFF by pressing button 2 or 3 seconds. In this way, (by activating electric supply) device will be protected by following steps   Freezing Prevention Function: If temperature of water inside device reduces under 5C, pump and heating will operate for a while.

  • Page 43: Electric Diagram

    7. ELECTRIC DIAGRAM...

  • Page 44: Repair And Service

    8. REPAIR AND SERVICE During guarantee time we provide Free of Charge Service to our customers against defect of related materials and production. When you meet with problem while using, please contact with our after sales service department. Repairing and maintenance of the device by unauthorizedperson will make the device out of warranty.

  • Page 45: Troubleshooting

    9. TROUBLE SHOOTING Arıza Kodu Arıza Çözüm   Water pressure is not Set the water pressure between 1 and 2 enough bars  Water pressure switch  damage Call authorized service  Although you wait for a while if you still have seen the same code, call the authorized service.
  • Page 47 Şirketi Namık Kemal Mah. Marmara Cad. No:74 Ümraniye - İstanbul Tel. : +90 216 369 85 36-37 : +90 216 385 95 45 E-Mail : info@daxom.com Merkez Servis Namık Kemal Mah. Marmara Cad. No:74 Ümraniye - İstanbul Tel. : +90 216 360 71 21-22...
