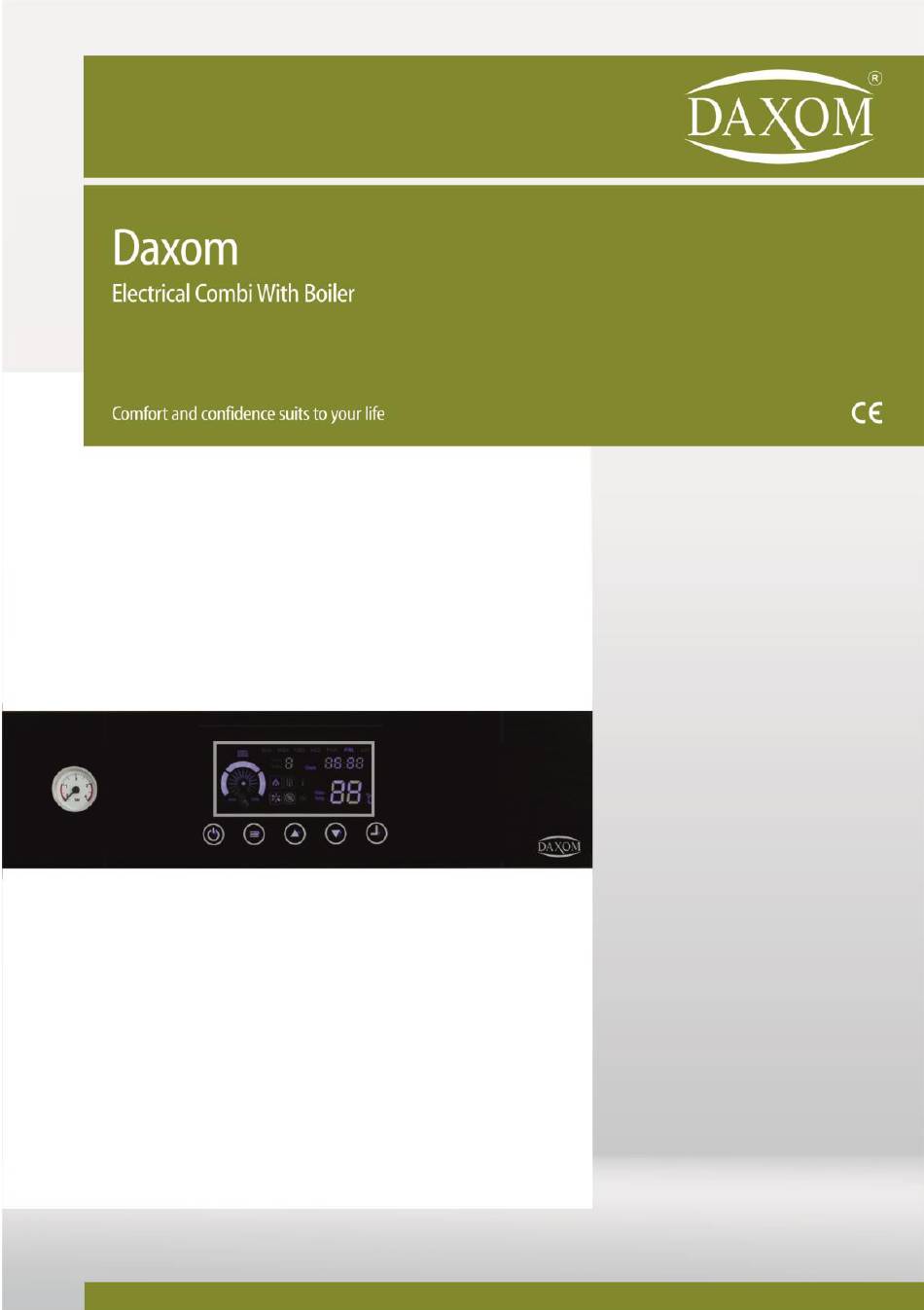

DAXOM UKDAX-10EBT Manual

Electrical combi with boiler
Hide thumbs Also See for UKDAX-10EBT:

Advertisement

Quick Links

1

Advertisement

loading

Summary of Contents for DAXOM UKDAX-10EBT

  • Page 2: Safety Warnings

    TO DAXOM USER In order to perform device’s function properly and for your safety, follow the instructions mentioned in the user manual of the device during the mounting and the usage of the device. In case of an unauthorized mounting and maintenance, the device will be void from warranty cover.
  • Page 3  This device must only be used as suitable for its purpose. Producer reject all kinds of liabilities that places or not places inside agreement for damage property or injury intended person or animals which causes because of consumer wrong using installation, setting and maintenance.
  • Page 4  Device cannot be used by children or disabled people without helper.  In case of having smoked or burning smell originating from device, make the  switch of the device OFF position and contact with authorized service agency.  Do not touch the device with wet hand or when surface of the device is wet.
  • Page 5: Configuration Of Device

    3. CONFIGURATION OF DEVICE...
  • Page 6: Technical Informations

    Technical Specifications Weight Without Boiler Model Power (kW) Water (Kg) Volume (l) 3~400 V 50 Hz Elektrikli Boiler With Tank UKDAX-10EBT UKDAX-12EBT UKDAX-16EBT UKDAX-18EBT UKDAX-20EBT UKDAX-24EBT 1~220 V 50 Hz Electrical Boiler With Tank UKDAX-6EDM UKDAX-10EDM...
  • Page 7: Installation Of Device

    5. INSTALLATION OF DEVICE Device installation must be done by authorized personnel.
  • Page 8 5.1. Installation Conditions and Safety Warnings Obey minimum distance that is anticipated for installation in order to reach the device for maintenance and repair.  For the right position of the device  Do not place on the cooker or similar cooking devices. ...
  • Page 9   When boiler pressure increases over 8 bar, drainage starts from safety valve.  Boiler max operating pressure is 6 bar. If you suspect that system pressure is over 6 bar, install pressure reducer to inlet of device or flat entrence ...
  • Page 10 5.2.1.1.Boiler Filling  After installment is completed, boiler is needed to fill. This process must be done by implementing following instructions.  Open device boiler inlet valve  Open any tap connected to device hot water outlet. (preferably nearest tap). Air inside boiler will be discharged from tap.
  • Page 11 5.2.2. Electric Connection Electrical installation must be done by authorized person according to device capacity and with suitable diameter cable. Electric of device must have suitable specification for for cut off device power and residual current device that has amper value and fuse separately.
  • Page 12 Fuse & Cable Power Phase & Current Residual Model Section (KW) Voltage(V) Drawn (A) Current (mm) Device (A) UKDAX- 3~400 3*15,2 3*20 5*2,5 10EBT UKDAX- 3~400 3*18,2 3*20 5*2,5 12EBT UKDAX- 3~400 3*24,3 3*25 16EBT UKDAX- 3~400 3*27,3 3*32 18EBT UKDAX- 3~400 3*30,4...
  • Page 13 6.DEVICE OPERATION AND USAGE 6.1. LCD Display Operating Condition and settings of the device can be follow from LCD panel. Radiator Operation Indicator Floor Heating Indicator Days Of Week Time programming. Can be made 7 pcs time programming Hour Capacity Indicator Ready to operation indicator Hot Water Heating Indicator Radiator Heating Indicator...
  • Page 14 6.2. Control Buttons Control of the device is done with buttons placed under the LCD Display. 6.3. Operation of Device First operation of the device must be absolutely done by authorized service. Our company is not responsible from damages and accidents which can be occured with intervention to device by unauthorized people.
  • Page 15   After all symbols on the LCD screen appear a few min, LCD screen will be as in the following     Hold 2-3 min to button for device ON   Device keeps last settings in its memory before OFF. When it is ON again, starts to operate with same settings.
  • Page 16 If boiler temperature is equal or over the set temperature , device operates for symbols are seen with “heating” and “shower”, radiator heating. expression.  When operation of the device is set as boiler heating before OFF position if boiler temperature is lower than set temperature, device operates for boiler symbols are seen with “heating”...
  • Page 17 6.4. Operation Parameter Setting 6.4.1. Day anf Hour Setting   Switch OFF the device    button 5-6 seconds. Days start to blink. Hold ...
  • Page 18   Days are set by pressing with one second intervals to buttons.    Press button hour blinks.   By pressing one second interval hour is set between 0 and 23...
  • Page 19   button , minute blinks. Press   By pressing button one second interval min set between 0 and   By pressing button or if not pressing any button for a 10 sec , exit from setting menu by saving settings. ...
  • Page 20 6.4.2. RADIATOR TEMPERATURE SETTING While symbols are seen at LCD Display, (when device is operating for C and 80 C by radiato system) radiator heating setting can be made between buttons. While radiator heating setting is made, “Water Temp” pressing expression fizzle out, setting temperature value starts to blink.
  • Page 21 6.4.3. Boiler Temperature Setting Boiler temperature setting ; symbols are seen at LCD Display. When symbol blinks. (when device operates for boiler heating ) setting can be made between 30 C ile 65 C by pressing If operation mode is set as boiler heating, it is possible to change boiler temperature at standby mode.
  • Page 22 While radiator heating is operating, for setting temperature of boiler ,it is needed to change operation mode of the device as boiler heating. At the end of this process, device must be taken to previous operation mode. ( Check 6.4.8) After 2 sec later setting completed, device operation temperature and “Water Temp”...
  • Page 23 6.4.4. Temperature Difference Setting Tempereature difference between Heating exit and Heating return of device can be set. While the device is in normal operation mode,   Enter setting menu by pressing 2-3 seconds.   Press the button one second interval until is seen.
  • Page 24   ΔT temperature difference is set with buttons.    Exit setting menu by pressing  6.4.5. Room Thermostad Setting It is possible to command device with room thermostad. In this way, device operates according to temperature of environment of room thermostad place. Room thermostad temperature must be done by authorized service while first operation of device is making.
  • Page 25 6.4.6. Operation Mode Setting Device can be set according to floor heating (low temperature) or radiator heating system. In this way, overheating is prevented especially for floor heating systems. While the device is operating at floor heating mode max 55 degrees, it can be set max 80 C at radiator heating mode.
  • Page 26    0” is chosen with symbols for floor heating mode.        “1” is chosen for radiator heating For floor heating systems because of heating mode is set from inside device by authorized service, in this menu “0” set can not be changed. ...
  • Page 27 Definitely temperature must not set over 55C for floor heating systems. In case of setting our companies is not responsible from damages or accidents that may occur. 6.4.7. Capacity Setting Device can operate with 3 different capacities. P1 mean is 1/3 capacity, P2 mean is 2/3 capacity, P3 mean is full capacity.
  • Page 28  With buttons, device capacity can be set as P1,P2 or P3. Indicator lights change according to chosen capacity. ...
  • Page 29   Exit menu by pressing button.  6.4.8. Operation Mode Setting Device can operate 3 different operation mode.   Radiator Operating Mode: Device only makes radiator heating. Water heating does not occur.   Boiler Operation Mode: Device only heats the boiler. This mode can also ...
  • Page 30   button one second interval until “heating” and / or “shower” blink. Press        button preferred mode is chosen. If “heating” is With  chosen device only operates for radiator heating.  If shower” is chosen device operates for boiler heating.
  • Page 31 If “heating” and “shower” are chosen at the same time device  operate for both radiator and boiler heating.   button. Exit setting menu by pressing  6.4.9. Time Programming Setting The device can be programmed daily and weekly for radiator heating. With 7 different time programs, the start and end times of the program, the operating temperature of the device during program and the ΔT temperature difference can be adjusted.
  • Page 32 position for heating. Time program can be active or inactive with button. When the time program is active, the current program number is displayed. While the device is in normal operating position;   Press button 2-3 second and enter setting menu. ...
  • Page 33   Press button.  buttons timing program is “ON” position. If it stays at With  “OFF” position, can not be entered to timing program.    button week day / days are chosen. By pressing ...
  • Page 34  With buttons, intended week day or days can be chosen. Week days are group as in the following.  All days can be chosen (SUN. MON. TUES. WED. THUR. FRİ. SAT.)      Weekends (SUN. SAT.) ...
  • Page 35   Days can be chosen one by one   button , program start hour blinks. Press    With buttons, program start hour is determined. ...
  • Page 36   Press button. Program start minute blink.   With buttons, program start minute is determined.    Press button. Program finish hour blink. ...
  • Page 37  With buttons program finish hour is determined   button. Program finish min blink. Press  With buttons program finish minute is determined. ...
  • Page 38   Press button. Temperature indicator blink.     Operation range of intendent program is chosen with buttons.   Press button. symbol and exit / return temperature difference  blink. ...
  • Page 39  Intendent ΔT (exit /return temperature difference ) is chosen with  buttons   . Other intetendent time program is chosen and repeat starting from 3 Press  step.  ...
  • Page 40   Setting all time programs are not necessary. You can set time programs between 1 and 7 as much as you want. Because of unadjusted programs remain   “OFF” position, they will not be active.  After programming is finished, when it is pressed to button or not pressing ...
  • Page 41 In this way, (by activating electric supply) device will be protected by following steps  Donma Koruma Fonksiyonu: Cihaz içerisindeki su sıcaklığının 5°C'nin altına  düşmesi durumunda, pompa ve ısıtma devreye girerek bir süre çalışır. Anti-frost döngüsü süresince ekranda işareti görülür. ...
  • Page 42: Electric Diagram

    7. ELECTRIC DIAGRAM...
  • Page 43: Repair And Service

    8. REPAIR AND SERVICE During guarantee time we provide Free of Charge Service to our customers against defect of related materials and production. When you meet with problem while using, please contact with our after sales service department. Repairing and maintenance of the device by unauthorizedperson will make the device out of warranty.
  • Page 44: Troubleshooting

    9. TROUBLE SHOOTING Failure Code Failure Solution   Water pressure is not Set the water pressure between 1 and 2 enough bars  Water pressure switch  damage Call authorized service  Although you wait for a while if you still have seen the same code, call the authorized service.
  • Page 45 PROBLEM SOLUTION WAYS REASON  No Electric  Residual Current Device or  Control if there is electric Fuse is Off or not. ● ●  Connection problem of  Control residual current power card with control device and fuse ...
  • Page 46 Şirketi Namık Kemal Mah. Marmara Cad. No:74 Ümraniye - İstanbul Tel. : +90 216 369 85 36-37 : +90 216 385 95 45 E-Mail : info@daxom.com Merkez Servis Namık Kemal Mah. Marmara Cad. No:74 Ümraniye - İstanbul Tel. : +90 216 360 71 21-22...
