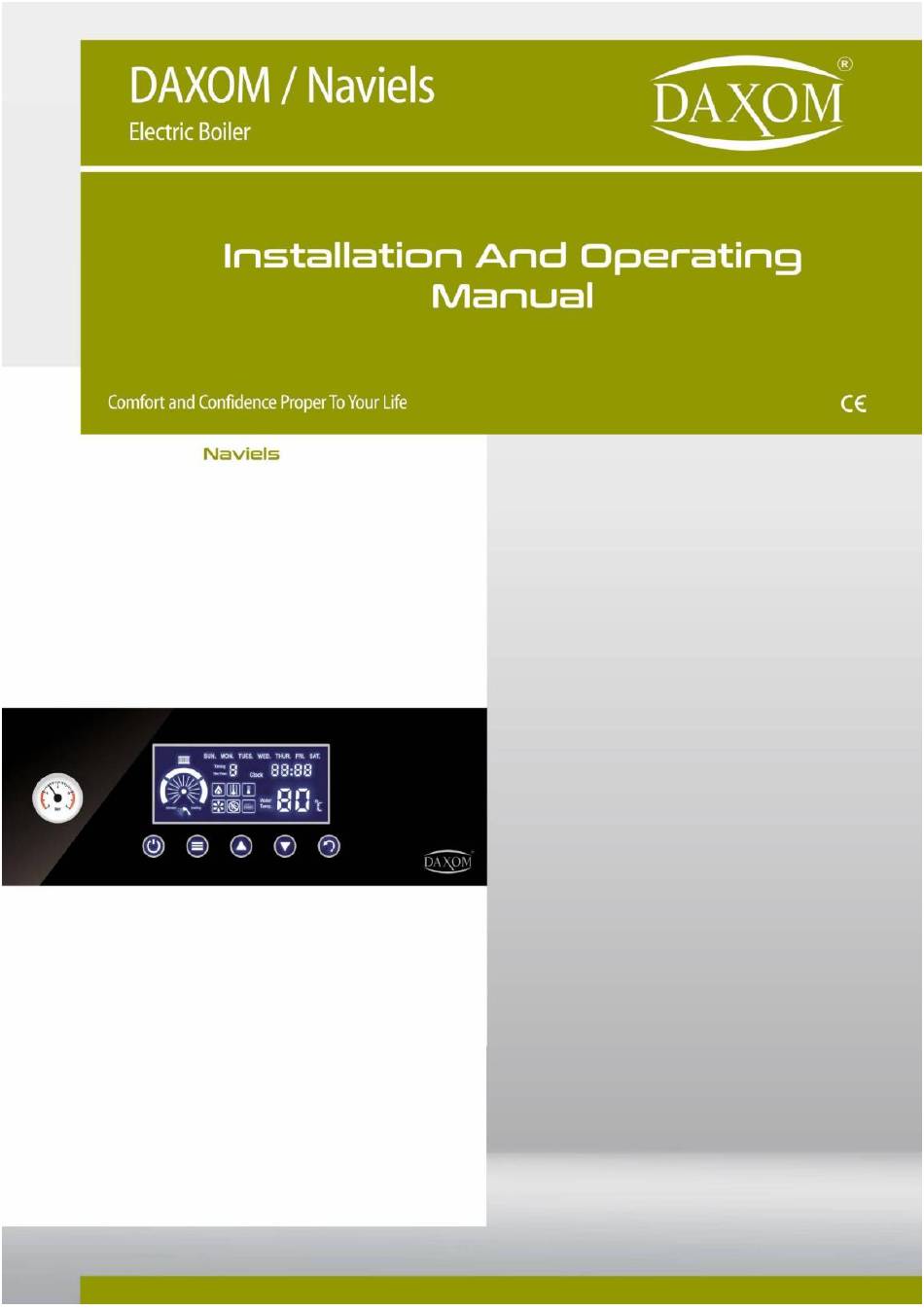

DAXOM Naviels Installation And Operating Manual

Electric boiler
Hide thumbs Also See for Naviels:

Advertisement

Quick Links

Download this manual
1

Advertisement

loading

Related Manuals for DAXOM Naviels

Summary of Contents for DAXOM Naviels

  • Page 2: Safety Warnings

    TO DAXOM USER In order to perform device’s function properly and for your safety follow the instructions mentioned in the user manual of the device during the mounting and the usage of the device. In case of an unauthorized mounting and maintenance, the device will be void from warranty cover.
  • Page 3  Safety valve outlet must be connected to suitable discharge system. All responsibilities are belong to user in case of any damage that occurs because of any intervention to safety valve.  Remove all packing wastes carefully without giving damage to human and environment health.

  • Page 4: Configuration Of Device

      2. SUGGESTIONS FOR ECONOMICALLY USED  Adjust ambient temperature according to your need. Increasing 1 degree of ambient temperature increases your energy consumption about %6.  Having homogeneous heating at parts according to intended use that is placed at the heating place, increases saving. ...

  • Page 6: Technical Informations

    TECHNICAL INFORMATIONS Power Dimensions Weight Model (kW) Y*G*D (mm) (Kg) 3~400 V 50 Hz Electrical Only Heating Without Pump and Expansion Tank UKDAX-60ETP 900*600*290 37,8 UKDAX-72ETP 900*600*290 37,8 UKDAX-80ETP 900*600*290 37,8 UKDAX-96ETP 900*600*290 37,8 Technical Informations Heating (Radiator) Min. Operation Pressure Max.

  • Page 7: Installation Of Device

    5. INSTALLATION OF DEVICE BOILER INSTALLATION MUST BE MADE BY AUTHORISED PERSONNEL 5.1. Installation Conditions and Safety Warnings Obey minimum distance that is anticipated for installation in order to reach the device for making maintenance and repair. For Correct Device Installation; ...
  • Page 8  Before the installation, wash the all system pipes must be washed carefully for removing any residual things that can give damage to operation of the device.  When heating system increases over 3 bar, water disposal starts from safety valve. ...
  • Page 9 5.2.1.1. Filling Of Boiler After installment is completed, boiler is needed to fill. This process must be done by implementing following instructions.   Open boiler inlet valve of installment.   Open any tap connected to device hot water outlet. (preferably nearest tap). Air inside boiler will be discharged from tap.
  • Page 10 Electric Boiler –Boiler and heating installation sample principle scheme...
  • Page 11 Electric Boiler – Heaitng-only installation sample principle scheme 5.2.2. Electric Connection Electrical installation must be done by authorized person according to device capacity and with suitable diameter cable. Electric of device must have suitable specification for for cut off device power and residual current device that has amper value and fuse separately.
  • Page 12 Make sure that cables are connected to correct places. . Loose cable connections can be caused to accidents. Cable sections that are calculated according to device capacity and cable length, residual current device and fuse amper values can be seen at the following table.
  • Page 13 6. DEVICE OPERATION AND USAGE 6.1. LCD Display Operating Condition and settings of the device can be follow from LCD panel. Radiator Operation Indicator Floor Heating Indicator Days of Week Time programming. Can be made 7 pcs time programming Hour Capacity Indicator Ready to Operation Indicator Hot Water Heating Indicator...
  • Page 14 6.2. Control Buttons Control of the device is done with buttons placed under the LCD Display. 6.3. Operation Of Device First operation of the device must be absolutely done by authorized service. Our company is not responsible from damages and accidents which can be occured with intervention to device by unauthorized people.
  • Page 15   Hold 2-3 min to button for device ON   . Device keeps last settings in its memory before OFF. When it is ON again, starts to operate with same settings.  When operation off device is set as boiler and radiator heating before OFF position if boiler temperature is lower than set temperature, device symbols are seen with “heating”...
  • Page 16  When operation of the device is set as boiler heating before OFF position if boiler temperature is lower than set temperature, device operates for boiler symbols are seen with “heating” and “shower”, heating  expressions symbol blinks. If boiler temperature is equal or more than the set temperature, device passes to standby position.
  • Page 17 6.4. Operation Parameter Setting 6.4.1. Day and Hour Setting   Switch Off the device.   button 5-6 seconds. Days start to blink. Hold ...
  • Page 18  Days are set by pressing with one second intervals to buttons.    button hour blinks. Press   By pressing one second interval hour is set between 0 and 23...
  • Page 19   button , minute blinks. Press    By pressing button one second interval min set between 0 and 60.  By pressing button or if not pressing any button for a 10 sec , exit from setting menu by saving settings. ...
  • Page 20 6.4.2. Radiator Temperature Setting While symbols are seen at LCD Display, (when device is operating for C and 80 C by radiato system) radiator heating setting can be made between buttons. While radiator heating setting is made, “Water Temp” pressing expression fizzle out, setting temperature value starts to blink.
  • Page 21 6.4.3.Boiler Temperature Setting Boiler temperature setting ; symbols are seen at LCD Display. When symbol blinks. (when device operates for boiler heating ) setting can be made between 30 C ile 65 C by pressing If operation mode is set as boiler heating, it is possible to change boiler temperature at standby mode.
  • Page 22 Boiler heating is always priority After device heats the boiler, it operates for radiator heating. Boiler heating starts again when decreases 7C from set temperature. 6.4.4.Temperature Difference Setting Tempereature difference between Heating exit and Heating return of device can be set.
  • Page 23  Press the button one second interval until is seen. Temperature  difference start to blink.   ΔT temperature difference is set with buttons.    tuşuna basılarak ayar menüsünden çıkılır.
  • Page 24 6.4.5. Room Thermostad Connection It is possible to command device with room thermostad. In this way, device operates according to temperature of environment of room thermostad place. Room thermostad temperature must be done by authorized service while first operation of device is making.
  • Page 25    0” is chosen with symbols for floor heating mode.         “1” is chosen for radiator heating For floor heating systems because of heating mode is set from inside device by authorized service, in this menu “0” set can not be changed.
  • Page 26   button. Exit setting menu by pressing  Definitely temperature must not set over 55C for floor heating systems. In case of setting our companies is not responsible from damages or accidents that may occur. 6.4.7. Capacity Setting Device can operate with 3 different capacities. P1 mean is 1/3 capacity, P2 mean is 2/3 capacity, P3 mean is full capacity.
  • Page 27   Press one second interval until is seen.  With buttons, device capacity can be set as P1,P2 or P3. Indicator lights change according to chosen capacity.
  • Page 28   Exit menu by pressing button. 6.4.8. Operation Mode Setting Device can operate 3 different operation mode.   Radiator Operating Mode: Device only makes radiator heating. boiler heating does not occur.   Boiler Operation Mode: Device only heats the boiler. This mode can also named as heater or summer mode.
  • Page 29 While device operates regularly  Enter setting menu by pressing button 2-3 seconds    button one second interval until “heating” and / or “shower” blink. Press ...
  • Page 30  button preferred mode is chosen. If “heating” is With  chosen device only operates for radiator heating.   If shower” is chosen device operates for boiler heating.  If “heating” and “shower” are chosen at the same time device operate for both radiator and boiler heating.
  • Page 31   button. Exit setting menu by pressing 6.4.9. Time Programing Setting The device can be programmed daily and weekly for radiator heating. With 7 different time programs, the start and end times of the program, the operating temperature of the device during program and the ΔT temperature difference can be adjusted.
  • Page 32  button one second interval until “Timing Time Phase” is seen. Press  Timing program blink.    By pressing buttons timing program is chosen between 1 and 7.    Press button.
  • Page 33  buttons timing program is “ON” position. If it stays at With  “OFF” position, can not be entered to timing program.    By pressing button week day / days are chosen.  With buttons, intended week day or days can be chosen. Week days are group as in the following.
  • Page 34   Weekends (SUN. SAT.)   Weekdays (MON. TUES. WED. THUR. FRI.)  Days can be chosen one by one...
  • Page 35   button , program start hour blinks. Press   With buttons, program start hour is determined.  Press button. Program start minute blink.
  • Page 36   With buttons, program start minute is determined.    Press button. Program finish hour blink.  With buttons program finish hour is determined...
  • Page 37   button. Program finish min blink. Press  With buttons program finish minute is determined.   Press button. Temperature indicator blink. ...
  • Page 38    Operation temperature of intendent program is chosen with buttons.  button. Press symbol and exit / return temperature difference adjustment  indicator blink.  Intendent ΔT (exit /return temperature difference )at selected program is  chosen with buttons ...
  • Page 39  . Other intetendent time program is chosen and repeat starting from 3 Press  step.   Setting all time programs are not necessary. You can set time programs between 1 and 7 as much as you want. Because of unadjusted programs remain ...
  • Page 40 6.5.Make The Device OFF 6.5.1. Temporary OFF For short time OFF periods, provide the device OFF by pressing button 2 or 3 seconds. By activating electric supply, device will be protected by following steps  If temperature of water inside device reduces under 5C, device operates fpr a ...
  • Page 41   Anti – Blockade Function: Pump and 3 way valve inside the device start to  operate for a short time once every 18 hrs.  6.5.2. LONG TERM OFF If you do not operate the device for a long time, make the circuit breaker OFF after pressing button 2or 3 seconds.

  • Page 42: Electrical Diagram

    7. ELECTRICAL DIAGRAM...

  • Page 43: Repair And Service

    REPAIR AND SERVICE During guarantee time of product we provide Free of Charge Service to users against defect of related materials and production about device. When you meet with problem while using, please contact with our after sales service department. Repairing and maintenance of the device by unauthorizedperson will make the device out of warranty.
  • Page 44 PROBLEM SOLUTION WAYS CAUSE  No Electric  Control if there is  Residual Current Device or electric or not Fuse is OFF ● ●  Control residual current  Connection Problem of device and fuse Power Card or Control Card ...
  • Page 45 Şirketi Namık Kemal Mah. Marmara Cad. No:74 Ümraniye - İstanbul Tel. : +90 216 369 85 36-37 : +90 216 385 95 45 E-Mail : info@daxom.com General Service Namık Kemal Mah. Marmara Cad. No:74 Ümraniye - İstanbul Tel. : +90 216 360 71 21-22...
