2.2

Hardware Features

• CC3200, SimpleLink Wi-Fi, Internet-on-a-chip solution with integrated MCU
• 40-pin LaunchPad standard that leverages the BoosterPack ecosystem
• FTDI-based JTAG emulation with serial port for flash programming
• Supports both 4-wire JTAG and 2-wire SWD
• Two buttons and three LEDs for user interaction
• Virtual COM port UART through USB on PC
• On-board chip antenna with U.FL for conducted testing
• On-board accelerometer and temperature sensor for out-of-box demo, with option to isolate them from
the inter-integrated circuit (I
• Micro USB connector for power and debug connections
• Headers for current measurement and external JTAG connection
• Bus-powered device with no external power required for Wi-Fi
• Long-range transmission with highly optimized antenna (200 m typical in open air with a 6-dBi antenna
AP)
• Can be powered externally, with 2xAA or 2xAAA alkaline batteries working down to 2.3 V typical
2.3

Connecting a BoosterPack Plug-in Module

A compatible BoosterPack module can be stacked on top of the LaunchPad kit using the 2x20 pin
connectors. Note that the connectors do not have a key to prevent the misalignment of the pins or reverse
connection. Ensure that VCC and 5V pins are aligned with the BoosterPack module header pins. On the
CC3200 LaunchPad kit, a small white triangle symbol is provided near Pin-1 (see
BoosterPack modules. This same marking, provided on compatible BoosterPack modules, must be
aligned before powering up the boards.

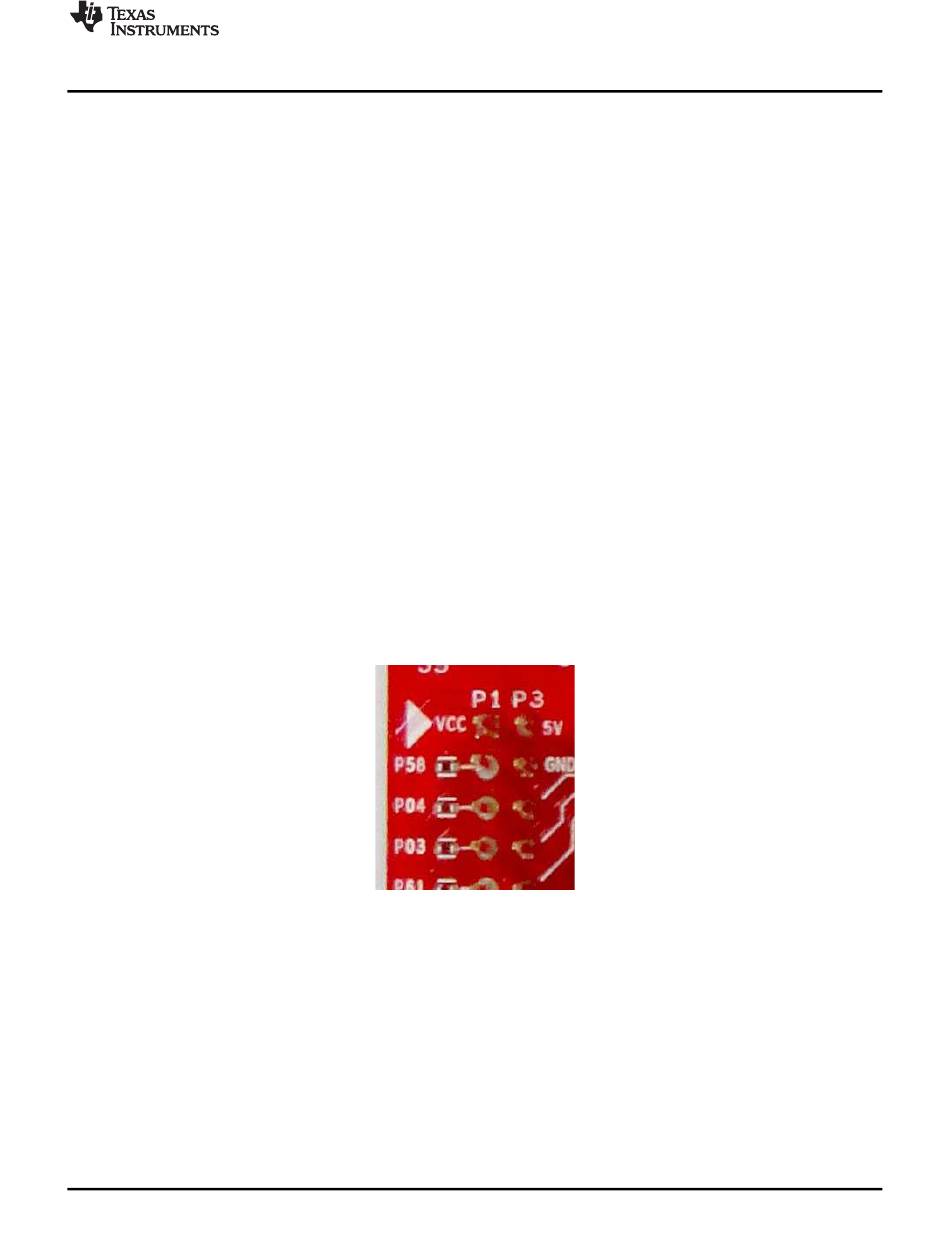

Figure 3. Pn-1 Marking on the LaunchPad Kit (White Triangle)
SWRU372C – June 2014 – Revised March 2020
Submit Documentation Feedback
2
C) bus
CC3200 SimpleLink™ Wi-Fi
Copyright © 2014–2020, Texas Instruments Incorporated
Hardware Description
Figure 3) to orient all
®
and Internet of Things Solution With MCU
LaunchPad™ Hardware
7
