Operation
WARNING!
Before taking any measurements, first connect the
alligator clip of this probe to earth ground and
make sure connection is electrically good.
1. Examine probe, make sure it is clean and dry. Dirt,
moisture and grease can provide a creep path for
voltage. If in doubt, wipe with a clean, dry, lint-free
cloth.
2. Make sure appropriate tip is installed in probe for
measurement. Use round needle tip for general
applications, flat tip for CRT's; hand tighten, do not use
pliers.
3. Connect alligator clip of your probe to earth ground-
electrical connection must be good.
4. Verify that measurement source is positive polarity DC.
Never use this probe for negative polarity DC or AC
measurements.
5. With your free hand in your back pocket, touch probe to
high voltage point and note reading at meter. Avoid
contacting any exposed metal parts.
TINSE0047S4 Rev.02

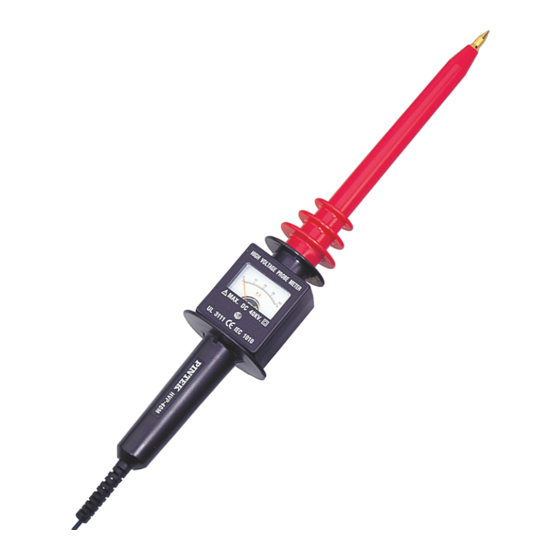

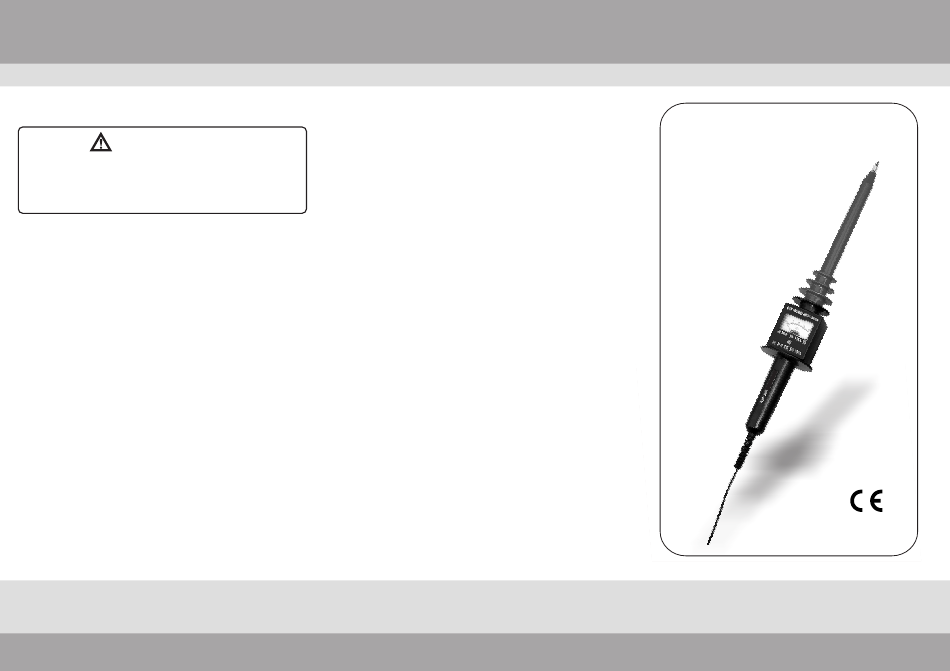

DC High Voltage Probe
Meter(Analog)
HVP-40M
EN 61010
INSTRUCTION MANUAL
