Summary of Contents for Pintek HVP-18HF

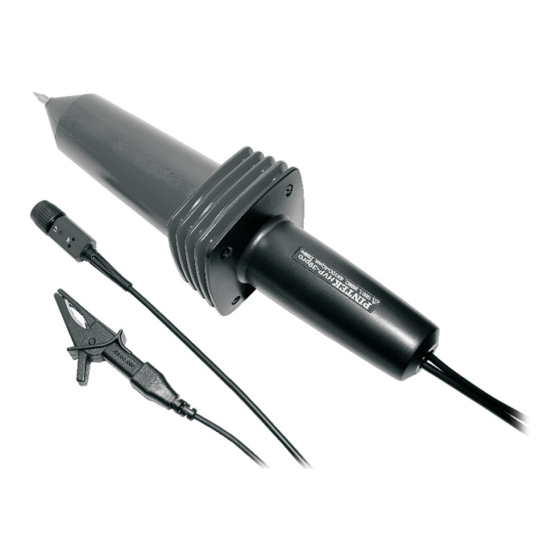

- Page 1 HIGH FREQUENCE HIGH VOLTAGE PROBE 高壓測試棒 INSTRUCTION MANUAL 使用說明書 For model: HVP-10R / HVP-18HF / HVP-28HF / HVP-39pro...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SPECIFICATIONS 2. SAFETY PRECAUTIONS OPERATION COMPENSATION ADJUSTMENT 4-1 HVP-10R 4-2 HVP-18HF/ HVP-28HF/ HVP-39pro WARNING CLEANING VOLTAGE DERATING CURVE ACCESSORIES 目 錄 規格 簡述與安全須知 操作說明 匹配電容調整 4-1 HVP-10R 4-2 HVP-18HF/ HVP-28HF/ HVP-39pro 注意事項 清潔 電壓測試臨界曲線 附件... - Page 3 HIGH FREQUENCE HIGH VOLTAGE PROBE INSTRUCTION MANUAL HVP-10R / HVP-18HF / HVP-28HF / HVP-39pro...
-
Page 4: Specifications
High Frequence High Voltage Probe Instruction Manual 1.SPECIFICATIONS HVP-10R HVP-18HF HVP-28HF HVP-39pro Model Division Ratio 100:1 1000:1 1000:1 1000:1 Read Out Input Resistance 100MΩ 200MΩ 500MΩ 900MΩ 2.0 PF 1.5 PF 1.7 PF 2.0 PF Input Capacitor Max. DC+AC peak 10KV CAT II 18KV CAT II 28KV CAT II 40KV CAT II Max. -
Page 5: Safety Precautions
High Frequence High Voltage Probe Instruction Manual 2.SAFETY PRECAUTIONS This high voltage probe only for the person who are trained, experienced, or otherwise qualified to recognize hazardous situations and who trained in the safety precautions that necessary to avoid possible injury when using such a device. Do not work alone when working with high voltage circuits. -
Page 6: Compensation Adjustment
High Frequence High Voltage Probe Instruction Manual 4.COMPENSATION ADJUSTMENT 4-1 HVP-10R: The following adjustment is required whenever the probe is transferred from one oscilloscope or input channel to another. Connect the probe to the oscilloscope, apply a 1KHz square wave to the probe tip and adjust the oscilloscope controls to display a few cycles of the waveform. -
Page 7: Hvp-18Hf/ Hvp-28Hf/ Hvp-39Pro
Hole 3. for Bandwidth Adjustment Hole 1. for 200Hz Square Wave Adjustment CAUTION! 1. The HVP-18HF/ HVP-28HF/ HVP-39pro adjust Hole 2 and Hole 3 are for the qualified engineer only. 2. The HVP-10R adjusts Hole 1 only. - Page 8 High Frequence High Voltage Probe Instruction Manual 3. Before adjusting Hole 2 and hole 3, please move off the plastic cover at first. 4. Use the adjust bar attached only. 5. When the measuring frequency was 40MHz up, or to adjust Bandwidth(Hole 3.), you must changed to the shortest earth lead and connected to the Alligator Clip(BP-276N-D) to obtained a best earth and thee best frequency response.
-
Page 9: Warning
High Frequence High Voltage Probe Instruction Manual 5.WARNING Do not attempt to take measurements from the sources when the chassis or return lead is not ground. The ground connection is critical to the safety operation of the probe. Failure to make this connection may result in personal injury or damage to the probe or voltmeter. -
Page 10: Voltage Derating Curve
7.VOLTAGE DERATING CURVE 7-1 HVP-10R (10KV:2MHz / 300V:100MHz / 100V:1GHz) 100KV 20KV 10KV 100V 10KHz 100KHz 1MHz 10MHz 100MHz 1GHz Frequency Fig.1 7-2 HVP-18HF (18KV:3MHz / 300V:150MHz / 100V:1GHz) 100KV 20KV (18KV) 10KV 100V 10KHz 100KHz 1MHz 10MHz 100MHz 1GHz Frequency Fig.2... - Page 11 High Frequence High Voltage Probe Instruction Manual 7-3 HVP-28HF (28KV:4MHz / 300V:200MHz / 100V:1GHz) 100KV (28KV) 20KV 10KV 100V 10KHz 100KHz 1MHz 10MHz 100MHz 1GHz Frequency Fig.3 7-4 HVP-39pro (40KV:5MHz / 300V:250MHz / 100V:1GHz) 100KV (40KV) 20KV 10KV 100V 10KHz 100KHz 1MHz 10MHz...
-
Page 12: Accessories
High Frequence High Voltage Probe Instruction Manual 8.ACCESSORIES Test CRT ROD-ADJ-002 for H.V. Adjust bar PX-503 Carry Box Oscillossope High Voltage Probe PL-10(Option) To Connect With Digital DMM. PL-10 MT-246 Ω Feed 10M Impedance... - Page 13 高壓測試 棒 使 用 說明書 HVP-10R / HVP-18HF / HVP-28HF / HVP-39pro...
-
Page 14: 規格
High Frequence High Voltage Probe Instruction Manual 規 格 HVP-10R HVP-18HF HVP-28HF HVP-39pro 型號 衰減 比 例 100:1 1000:1 1000:1 1000:1 讀出 功 能 輸入 阻 抗 100MΩ 200MΩ 500MΩ 900MΩ 輸入 電 容 2.0 PF 1.5 PF 1.7 PF 2.0 PF... -
Page 15: 簡述與安全須知
High Frequence High Voltage Probe Instruction Manual 簡 述與 安全 須知 感 謝 您 購 買HVP系 列 高 壓 測 試 棒; 高 壓 測 試 棒 是 為 防 止 測 試 人 員 在 做 高 壓 測 量 工 作 時 ， 受 到 意 外 電 擊 ， 而 設 計 的 一... -
Page 16: 匹配電容調整
High Frequence High Voltage Probe Instruction Manual 匹 配 電 容調 整 4-1 HVP-10R: 每 當 測 試 棒 更 換 示 波 器 或 更 換 通 道 時,請 先 進 行 下 列 調 整 步 驟: 連 接 測 試 棒 至 示 波 器, 輸 入1KHz方 波 至 測 試 棒 測 試 端, 然 後... -
Page 17: Hvp-18Hf/ Hvp-28Hf/ Hvp-39Pro
High Frequence High Voltage Probe Instruction Manual 4-2 HVP-18HF/ HVP-28HF/ HVP-39pro: 連 接 測 試 棒 至 示 波 器, 輸 入200Hz方 波 至 測 試 棒 測 試 端, 然 後 調 整 示 波 器 控 制 項 進 而 顯 示 一 些 波 形, 並 針 對 方 波 波... - Page 18 High Frequence High Voltage Probe Instruction Manual (5)當 待 測 高 壓 的 頻 率 超 過40MHz時, 為 了 取 得 更 好 的 頻 率 響 應 與 更 佳 的 接 地, 請 將 長 地 線 更 換 為 鱷 魚 夾(BP-276N- D)。...
-
Page 19: 注意事項
High Frequence High Voltage Probe Instruction Manual 注 意 事 項 請 勿 試 圖 把 測試 設備 的接 地線 從 地面 接線 柱 上 移 開 。 接 地 連 接 是 測 試 棒 安 全 操 作 的 一 個 關 鍵 點 。 當 高 壓 測 量 的... -
Page 20: 電壓測試臨界曲線
電 壓測 試 臨 界曲 線 7-1 HVP-10R (10KV:2MHz / 300V:100MHz / 100V:1GHz) 100KV 20KV 10KV 100V 10KHz 100KHz 1MHz 10MHz 100MHz 1GHz Frequency Fig.1 7-2 HVP-18HF (18KV:3MHz / 300V:150MHz / 100V:1GHz) 100KV 20KV (18KV) 10KV 100V 10KHz 100KHz 1MHz 10MHz 100MHz 1GHz Frequency Fig.2... - Page 21 High Frequence High Voltage Probe Instruction Manual 7-3 HVP-28HF (28KV:4MHz / 300V:200MHz / 100V:1GHz) 100KV (28KV) 20KV 10KV 100V 10KHz 100KHz 1MHz 10MHz 100MHz 1GHz Frequency Fig.3 7-4 HVP-39pro (40KV:5MHz / 300V:250MHz / 100V:1GHz) 100KV (40KV) 20KV 10KV 100V 10KHz 100KHz 1MHz 10MHz...
-
Page 22: 附件
High Frequence High Voltage Probe Instruction Manual 附 件 ROD-ADJ-002 測試影像管用附件 本機專用調整棒 攜帶箱 PX-503 Oscillossope High Voltage Probe PL-10(Option) (選購) 連接數字電錶專用 PL-10 MT-246 Ω Feed 10M Impedance... - Page 24 TINSE0062S4 Rev.01.2 Made In Taiwan...
