CONTENTS Getting Started Important Safety Instructions Polarization Instructions Description of the Vacuum Assembling the Vacuum Operation Battery Charging Battery Life Display Reclining the Handle On/Off Switch Edge Cleaning Automatic Carpet Height Adjustment Bare Floor Cleaning Vacuuming Under Furniture Maintenance and Care Replacing the Vacuum Bag Removing and Reinstalling the Battery Recycling the Battery...
10201026 Winkind. (C223-2000) over cord. Keep cord away from heated surfaces. • Batteries must be disposed of responsibly. Contact a Titan Service • Do not unplug charger by pulling on Center for information on battery cord. To unplug charger, grasp the plug, disposal.
POLARIZATION INSTRUCTIONS Power Cord, 2-Wire Polarized Cord To reduce the risk of electric shock, the charger is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug.

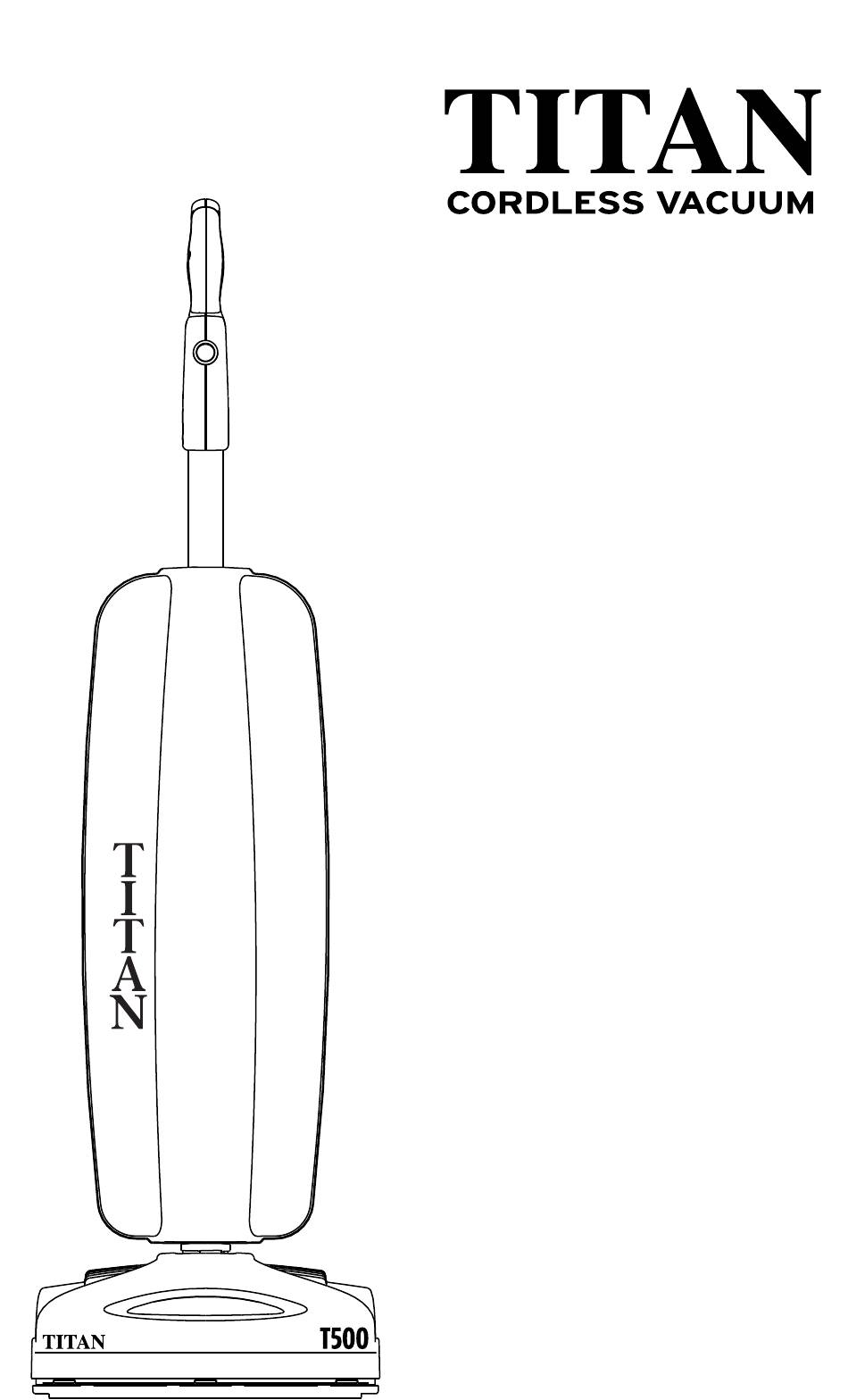

DESCRIPTION OF THE VACUUM 1 Ergonomic Handle TACONY CORPO MATERIAL FINISH 2 On/Off Power Switch 1760 Gilsinn Lane, Fenton, MO 63 DRAWN DATE 3 Bag Compartment UNLESS OTHERWISE S 4 Vacuum Nozzle ISSUED DATE .5 mm RADII X.X .5mm X.XX .25mm X.XX .25mm...
ASSEMBLING THE VACUUM Attaching the Handle to the Vacuum NOTE: Do not turn on the vacuum until it is completely assembled. The vacuum cleaner and the handle are packed separately and require assembly. • Remove the handle bracket by removing the two screws (Fig. 1). •...
OPERATION This vacuum is intended for household use only. Battery Charging • The battery is partially charged and will run for a short time. • The battery is located on the back of the vacuum. It can be charged while installed on the vacuum, or the battery can be removed from the vacuum and Fig.
OPERATION On/Off Switch • Turn the switch on to use the vacuum. If the vacuum doesn’t turn on, check that the battery is charged (see page 6). • Always unplug the charger from the charge point before use. Edge Cleaning The edge cleaning feature provides improved cleaning near walls and stationary furniture.
OPERATION Bare Floor Cleaning Your vacuum is equipped with a squeegee on the bottom of the vacuum to improve its effectiveness in cleaning bare floors (Fig. 1). Vacuuming Under Furniture Your vacuum will lay flat on the floor for effective cleaning under beds and tables. Fig.
MAINTENANCE AND CARE Replacing the Vacuum Bag NOTE: Turn the vacuum off and unplug the charger from the charge point before changing the bag. • Unzip the bag compartment. • Remove the used vacuum bag by pulling the green bag collar tab away from the vacuum (Fig.
Push the battery in until it clicks (Fig. 2). Recycling the Battery Contact a Titan Service Center for information on battery disposal. To find battery recycle pickup sites near you, please visit www.call2recycle.org.
MAINTENANCE AND CARE Removing and Reinstalling the Bottom Plate WARNING! To reduce the risk of electrical shock or injury from moving parts, turn the vacuum off and unplug the charger from the charge point before servicing or cleaning the vacuum. To Remove the Bottom Plate: •...
MAINTENANCE AND CARE Replacing the Vacuum Belt WARNING! To reduce the risk of electrical shock or injury from moving parts, turn the vacuum off and unplug the charger from the charge point before servicing or cleaning the vacuum. NOTE: To ensure maximum cleaning efficiency, the belt should be checked regularly to be sure it is in good condition.
Service Center for help. Annual Checkup To keep your vacuum in peak operating condition, it is recommended you bring it to a Titan Service Center for an annual checkup. They will conduct a comprehensive examination to ensure your vacuum is in top...
PROBLEM CHECK POINT POSSIBLE SOLUTION Battery is fully discharged Charge battery (page 6) Vacuum won’t turn on Take to a Titan Service Center Needs service Vacuum bag full Install new bag (page 9) Vacuum won’t pick up or low Broken belt...
How to Get Service: Warranty service can only be obtained by presenting the vacuum to a Titan Service Center. A proof of purchase and product serial number will be required before service is rendered. To locate your nearest service center, please call 1-844-202-9924 or visit www.titanvacs.com.
