INFOSEC UPS SYSTEM M5T Series User Manual page 91

Output Input Input Bypass

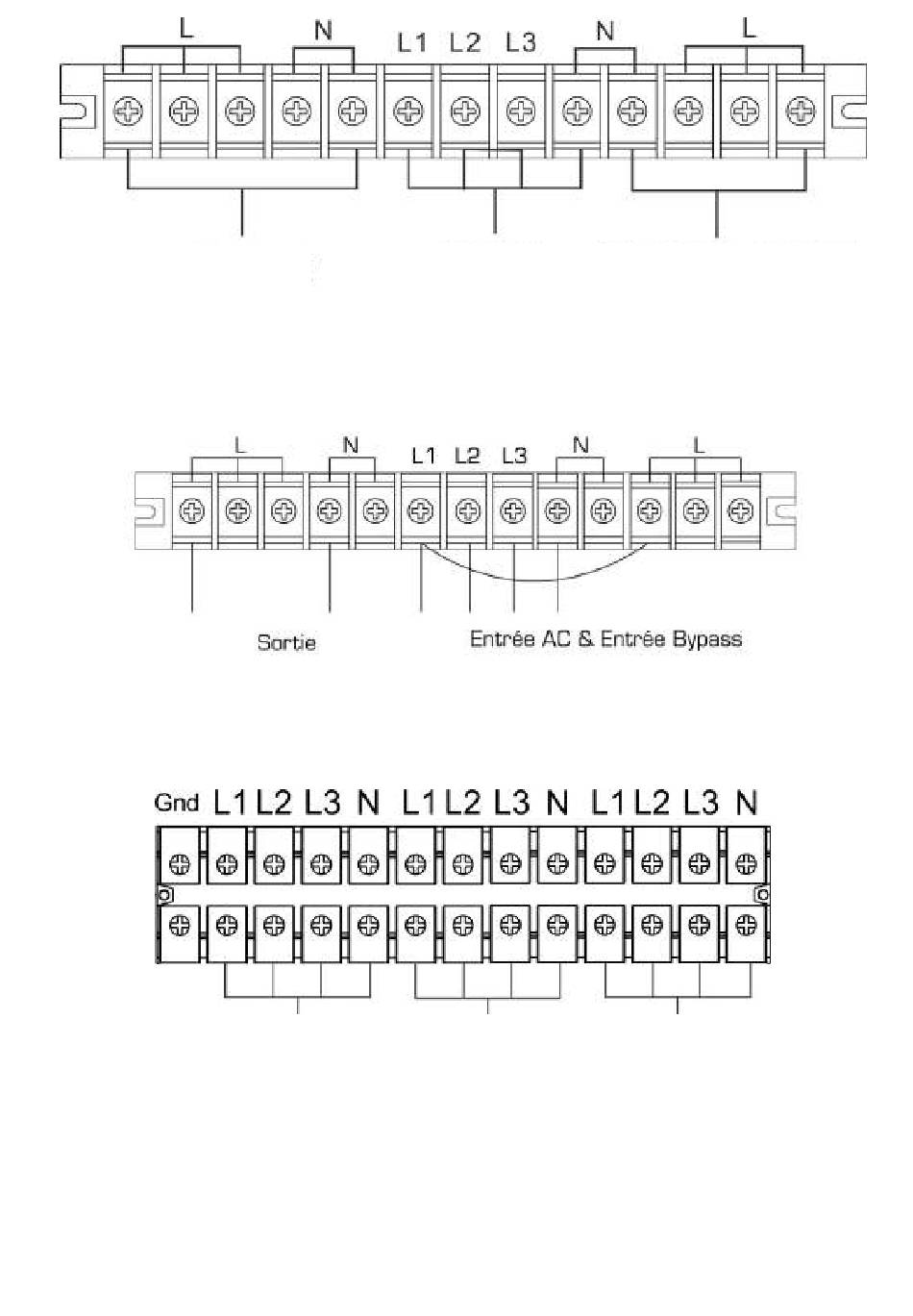

a) Terminal block wiring diagram for M5T 10/15/20k (WOB) HV (3/1)
M5T 10k (WOB) LV (3/1) – Dual input
b) Terminal block wiring diagram for M5T 10/15/20k (WOB) HV (3/1)
M5T 10k (WOB) LV (3/1) – Common input
Output Input Input Bypass
c) Terminal block wiring diagram for M5T 30/40k (WOB) HV
M5T 15/20k (WOB) LV – Dual input
