Bypass FRE Range: Set the bypass frequency range.
The acceptable bypass frequency range from 46Hz to 54Hz when UPS is 50Hz system
and from 56Hz to 64Hz when UPS is 60Hz system.
⚫ ECO mode: Enable/Disable ECO mode. Default setting is "Disable".
⚫
ECO VOL Range: Set the ECO voltage range.
◼ L: Low voltage point for ECO mode. The setting range is from (Rated output voltage –
5V) to (Rated output voltage - 11V). "Rated output voltage – 5V" is default setting.
◼ H: High voltage point for ECO mode. The setting range is from (Rated output voltage
+ 5V) to (Rated output voltage + 11V). "Rated output voltage + 5V" is default setting.
⚫
ECO FRE Range: Set the ECO frequency range. The setting range is from 48Hz to 52Hz
when the UPS is 50Hz system and from 58Hz to 62Hz when the UPS is 60Hz system.
BATTERY
➢
Battery Warning VOL:
◼
HIGH: High battery warning voltage. The setting range is 14.0V ~ 15.0V. 14.4V is
default setting.
◼
LOW: Low battery warning voltage. The setting range is 10.1V ~ 14.0V. 11.4V is
default setting. This parameter setting is related to "Shutdown Voltage" setting. The
setting value should be higher than "Shutdown Voltage" setting.
➢
Shutdown VOL: If battery voltage is lower than this point in battery mode, UPS will
automatically shut down. The setting range is 10.0V ~ 12.0V. 10.7V is default setting.
(This setting is only available for long-run model)
➢
BATT Age: Set up battery age.
➢
BATT Parameters:
◼
BATT AH: setting battery capacity.
◼
BATT Groups: setting battery groups.
INFOSEC UPS SYSTEM – 15, rue du Moulin – 44880 Sautron, France – www.infosec-ups.com
122
Hotline : +33 (0)2 40 76 15 82 – Fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 02 22 AA 59 203 08

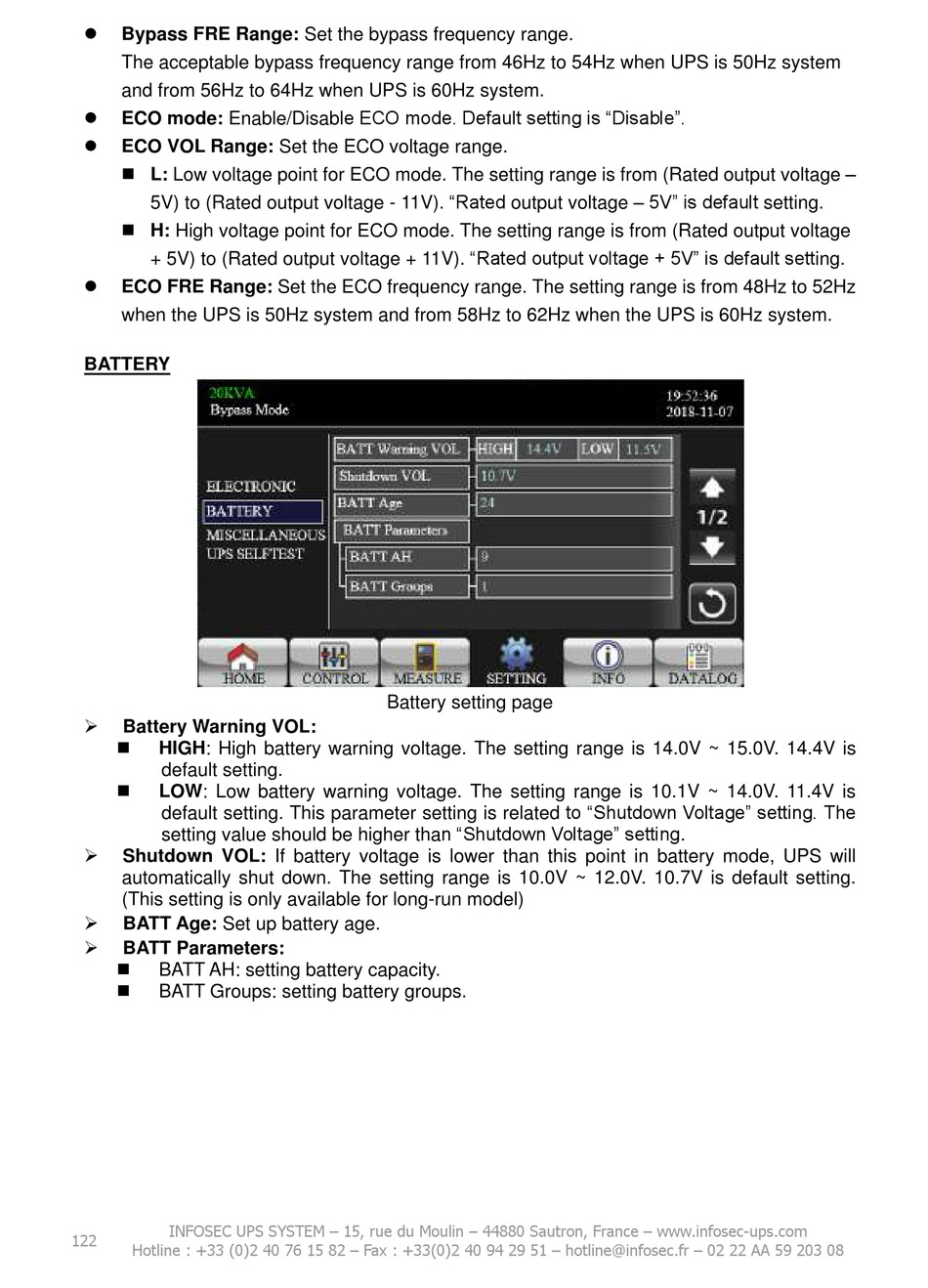

Battery setting page
