INFOSEC UPS SYSTEM M5T Series User Manual page 118

➢

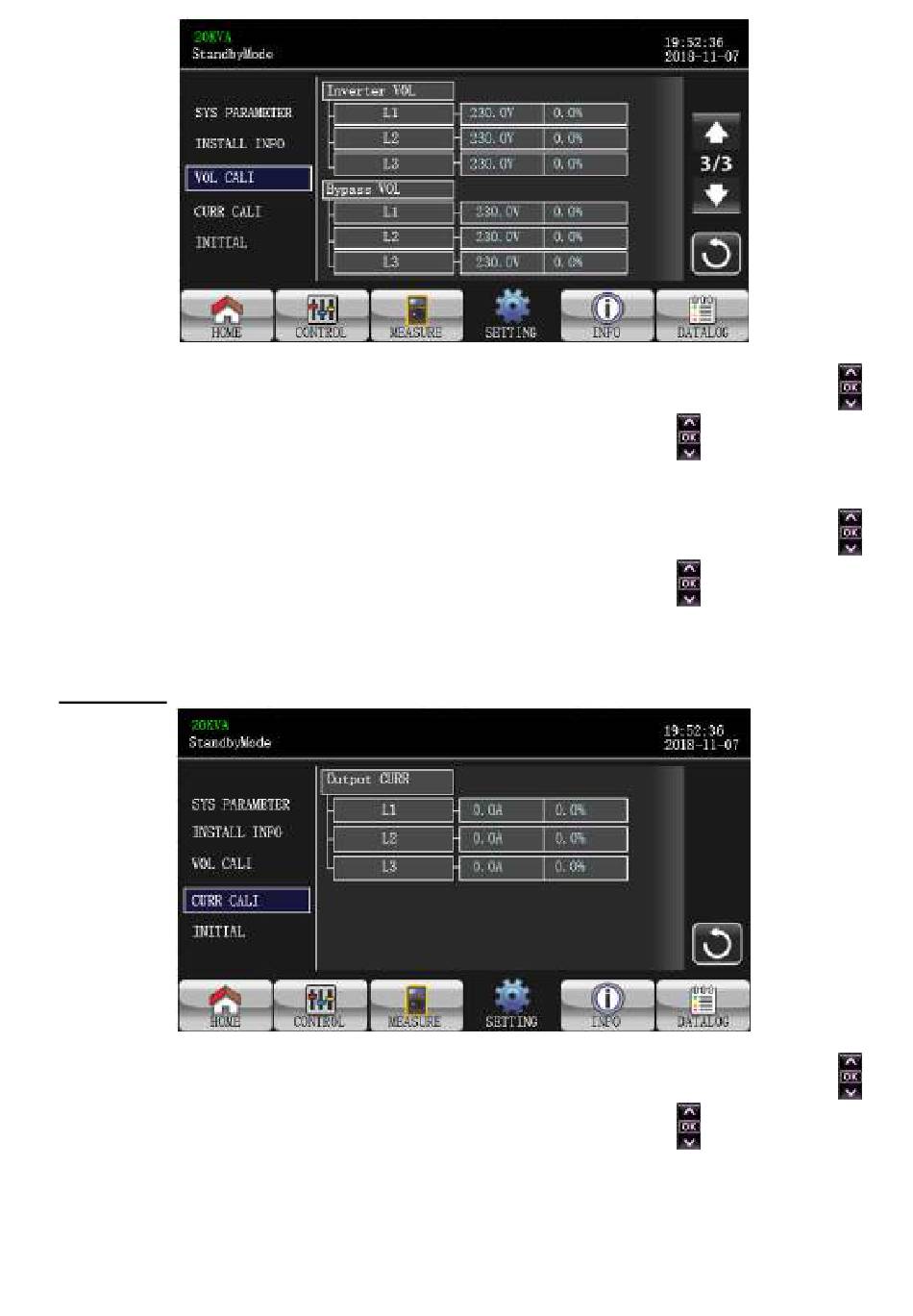

Inverter VOL: Inverter voltage calibration. Click value columns and it will pop up
Then, each click is 0.1% no matter it's pressing up or down key
increase 0.1% and press "down" key to decrease 0.1%. Press "OK" key to confirm the
modification.
➢
Bypass VOL: Bypass voltage calibration. Click value columns and it will pop up
Then, each click is 0.1% no matter it's pressing up or down key
increase 0.1% and press "down" key to decrease 0.1%. Press "OK" key to confirm the
modification.
CURR CALI
➢
Output CURR: Output current calibration. Click value columns and it will pop up
Then, each click is 0.1% no matter it's pressing up or down key
increase 0.1% and press "down" key to decrease 0.1%. Press "OK" key to confirm the
modification.
INFOSEC UPS SYSTEM – 15, rue du Moulin – 44880 Sautron, France – www.infosec-ups.com
117
Hotline : +33 (0)2 40 76 15 82 – Fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 02 22 AA 59 203 08
VOL CALI Page 3
CURR CALI Page
.
. Press "up" key to
.
. Press "up" key to
.
. Press "up" key to
